Specifications
| Display | 128 * 64 LCD, Chinese display |
| Measurement range | 0.00~20.00mg/L |
| Accuracy | ±1.5%FS |
| Resolution | 0.01mg/L |
| Repeatability | ≤1% |
| Stability | ±1%FS/4h |
| Storage temperature | -25~55℃ |
| Response time | T90<5min (25℃) |
| Temperature sensor | Pt1000 |
| Temperature compensation range | 0~60℃ |
| Water sample temperature | 5~45℃ |
| Environmental temperature | 5~45℃ |
| Working Relative Humidity | ≤ 90% RH (non-condensing) |
| Power Supply | AC(220±22) V (50±1)Hz |
| power consumption | ≤ 1W |
| Dimensions | 80*30*175mm |
| Weight | 0.26kg |
Packing list

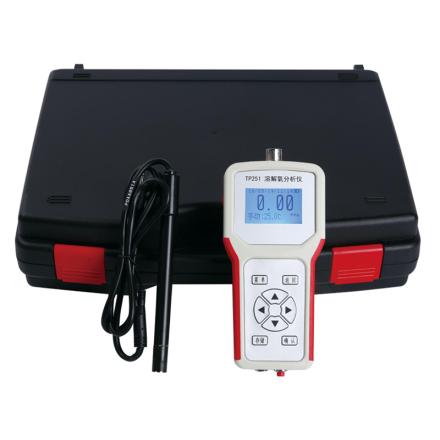

Host X1, dissolved Oxygen composite electrode X1, dissolved Oxygen electrode filler X1, electrode film head X1, lithium ion rechargeable battery X1, power adapter X1, black plastic Encasement box X1
After-sales instructions
Warranty days: 365 days
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/17036/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
