TIMEPOWER TP302 (50L) ultra-pure water machine, purified water machine

TIMEPOWER TP302 (50L) Ultrapure Water System is an experimental ultrapurified water machine with a water production capacity of 50L, with a TOC content of less than 10ppb. The TP302 Ultrapure Water System is suitable for laboratory water such as meteorological chromatograph, ion chromatograph, and liquid chromatograph.
Certificate
Contact
Details SPEC CAT

TIMEPOWER TP302（50L） Ultrapure water machineSPEC

TIMEPOWER TP302（50L） Ultrapure water machineDetails

TIMEPOWER TP302（50L） Ultrapure water machinePacking list

SKU
NB017046
Ultrapurification Unit Capacity
50L
Absorption
≤ 0.001 (254nm.1cm optical path)
Soluble Silicon (SiO2)
＜0.01ppm
Particle (greater than 0.22 μm) content
＜1/ml
TOC content
<10ppb
UV UV digestion instrument
254nm
End point microfilter
0.22μm
Metal cation ppb
Fe (iron) < 0.002, Cu (copper) < 0.002, Al (aluminum) < 0.003, Ni (nickel) < 0.001, Zn (zinc) < 0.005, Cr (chromium) < 0.001, Na (sodium) < 0.02, K (potassium) < 0.02
Cation ppb
Cl- (chlorine) < 0.01, NO2- (nitrite) < 0.02, NO3 (nitrate) < 0.02, SO4 (sulfate) < 0.01
Heavy metals ions
＜0.1ppb
Water outlet one
The conductivity of grade III pure water shows 0-10us/cm, which meets the grade III water standard of Chinese GB6682 and ASTM CAP NCCLS standard; the ion removal rate is > 99%
Water outlet two
Class I ultrapure water, the specific resistance reaches 18.25 MΩ .cm@25 ℃; in line with China's GB6682 Class I water standard and ASTM CAP NCCLS standard
Power Supply
220V/50Hz
Voltage Fluctuation
±10%
Host size
600*470*520mm
Operating Environment
The water temperature is 5~ 40 ℃, and the northern region needs an antifreeze room.
Weight
40kg
TP302（50L）
Ultrapure water machine

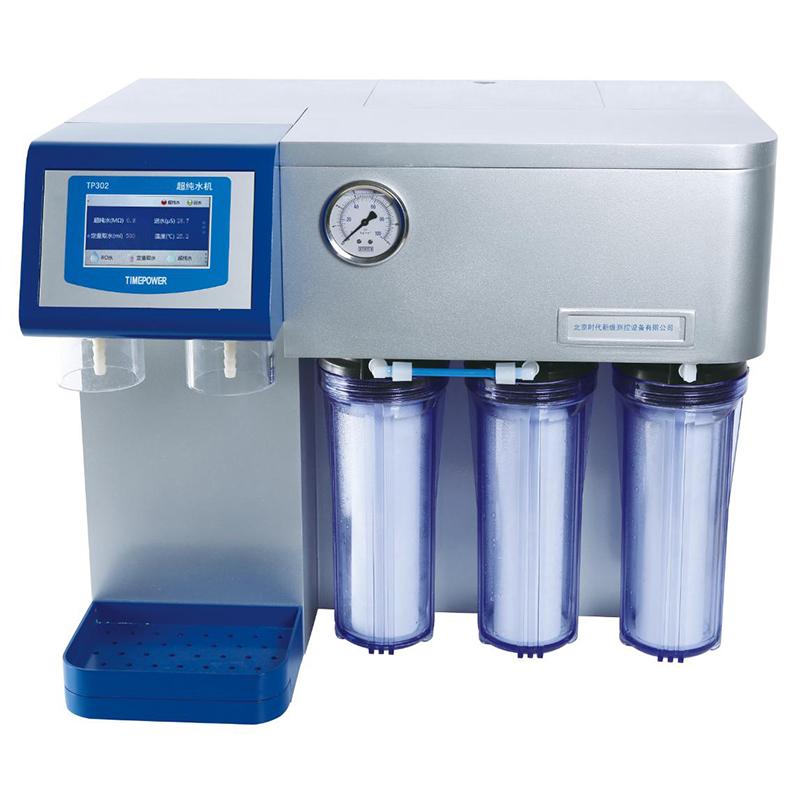

TIMEPOWER TP302 (50L) ultra-pure water machine, purified water machine Picture

Introduction

The high-purity water produced by this series of laboratory Ultrapure Water Systems meets the requirements of ion chromatography; gas chromatography; trace metal analysis; atomic absorption/atomic emission spectroscopy; mass spectrometry analyzers; buffer solution; Preparation of high-purity standard solution; Quantitative analysis of trace elements; HPLC effective liquid chromatography; toxicity testing, etc.

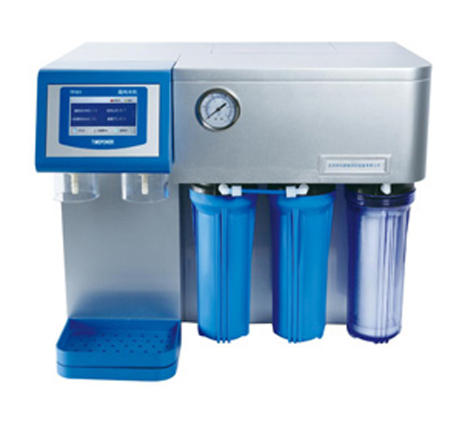

Times Xinwei TP302(50L) Ultrapure Water System

Features

  • Color LCD display, corner touch keypad control, boot self-test

  • The system has a built-in timed flushing program and IC microcomputer intelligent control

  • Built-in timed ultrapure water automatic circulation program to maintain ultrapure water quality.

  • On-line monitoring of water quality ratio resistance, fully realizing man-machine dialogue

  • Ultrapure water is ready to use and can be taken in quantities.

  • The United States ultrapure water special transmission DC pump, ultrapure water intake speed is fast

FAQ
QMeet the requirements of GB/T9779 ultra-pure water machine
A TP302 (50L) ultra-pure water machine, please refer to it.
