Brand：DECO
Model：DECO-PBM-V-4L

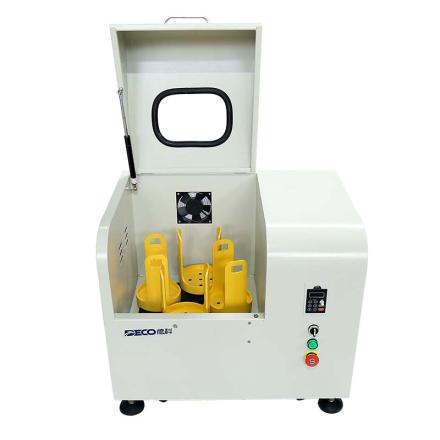

Name：Super Bass Heavy Duty Low Shock Planetary Ball mill
Specifications
| application | Crushing, mixing, homogenization, colloidal grinding, mechanical alloys, etc |
| Application | Pharmaceuticals, Food, Chemicals, Synthetic Materials, Electronics, Engineering, Metallurgy, Glass, Pottery and porcelain, Biology, etc |
| Sample characteristics | Soft/hard material, dry/moisturizing material, brittle material, fiber material, tack material |
| Processing principle | Friction, impact force |
| Maximum feed size | Soil material ≤ 10mm, Miscellaneous material ≤ 3mm |
| Minimum discharge particle size | 0.1µm |
| Maximum throughput | 4000ml |
| station number | 4pcs |
| speed ratio | 1:2 |
| Ball mill tank speed | 850rpm |
| Planetary disk diameter | 360mm |
| Film thickness | 10mm |
| Type of ball mill | Conventional type, vacuum type |
| Ball mill material | Stainless steel/nylon/polyurethane/PTFE/polypropylene/polymer polyethylene/agate/oxidation aluminum/zirconia |
| Grinding tank size | 1000ML |
| Grinding material | Stainless steel, aluminum oxidation, zirconia, agate, cemented carbide |
| Grinding ball size | 3mm 5mm 8mm 10mm 15mm 20mm 25mm 30mm |
| Function Mode | Forward operation, reverse operation, alternating operation, intermittent operation, Timer grinding, pause, stepless speed regulation, time can be set |
| Ground time setting | Digital display, 00:00:01 to 99:59:59 |
| Intermittent run time setting | Digital display, 00:01:00~99:59:59 |
| Intermittent run time setting | Digital display, 00:00:01~ 99:59:59 |
| driver | Frequency converter, three-phase AC motor |
| Drive power | 0.75kw |
| Power | 110-120V / 220-240V |
| frequency | 50-60Hz |
| Power Connector | single phase |
| Dimensions | 830*480*550mm |
| Net Weight | 120kg |
| Gross Weight | 140kg |
| Protection class | IP53 |
| standard | CE |
Packing list
completeness-built unit X1, pressure rod X1, tool X1, lubricant X1, manual X1, warranty card X1, certificate X1
After-sales instructions
Warranty days: 365 days
1. The warranty period of the product is one year from the date of receipt.
2. Warranty method: repair the original product.
3. Time limit for the completion of warranty service: If the original product is repaired, the customer will be replied to the product maintenance within 3 working days from the date of receipt of the faulty product. If it is repaired, the repair will be completed and sent out within 7 working days from the date of receipt of the faulty product;
4. The above product quality warranty problems are not caused by human factors.
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/17055/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
