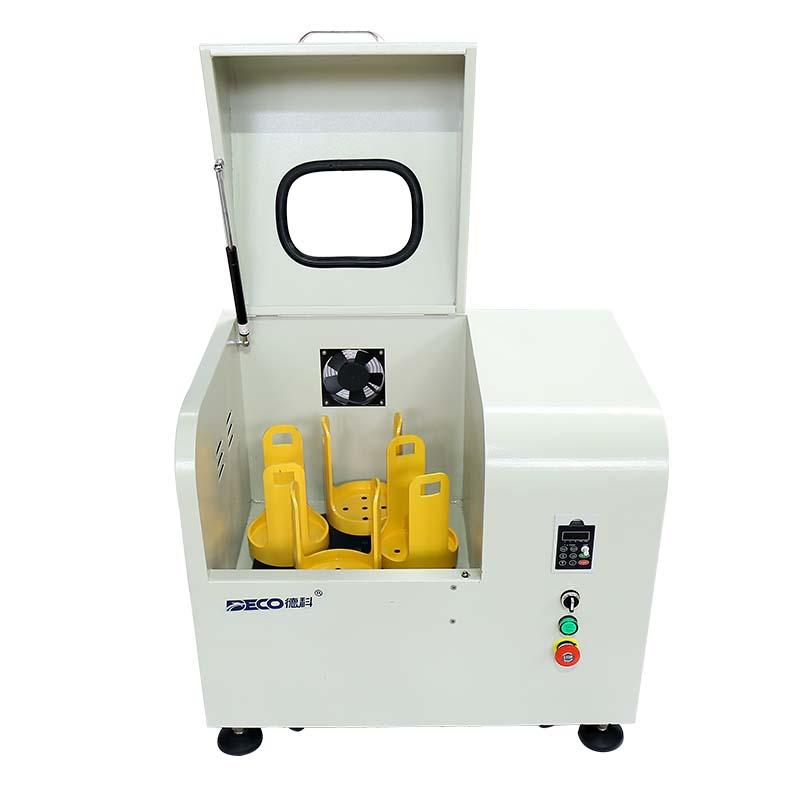

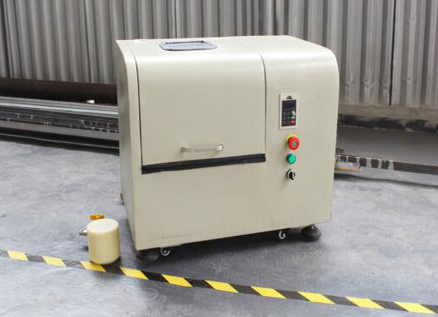

DECO Instruments DECO-PBM-V-6L Ultra Bass Heavy Duty Low Shock Planetary Ball mill

DECO-PBM-V-6L

Super Bass Heavy Duty Low Shock Planetary Ball mill

Introduction

As an upgraded product of Deco's light vertical planetary ball mill, "DECO-PBM-V-2L" reformed and strengthened components, frame, chassis, casing, footing and other components during production, which not only The weight of the equipment has been greatly increased by more than 60%, and the stability, durability, safety and comfort have also been greatly improved. DECO Deco super bass heavy-duty planetary ball mill has low vibration, low noise, and fine discharge during the grinding process. The system and noise reduction technology effectively reduce the vibration, noise, and wear of the planetary ball mill, improve the fatigue resistance and service life of the planetary ball mill, and bring you comfort while reducing maintenance costs and reducing failures. DECO super bass heavy-duty planetary ball mill is divided into three specifications: 1L, 2L, 4L and 6L according to the amount of grinding;

Principle

The 4 ball milling tanks of the "DECO-PBM-V-2L" planetary ball mill are located at the symmetrical position of the center point of the planetary disc. The speed ratio with the ball mill tank is 1:2. The ball milling medium in the ball milling pot is affected by the double superposition of strong rotation force and deflection force when it moves together with the ball milling pot. The ball milling pot and the ball milling medium produce strong friction and impact force due to the difference in moving speed, and generate huge energy. , it is the use of this huge energy that makes the planetary ball mill have a good effect on material crushing.

In order to ensure the balance during the operation of the instrument and avoid the unfavorable vibration of the planetary ball mill, please place 2-4 ball mill jars symmetrically for grinding during use, so that the planetary ball mill can work normally in the most quiet, stable and safe state. Work;

Process characteristics

 1> The core noise reduction technology is adopted, and technical improvements are made in gear production, assembly, debugging, lubrication, post-maintenance, etc., effectively controlling the noise problem during the grinding process, and bringing customers a quieter and more comfortable experience;

  2> The frame of the body is made of 3mm thick 30 square steel. The planetary disc, load-bearing gear floor, and motor load-bearing bottom plate are all made of steel plates with a thickness of 10mm. The overall weight of the machine is greatly increased, which makes the operation of the planetary ball mill thicker and more stable. noise and vibration;

  3> In order to ensure the safety of the ball milling tank during high-speed operation, the ball milling tank support tank is made of 5mm thick seamless steel pipe through wire cutting process, which completely eliminates the possibility that the welding may cause the tank support to break and the ball mill to fly out. Possibility of danger; at the same time, the pressure rods of the ball mill tank fixing parts are all made of 304 stainless steel, which is strong, corrosion-resistant, firm and more durable; the emphasis on details provides a favorable guarantee for the safety of use;

  4> The internal space layout of the machine body ensures its good maneuverability, safety and stability under the premise of easy installation and daily maintenance. The overall structure is compact in design. The grinding room and the control room are each equipped with a strong suction cooling fan , to provide protection for the heat dissipation of the body during grinding;

Performance advantages

 о According to the amount of grinding, there are three specifications: 1L, 2L, 4L, 6L;

 о Powerful and fast grinding to achieve high-precision discharge effect;

 о Fine grinding, no pollution, wide range of materials suitable for grinding;

 о Low noise, low vibration, more comfortable to use;

 o The control of grinding data such as rotation speed and time can ensure the repeatability and consistency of sample grinding;

 о Equipped with a variety of ball milling jars of different materials to grind at the same time, with the diversity of grinding samples;

 о Support dry grinding, wet grinding, vacuum/boosted grinding, inert gas grinding, low/high temperature grinding;

 о Grinding room and control room are equipped with highly ventilated cooling system;

 о The control system has strong maneuverability, convenient parameter setting, various functions, intuitive digital display, simple operation, one-piece operation and safe use;

 о Power-off protection function, automatic storage of grinding data;

 о The ball mill and the ball mill jar are easy to use;

 о Simple and convenient maintenance and repair;

Applications

Licorice, Dendrobium officinale, Ginseng, Paeoniae Alba, Angelica, Honeysuckle, Zirconia, Aluminum Oxide, Aluminum Oxide, Iron Powder, Titanium Oxide, Zinc Oxide, Calcium Carbonate, Quartz Sand, Titanium Dioxide, Chlorinated Paraffin, Silicon Dioxide, Silicic Acid Sodium, graphite, ink, paint, coke, kaolin, etc...

Packing list：completeness-built unit X1, pressure rod X1, tool X1, lubricant X1, manual X1, warranty card X1, certificate X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
