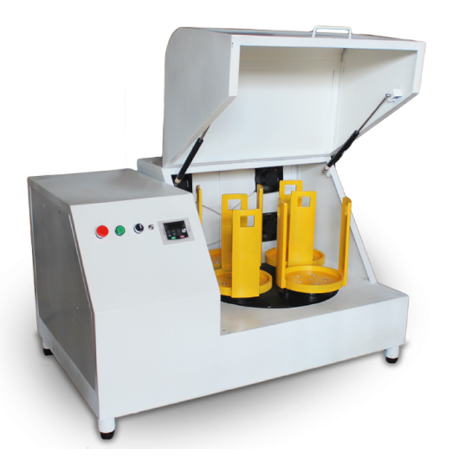

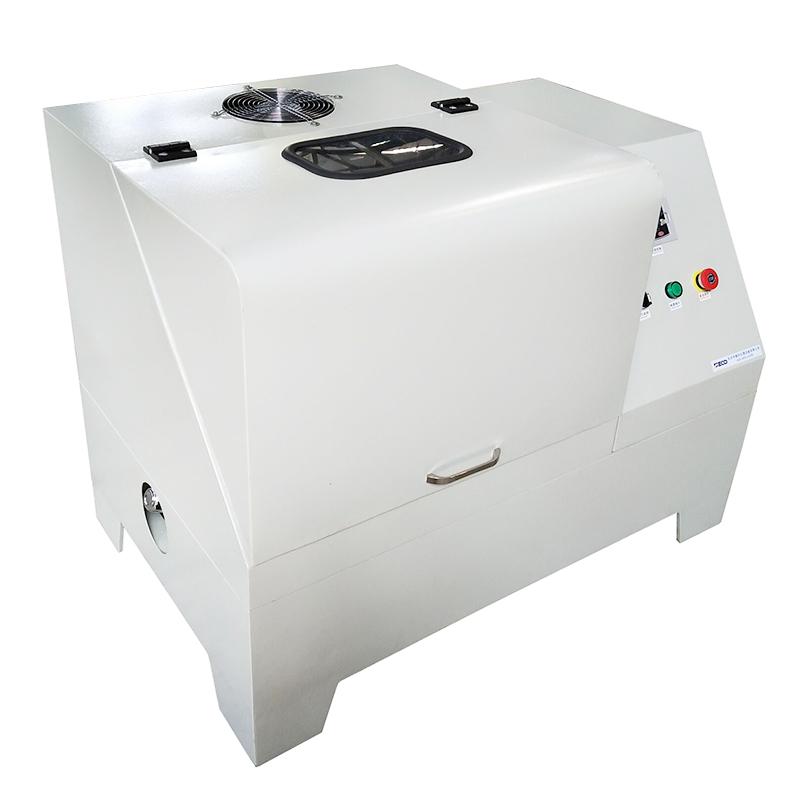

DECO Instruments DECO-PBM-V-40L Vertical Planetary Ball mill

DECO-PBM-V-40L

Vertical planetary Ball mill

Introduction

"DECO-PBM-V-40L" is a vertical planetary ball mill. The space of the grinding room and the control room has been greatly improved. The operating space is wider and more comfortable when in use, and the control room, grinding room and base are combined. It can be disassembled and assembled freely, which is convenient for daily maintenance and repair. While ensuring the roundness of the shell and the gloss and texture of the plastic spraying treatment through the exquisite and rigorous manufacturing process, the internal structure layout has also been carefully adjusted to ensure the rationality of the space structure. In terms of core components, the equipment still uses the Delixi brand inverter as the control system, and the power also uses the Dedong brand motor to provide a strong guarantee for the stability of the equipment;

Principle

There are four ball milling tanks installed on the planetary disc. When the planetary disc rotates at a high speed, the ball milling tank makes a planetary movement of the central axis. The balls in the ball milling tank collide and rub the materials violently during the high-speed motion, so that the materials are fully crushed and Homogenize or mix. According to the different properties of the materials to be ground, various grinding methods such as dry grinding, wet grinding, vacuum grinding, low-temperature grinding, and inert gas grinding can be selected for grinding;

Process characteristics

1.  Combined structure, flexible assembly and disassembly, easy maintenance and repair;

2.  The operating space of the grinding chamber is wide;

3.  The planetary tank support is made of seamless wire cutting technology, which is durable and can effectively prevent breakage at high speed;

4.  The pressure rod is made of 304 stainless steel, does not rust, can be used for a long time, presses firmly, and has a high safety factor;

5.  The core components are Delixi inverter and Dedong motor, which are durable and stable in performance;

6.  Equipped with a 200CFM cooling system to maintain the normal temperature of the body;

7.  Low center of gravity design, smooth touch to the ground, to ensure stable operation;

Performance advantages

•   Various grinding methods such as dry grinding, wet grinding, vacuum, pressurized grinding, inert gas grinding and low temperature grinding can be used;

•   The grinding effect is the same for multiple times under the same conditions, and the grinding effect of each ball mill jar is the same for a single batch of grinding;

•   The grinding time is short, and the output particle size can be as small as 0.1um;

•   Wide range of grinding samples;

•   The control system has various functions and is easy to operate; it has power-off protection and memory functions;

•   Easy to use and easy to maintain;

Packing list：completeness-built unit X1, pressure rod X1, tool X1, lubricant X1, manual X1, warranty card X1, certificate X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
