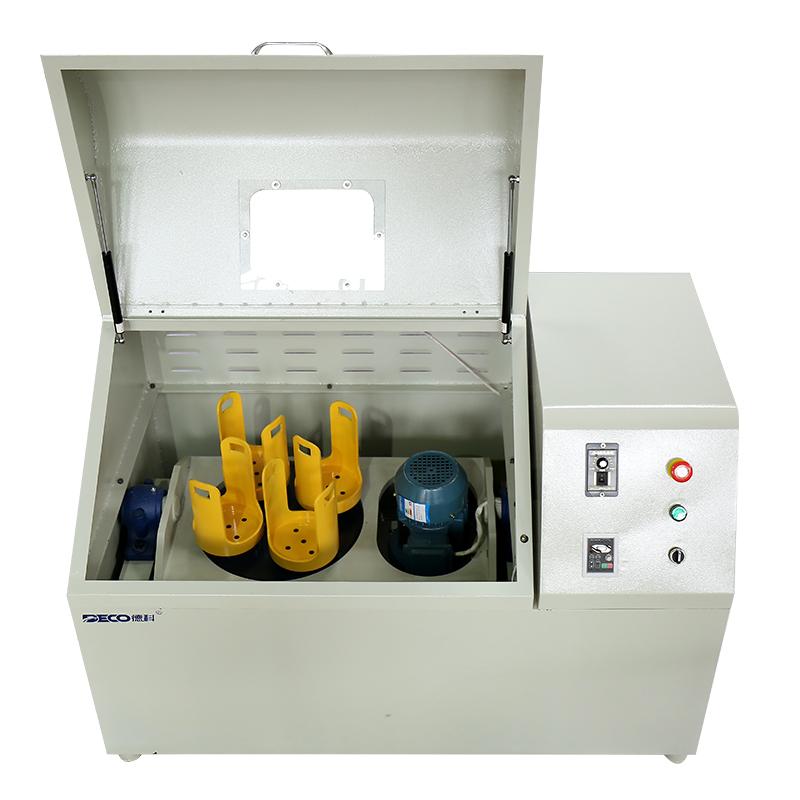

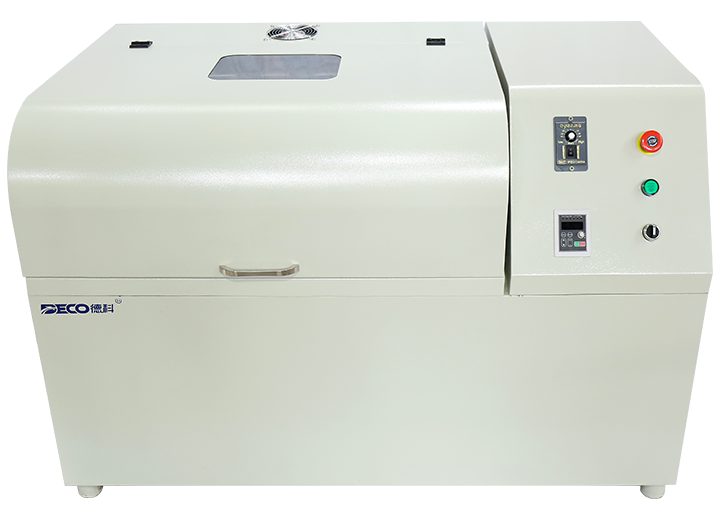

DECO Instruments DECO-PBM-AD-6L Omnidirectional Planetary Ball mill

DECO-PBM-AD-6L

All round planetary Ball mill

Introduction

"DECO-PBM-AD-6L" comprehensive planetary ball mill is a laboratory powder sampling equipment that can achieve ultra-effective three-dimensional full grinding of materials, and can also be used for crushing, mixing and homogenization of samples. Compared with the ordinary vertical planetary ball mill and horizontal planetary ball mill, the structure of the comprehensive planetary ball mill is more characteristic. In the operation form of the planetary ball mill, the overall 360° tumbling form of the planetary disc and the ball mill jar is newly added. It can be said that the all-round planetary ball mill combines the characteristics of the vertical planetary ball mill and the horizontal planetary ball mill. Therefore, the all-round planetary ball mill can not only form a better crushing effect on the sample, but also greatly improve the uniformity of the output. High degree, which not only improves the efficiency, but also enables the sample to achieve a better discharge effect;

Principle

In the planetary ball mill, the four ball mill pots placed on the planetary disc also rotate at a high speed in the opposite direction under the high-speed rotation of the planetary disc. At the same time, the planetary disc and the ball mill as a whole are tumbling 360° under the power of the motor. In the process of constantly changing the orientation, more intense and uniform friction and impact energy will be generated between the material and the grinding ball, and this energy will fully pulverize, mix and homogenize the material in the ball mill tank.

Performance advantages

 о There are three different grinding volume specifications of 2L, 4L and 6L;

 о Powerful, fast and comprehensive grinding, which can achieve high precision and highly consistent output effect;

 о Fine grinding, no pollution, wide range of materials suitable for grinding;

 o The control of grinding data such as rotation speed and time can ensure the repeatability and consistency of sample grinding;

 о Can control the tumbling speed of the planetary disc to improve the grinding effect;

 о Configure a variety of ball milling jars of different materials to grind at the same time to increase the diversity of ground samples;

 o Support dry grinding, wet grinding, vacuum/pressurized grinding, inert gas grinding and multiple grinding methods;

 о The grinding room and control room are equipped with high ventilation and heat dissipation;

 о The control system has strong maneuverability, convenient parameter setting, various functions, intuitive digital display, simple operation, one-piece operation and safe use;

 о Power-off protection function, automatic storage of grinding data;

 о Standard production process, exquisite workmanship, exquisite material selection, environmental protection and energy saving, and good service life;

 о The ball mill and the ball mill jar are easy to use;

 о Simple and convenient maintenance and repair;

Packing list：completeness-built unit X1, pressure rod X1, tool X1, lubricant X1, manual X1, warranty card X1, certificate X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
