Kedian MCW-2010A eddy current Coating Thickness Gauge 0~1200um built-in probe
MCW-2010A
-
AMITTARI AC-110A built-in thickness probe with resolution of 0.1 μm$ 341.00SE -
Statistical Coating Thickness Gauge AMITTARI AC-110B Integrated Sensors can store 99 sets of thickness measurement data$ 506.00SE -
LANDTEK CM8826n dry Film Thickness Gauge measurement of non-metallic coatings on nonmagnetic metallic substrates$ 309.00SE -
LANDTEK CM8828 Film Thickness Gauge for automotive coatings$ 386.00SE -
LANDTEK CM8829n paint Thickness Gauge, integrated eddy current paint Thickness Gauge$ 309.00SE
KODIN MCW-2010A Thickness GaugeSPEC
KODIN MCW-2010A Thickness GaugeDetails
KODIN MCW-2010A Thickness GaugePacking list
- SKU
- NB017135
- Measurement principle
- Eddy Current
- Measurement range
- 0~1200μm
- margin of error
- ±3%
- Resolution
- 1μm
- Minimum measurement surface
- Φ7mm
- Minimum radius of curvature
- Convex 1.5mm; Concave 6mm
- thinnest substrate
- 0.3mm
- probe
- N integrated probe
- statistical function
- MAX Maximum, MIN Minimum, Average
- icon function
- none
- Power Supply
- 2 * 1.5V battery
- Calibrated Certificate
- none
- system language
- Chinese
- Display screen
- 4-Digit LCD digital display
- supporting software
- none
- Machine Weight
- 100G (including battery)
- Machine size
- 115*45*25mm
- power consumption
- Maximum power consumption 110mw
- Operating temperature
- 0~40℃
- Voltage prompt
- Upper right corner display icon
- Relative Humidity
- ≤90%RH
Introduction to the MCW-2010A Eddy Current Coating Thickness Gauge
MCW-2010A eddy current paint Film Thickness Gauge is a new type of paint Film Thickness Gauge from Kedian. It adopts anti-interference technology, high measurement accuracy, digital display, low power consumption, built-in probe full-scale measurement, small model, simple operation, and has the functions of undercurrent indication, statistics, system/zero/two-point calibration, and its performance has reached the professional level of similar instruments in the world.
Features
(1) Measurement: Built-in probe full-scale thickness measurement
(2) Statistics: There are three statistics: average, maximum and minimum
(3) Calibration: Zero point calibration, two-point calibration and system calibration can be carried out
(4) Power level: with under-Voltage display function
(5) Buzzer prompt: There is a buzzer prompt during operation
(6) Shutdown: It has two modes: automatic shutdown and manual shutdown

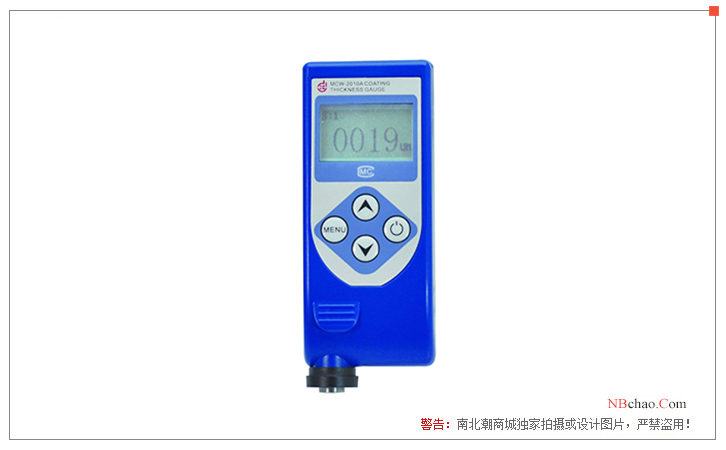

Product display diagram
- 1GB/T 44757-2024《Anodizing coating on titanium and titanium alloys》
- 2QJ 990.3A-2011《Inspection methods of coating.Part 3:Measurement of coating thickness》
- 3GB/T 1727-2021《General methods for preparation of coating films》
- 4GB/T 12967.1-2020《Test methods for anodic oxidation coatings and organic polymer coatings of aluminium and aluminium alloys―Part 1: Measurement of abrasion resistance》
- 5HG/T 20720-2020《Construction and acceptance specification of waterborne anti-corrosion coatings for steel structures in industrial buildings》
- 6ASTM B244-2021《Standard Test Method for Measurement of Thickness of Anodic Coatings on Aluminum and of Other Nonconductive Coatings on Nonmagnetic Basis Metals with Eddy-Current Instruments》
- 7ISO 2360-2017《Non-conductive coatings on non-magnetic electrically conductive base metals — Measurement of coating thickness — Amplitude-sensitive eddy-current method》
- 8ASTM D7091-2022《Standard Practice for Nondestructive Measurement of Dry Film Thickness of Nonmagnetic Coatings Applied to Ferrous Metals and Nonmagnetic, Nonconductive Coatings Applied to Non-Ferrous Metals》
- 9ASTM E376-2019《Standard Practice for Measuring Coating Thickness by Magnetic-Field or Eddy Current (Electromagnetic) Testing Methods》
- 10JJG 818-1993《Eddy Current Measuring Instrument for Coating Thickness》
