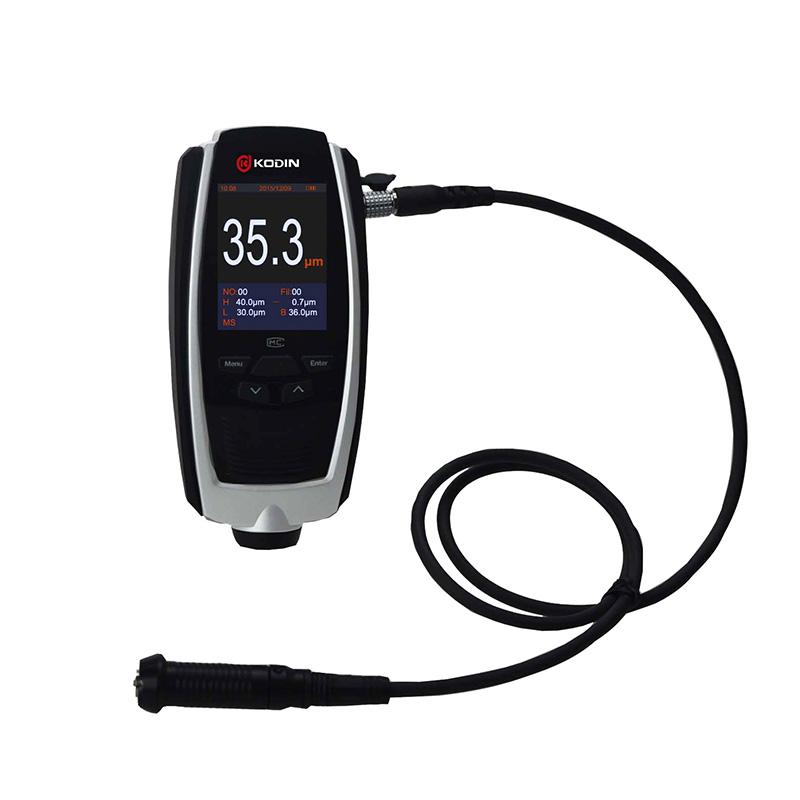

Kedian MC-3001 Split Coating Thickness Gauge magnetic/eddy current dual-use

MC-3001

Coating Thickness Gauge

Introduction to the MC-3001 Coating Thickness Gauge

The MC-3001 Universal Split Coating Thickness Gauge is a full-scale, multi-functional Split Coating Thickness Gauge upgraded on the basis of the MC-3000B/S series. It can be configured with all the split probes of the electrical instrument, and one host can use both magnetic probes and non-magnetic probes, and can also choose various customized probes such as internal anti-corrosion probes. The user can choose one or more probes for any matching according to their needs, and the corresponding measurement range and measurement material are also different according to the model of the probe.

Features

●Two thickness measurement methods, magnetic and eddy current, can non-destructively measure the thickness of the non-magnetic cladding (such as zinc, aluminum, chromium, copper, rubber, paint, etc.) on the magnetic metal matrix (such as steel, iron, alloy and hard magnetic steel, etc.) and the thickness of the non-conductive cladding (such as rubber, paint, plastic, anodized film, etc.) on the non-magnetic metal matrix (such as copper, aluminum, zinc, tin, etc.).

●6 types of probes (F0.5, F1.2, F3, F5, F9, N1.2) can be used

●With temperature compensation function: equipped with Kedian's new "phase-locked loop" technology

●With screen flip function: You can manually choose to flip the measurement data to display

● Display: 2.4-inch TFT high-definition color screen, 320*240 pixels, large digital display

●Measurement speed: According to different applications, customers can choose two kinds of measurement speeds: single measurement and continuous measurement

●The instrument can be calibrated in three ways, and the systematic error of the probe can be corrected by the basic calibration method

●With storage function: more than 10,000 measurement points can be stored

● With delete function: you can delete one suspicious data in the storage group, and you can also delete all the stored data so that new measurements can be made

●Set the limit: The measured value outside the limit can be automatically alarmed

●Display language: built-in Chinese, English

●Unit of measurement: Metric, Imperial convertible

● With wireless communication function: Bluetooth 2.0, it can communicate wirelessly with computers and printers

●It has the function of power supply under-Voltage indication

●There is a beep prompt during operation

●There are two shutdown modes: manual shutdown mode and automatic shutdown mode

●V-groove: The humanized V-groove structure is convenient for measuring the coating on the outer surface of pipes of various sizes

●Large flat bottom: The special large flat bottom probe structure makes the instrument measurement more stable and repeatable

●Anti-slip mat: The professionally designed anti-slip mat with the anti-slip texture on the back of the chassis makes it easy for customers to get tired for a long time, which reflects the consistent concept of customer first.

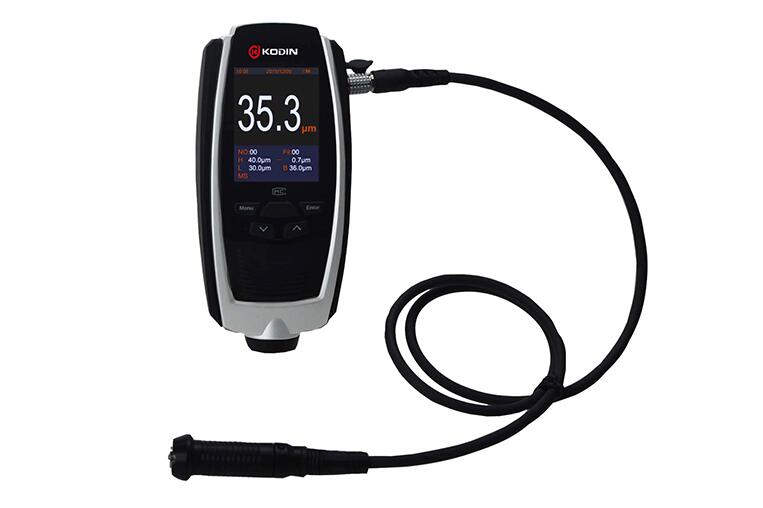

Pictures

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
