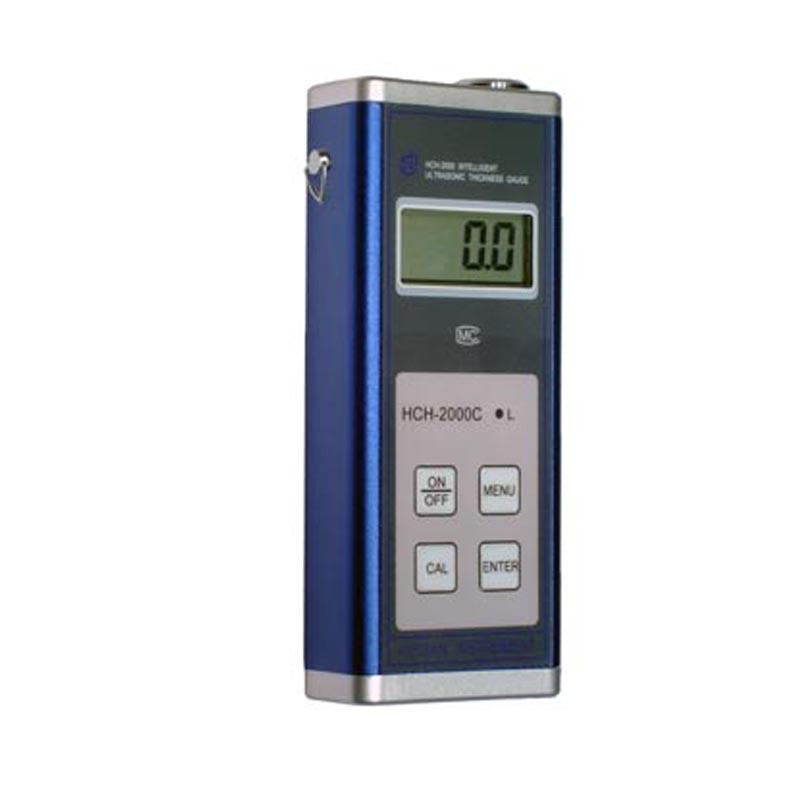

HCH-2000C Pipeline Ultrasonic Thickness Gauge Thickness 0.7-199

The HCH-2000C Pipeline Ultrasonic Thickness Gauge is suitable for thickness measurement of boilers, Pressure Vessel, pipes, Glass, etc. The thickness measurement range is 0.7-199 mm, and the HCH-2000C Ultrasonic Thickness Gauge adopts touch buttons, and the display accuracy is 0.1mm.
Model：
Certificate
Contact
Details SPEC
Similar products

KODIN HCH-2000C Ultrasonic Thickness GaugeSPEC

KODIN HCH-2000C Ultrasonic Thickness GaugeDetails

KODIN HCH-2000C Ultrasonic Thickness GaugePacking list

SKU
NB017178
Measurement range
0.7~199.9mm
Probe Frequency
5MHz
Probe style
Split probe
Measurement error
±(1%H±0.1)mm
Display resolution
0.1mm
unit system
mm
Data storage method
Manually stored measurements
Storage Capacity
600 Measured values
Speed of sound
1000~9990m/s
Display
LCD screen
Operating language
Chinese
Application Software
none
Environmental temperature
-10~60℃
Working Relative Humidity
<90%RH
Power Supply
1.2~ 1.5V alkaline battery or rechargeable battery
Host size
51*124*27mm
Application
Thickness of Boiler, Pressure Vessel, Pipe, Metal Workpiece, Glass, Plastic, Organic Glass, etc
Coupled status display
When the tested part is well coupled with the probe
shutdown mode
Standby for five minutes will automatically shut down
HCH-2000C
Ultrasonic Thickness Gauge
HCH-2000C Pipeline Ultrasonic Thickness Gauge Thickness 0.7-199 Picture

Introducing the HCH-2000C Portable Thickness Gage

HCH-2000C ultrasonic Thickness Gauge measuring range: 0.7-199.9mm, display accuracy: 0.1mm, the internal circuit adopts new digital electronic technology and microcomputer technology, and the external is made of metal casing, the instrument is small in size, low power consumption, strong in function, anti-falling, anti-vibration, and more intuitive in touch button operation, which is your preferred instrument in practical applications.

Applications

It can easily and non-destructively inspect the thickness of boilers, pressure vessels, pipes, metal workpieces, glass, plastics, plexiglass, etc.

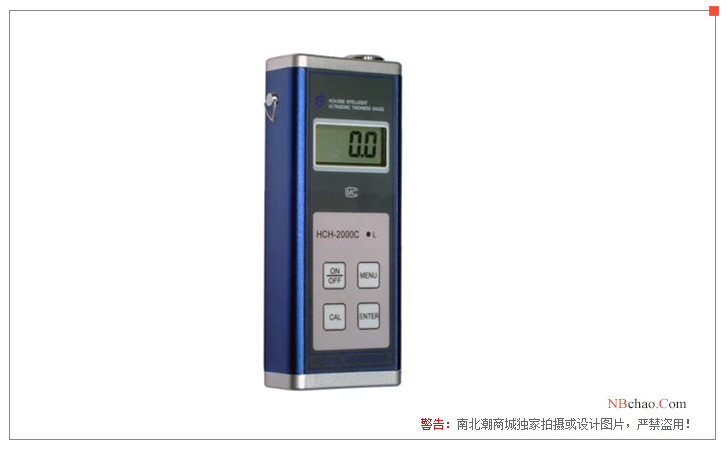

Product display diagram

Kedian HCH-2000C pipeline ultrasonic Thickness Gauge display diagram

FAQ
QWhat is the thickness measurement accuracy of this Ultrasonic Thickness Gauge?
A Hello, the accuracy of this thickness gauge is 0.1mm.
QHow thick can this HCH-2000C Ultrasonic Thickness Gauge be measured?
A HCH-2000C Ultrasonic Thickness Gauge The thinnest sample thickness can be measured at 0.7mm.
QIs this Ultrasonic Thickness Gauge JJF1126 compliant?
A The Ultrasonic Thickness Gauge is suitable for JJF1126, please consult customer service for detailed application definition
