HCH-2000D Portable Ultrasonic Thickness Gauge 0.65-350mm

The HCH-2000D Ultrasonic Thickness Gauge is a portable Ultrasonic Thickness Gauge with a range of 0.65-350mm. It has good anti-vibration and penetration. The display accuracy of the HCH-2000D is 0.01mm. The HCH-2000D Ultrasonic Thickness Gauge can be connected to microcomputers and printers.
Model：
Certificate
Contact
Details SPEC
Similar products

KODIN HCH-2000D Ultrasonic Thickness GaugeSPEC

KODIN HCH-2000D Ultrasonic Thickness GaugeDetails

KODIN HCH-2000D Ultrasonic Thickness GaugePacking list

SKU
NB017180
Measurement range
0.65~350mm
Measurement error
±(1%H±0.05)mm
Display resolution
0.01mm
unit system
mm
Data storage method
Manually stored measurements
Storage Capacity
600 Measured values
Speed of sound
1000~9990m/s
Display
LCD screen
Operating language
Chinese
Application Software
none
Environmental temperature
-10~60℃
Working Relative Humidity
<90%RH
Power Supply
1.2-1 alkaline battery or rechargeable battery
Host size
51*124*27mm
Application
Petroleum, chemical industry, electric power, boiler, metallurgy, shipbuilding, aviation, aerospace, etc
shutdown mode
Standby for five minutes will automatically shut down
HCH-2000D
Ultrasonic Thickness Gauge

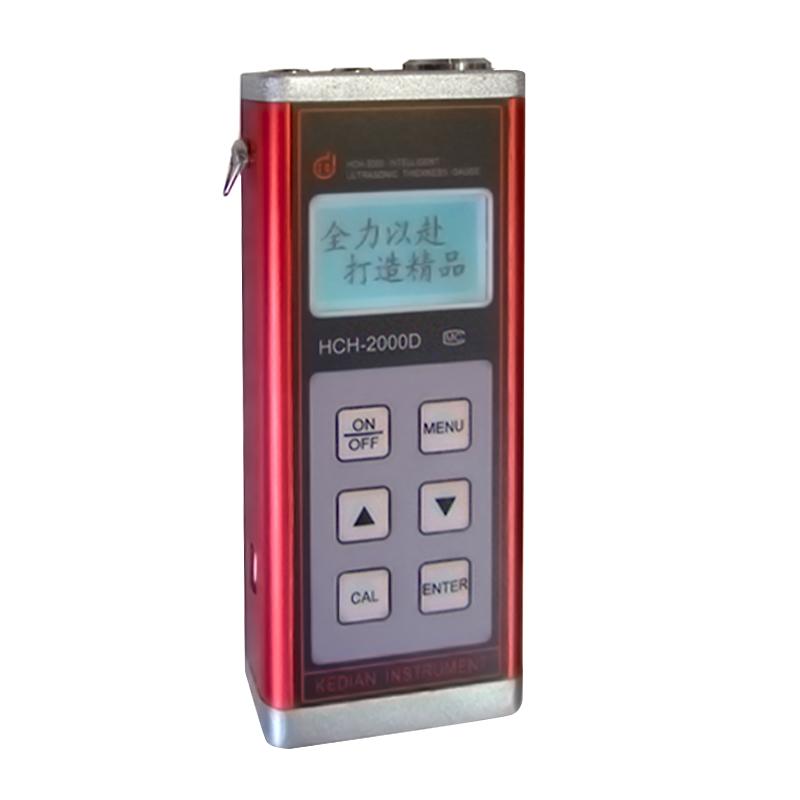

HCH-2000D Portable Ultrasonic Thickness Gauge 0.65-350mm Picture

Introduction of HCH-2000D Ultrasonic Thickness Gauge

HCH-2000D ultrasonic Thickness Gauge measuring range: 0.65-350mm, display accuracy: 0.01mm, the internal circuit adopts new digital electronic technology, with small size, low power consumption, strong penetration, anti-beating, anti-vibration, stable indication value, touch button, high detection accuracy, storable measured value, with metric and British conversion, full Chinese display Chinese menu, liquid crystal display, can be connected to microcomputer, printer and other characteristics, is your preferred choice in practical applications.

Scope of application

It is used to measure the thickness of hard materials, such as steel, stainless steel, aluminum, copper, chromium alloy and other metal materials, and plastics, rubber, ceramics, glass and other non-metals;

Product part description

1. Button

Detail drawing of the keys of the HCH-2000D ultrasonic Thickness Gauge

（1) ON/OFF: Power on and off.

（2) MENU: Menu key to open the menu.

（3) ENTER: Confirm button, after each adjustment, you need to press this button to confirm.

（4）CAL: Calibration key, press this key to calibrate.

（5）▲▼：Adjust the keys，▲ To increase the key,▼For a reduction key.

2. Screen display

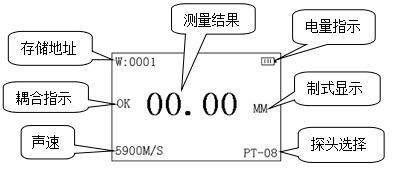

Detail of the display screen of the HCH-2000D ultrasonic Thickness Gauge

Product display diagram

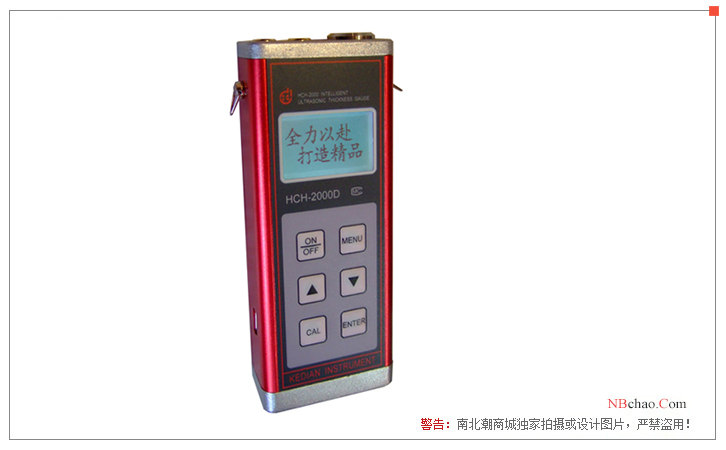

Kedian HCH-2000D ultrasonic Thickness Gauge display diagram

FAQ
QWhat is the minimum thickness of this HCH-2000D Ultrasonic Thickness Gauge?
A HCH-2000D Ultrasonic Thickness Gauge measurement 0.65mm.
QDo you have the Ultrasonic Thickness Gauge required by the GB/T11344 standard?
A This HCH-2000D Ultrasonic Thickness Gauge will do.
QCan HCH-2000D Ultrasonic Thickness Gauge be connected to a printer? The laboratory needs this function.
A Hello, this HCH-2000D portable Ultrasonic Thickness Gauge can be connected to a micro printer.
QWhat is the storage capacity of this Ultrasonic Thickness Gauge?
A Hello, the HCH-2000D Portable Ultrasonic Thickness Gauge can store 600 measurement points.
