KTEC HCH-3000C + Metal Ultrasonic Thickness Gauge Thickness 0.7-360mm

CHINA HCH-3000C + Metal Ultrasonic Thickness Gauge is a high-precision thickness Instrument for Nondestructive Testing with a range of 0.7-360mm and an accuracy of 0.01mm. HCH-3000C + is widely used in chemical industry, metallurgy, shipbuilding, aerospace and other fields. HCH-3000C + Metal Ultrasonic Thickness Gauge has the functions of gain automatic adjustment, limit alarm, data transmission, etc.
Model：
Certificate
Contact
Details SPEC CAT OI
Similar products

KODIN HCH-3000C+ Ultrasonic Thickness GaugeSPEC

KODIN HCH-3000C+ Ultrasonic Thickness GaugeDetails

KODIN HCH-3000C+ Ultrasonic Thickness GaugePacking list

SKU
NB017181
Measurement range
0.7~360mm
Probe Frequency
5MHz
Probe style
Split probe
Probe diameter
Φ8mm
Measurement error
(H is the measured thickness value): H < 10mm +/- 0.1mm; H ≥ 10mm +/- (0.1 + H/100)
Display resolution
0.01mm
unit system
mm
Calibration method
Speed of sound calibrated (reverse measurement Speed of sound) or single point calibrated
Storage Capacity
600 Measured values
Speed of sound
1000~9990m/s
Display
LCD display with backlight
Operating language
Chinese
Interface
serial output port
Application Software
none
Environmental temperature
-10~60℃
Working Relative Humidity
<90%RH
Power Supply
2 * 5 battery
Operating Time
200h
Host size
146*81*30mm
Weight
300g
Application
Thickness measurement of metal, plastic, ceramic, Glass and Miscellaneous good conductors of any ultrasonic wave
Data storage method
manual storage
shutdown mode
Standby for five minutes will automatically shut down
keyboard
6-Key dustproof, oil-proof keyboard
Coupled status display
When the tested piece is well coupled with the probe, the icon in the upper left corner shows
Optional probe
High temperature probe (below 550 degrees), cast iron probe, small diameter probe
HCH-3000C+
Ultrasonic Thickness Gauge
KTEC HCH-3000C + Metal Ultrasonic Thickness Gauge Thickness 0.7-360mm Picture

Introduction of HCH-3000C+ ultrasonic Thickness Gauge

HCH-3000C+ metal ultrasonic Thickness Gauge is a collection of contemporary science and technology electronic technology and measurement technology in one, professional non-destructive testing instrument, suitable for measuring the thickness of metal, plastic, ceramic, glass and any other ultrasonic conductor, widely used in petroleum, chemical, metallurgy, shipbuilding, aviation, aerospace and other fields;

The new HCH-3 series Thickness Gauges have many more features than the HCH-2 series Thickness Gauges, such as automatic gain adjustment, limit alarms, data transmission, and more.

Functional characteristics of ultrasonic Thickness Gauge

● Automatic identification of standard probes, or manual probes.

● The resolution is 0.01 mm

● It has the function of sound velocity calibration (reverse sound velocity measurement) or single point calibration

● The upper/lower limit of thickness measurement can be set with alarm function

● Up to 600 readings can be stored in groups.

● The data output can be printed through the serial output port

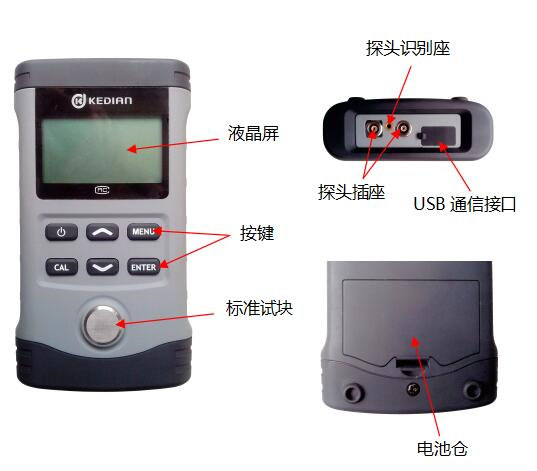

Functional structure diagram

Structural diagram of HCH-3000C+ metal ultrasonic Thickness Gauge

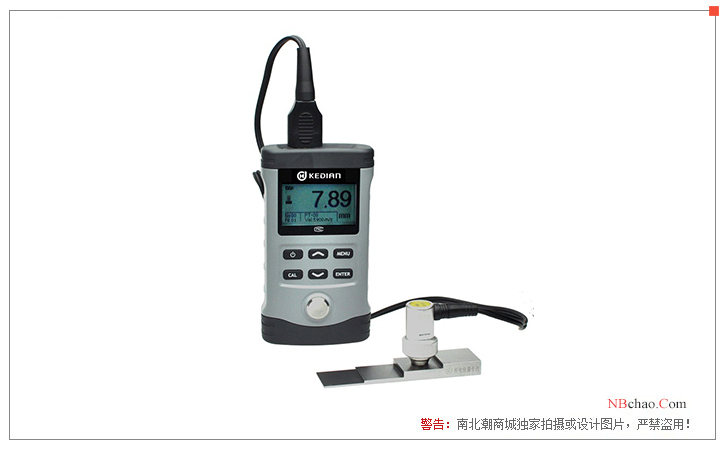

Product display diagram

Kedian HCH-3000C+ ultrasonic Thickness Gauge display diagram

FAQ
QUltrasonic Thickness Gauge with standard block how much film thickness?
A It is usually a 4mm standard block.
QUltrasonic Thickness Gauge measurement boiler water-cooled wall tube, thickness 5mm, measured?
A Sure.
QHow much data can HCH-3000C + Ultrasonic Thickness Gauge store?
A Hello, 600 measurement points can be stored.
QHow much thickness can this HCH-3000C + Ultrasonic Thickness Gauge measure?
A HCH-3000C + Ultrasonic Thickness Gauge limit can be measured as low as 0.7mm.
QIs this Ultrasonic Thickness Gauge ZBN 77001 compliant?
A This Ultrasonic Thickness Gauge is suitable for ZBN 77001, please consult customer service for detailed application definition
