HCH-2000C + Ultrasonic Thickness Gauge Thickness 0.7~ 350mm Metal Shell

The thickness measurement range of HCH-2000C + Ultrasonic Thickness Gauge is 0.7~ 350mm, the resolution is 0.1mm, HCH-2000C + is split metal shell Ultrasonic Thickness Gauge, HCH-2000C + Ultrasonic Thickness Gauge can detect the thickness of boiler, Pressure Vessel, Pipe, Metal workpiece, Glass, etc.
Model：
Certificate
Contact
Details SPEC
Similar products

KODIN HCH-2000C+ Ultrasonic Thickness GaugeSPEC

KODIN HCH-2000C+ Ultrasonic Thickness GaugeDetails

KODIN HCH-2000C+ Ultrasonic Thickness GaugePacking list

SKU
NB017182
Measurement range
0.7~350mm
Probe Frequency
5MHz
Probe style
Integrated probe
Measurement error
±(1%H±0.1)mm
Display resolution
0.1mm
unit system
mm
Data storage method
Manually stored measurements
Storage Capacity
600 Measured values
Speed of sound
1000~9990m/s
Display
LCD screen
Operating language
Chinese
Environmental temperature
-10~60℃
Working Relative Humidity
<90%RH
Power Supply
1.2-1 alkaline battery or rechargeable battery
Host size
122*50*24mm
Application
Thickness of Boiler, Pressure Vessel, Pipe, Metal Workpiece, Glass, Plastic, Organic Glass, etc
Coupled status display
When the tested part is well coupled with the probe
shutdown mode
Standby for five minutes will automatically shut down
HCH-2000C+
Ultrasonic Thickness Gauge

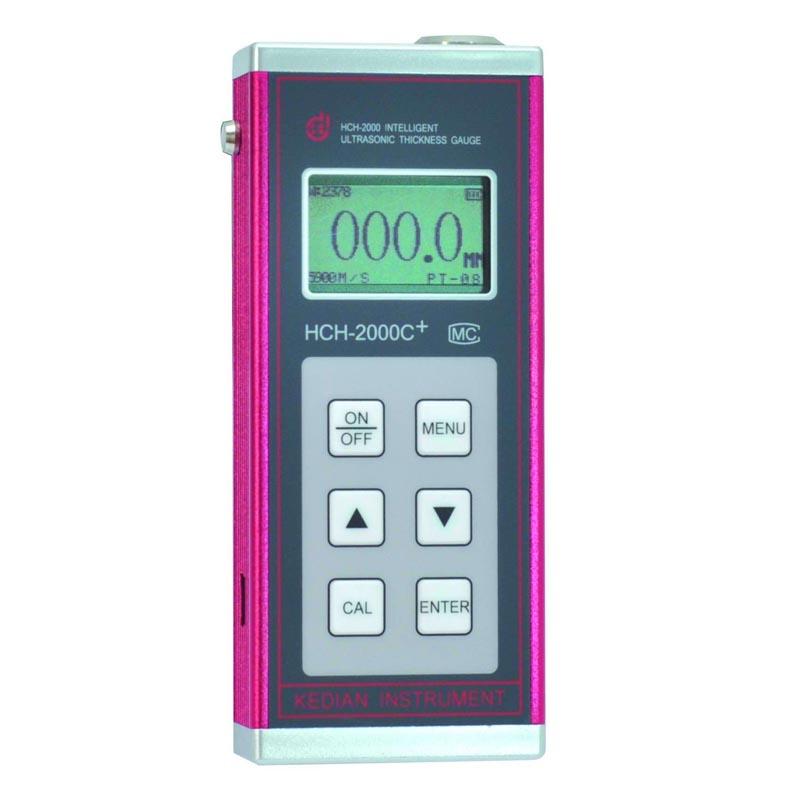

HCH-2000C + Ultrasonic Thickness Gauge Thickness 0.7~ 350mm Metal Shell Picture

Overview of the HCH-2000C+ Ultrasonic Thickness Gauge

The internal circuit of HCH-2000C+ ultrasonic Thickness Gauge adopts new digital electronic technology and microcomputer technology, and the external ultrasonic Thickness Gauge is made of metal casing, which has the advantages of small size, low power consumption, strong function, anti-falling, anti-vibration, and more intuitive operation of touch buttons, and is the preferred instrument for users in practical applications.

Applications

HCH-2000C+ ultrasonic Thickness GaugeIt can easily and non-destructively inspect the thickness of boilers, pressure vessels, pipes, metal workpieces, glass, plastics, plexiglass, etc.

Product display diagram

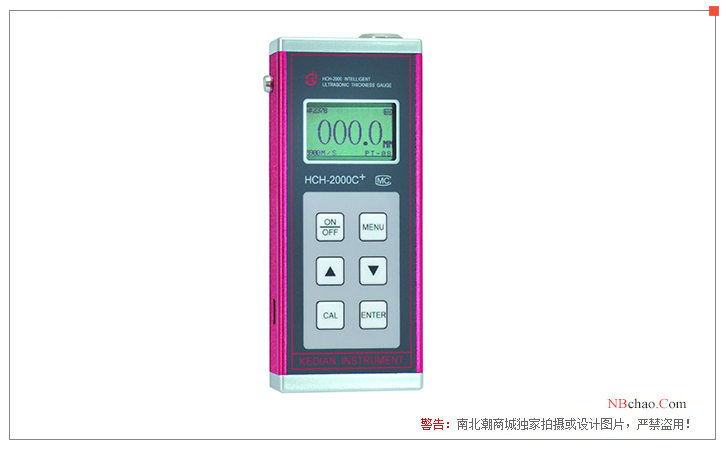

Kedian HCH-2000C+ ultrasonic Thickness Gauge display diagram

FAQ
QHow thick can this HCH-2000C + Ultrasonic Thickness Gauge be measured?
A HCH-2000C + Ultrasonic Thickness Gauge can measure the thickness of 0.7mm.
QDo you have the Ultrasonic Thickness Gauge required by the ASTME797 standard?
A This HCH-2000C + Ultrasonic Thickness Gauge will do.
