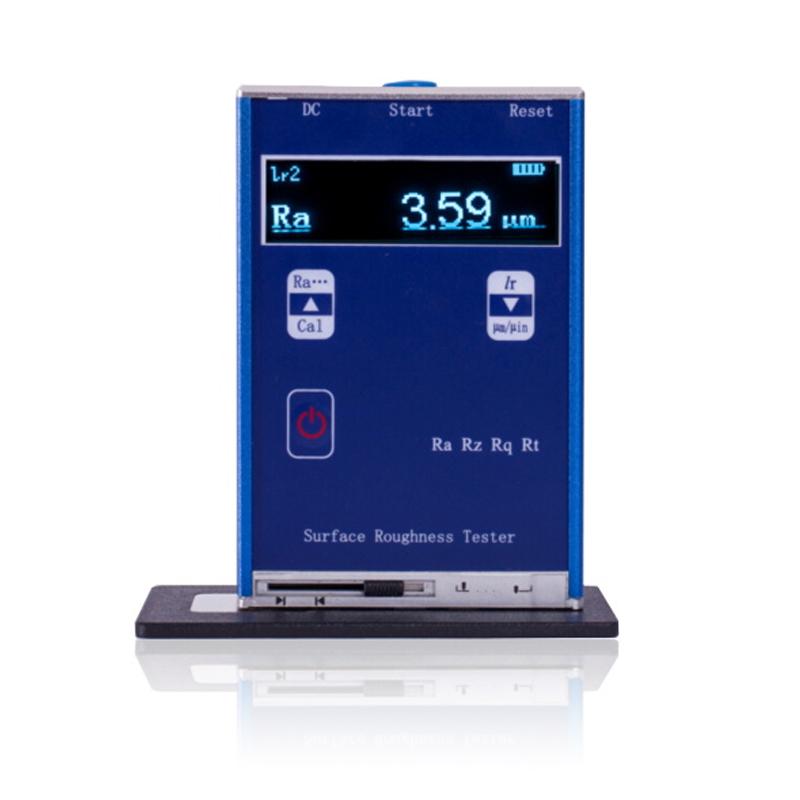

BOTECH botech BC-110 pocket surface roughness Tester

BC-110

Surface roughness meter

Overview

The BC-110 Portable Roughness Tester is a new generation of pocket-sized portable surface roughness Tester. It is based on the working principle of needle tracing, using professional sensing system DSP technology, with high measurement accuracy, wide measurement range, simple operation, easy to carry, stable work and other characteristics, can be widely used in the detection of various metal and non-metal processing surfaces, the instrument is a pocket instrument integrated with the sensor host, with hand-held characteristics, more suitable for use on the production site, is to improve production efficiency, reduce the production cost of the required products.

Features

It is compatible with ISO, DIN, ANSI, JIS national standards, and is used for surface roughness testing of metal and non-metal processing

Large range, a variety of parameters can be selected Ra, Rz, Rq, Rt

160μm large range measurement range, and selectable sampling length 0.25, 0.80, 2.50

128×64 OLED dot matrix display, digital/graphic display, bright and no dead ends

The display is informative and intuitive, and all parameters and graphs can be displayed

The high-speed DSP processor is used for data processing and calculation, which is fast and has higher accuracy

Reliable anti-motor run-off circuit and software design

Built-in lithium-ion rechargeable battery and charging control circuit, high capacity, no memory effect

The remaining battery indicator icon shows the charging process and knows the charging level at any time

The continuous working time is more than 20 hours

Ultra-large capacity data storage, which can store 100 sets of raw data and waveforms

Real-time clock setting and display for easy data recording and storage

It has automatic sleep, automatic shutdown and low-power hardware and software design, so that the instrument works for a long time

Reliable anti-motor run-off circuit and software design

Various prompt information such as measurement information, menu prompt information, error information, and power on and off is displayed

Ergonomic all-metal housing design, sturdy, compact, portable, and reliable

Chinese/English language selection (customizable)

High-precision piezoelectric crystal sensors are used for accurate measurement

Mini USB charging port for charging the instrument with a mobile phone charger

The calibration sample is made of optical glass matrix, which has high precision, is not easy to scratch, and has a long service life

The sensor probe protection door is set up, and the protective door can be closed to effectively protect the sensor probe when not measuring

Applications

Machining and manufacturing industry, mainly metal processing and manufacturing

With the progress and development of science and technology, more and more new materials are applied to processing technology, such as ceramics, plastics, polyethylene, and so on

The roughness of the coupling on the switch, integrated circuit semiconductor, etc. is also required to be evaluated in the production and processing process

Operating Conditions

Ambient temperature: operating temperature -20°C~+40°C

Storage temperature: -30°C~+70°C

Relative Humidity≤90%

There is no strong vibration, no strong magnetic field, no corrosive medium and no serious dust in the surrounding environment

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
