YueFeng 722 (N) Visible Spectrophotometer with RS232 interface

SE
YueFeng 722N Visible Spectrophotometer has four metering methods: Transmittance, Absorbance, Concentration Factor, and Concentration Direct Reading. 722N has RS232 interface, and the measurement wavelength is 340~1000nm.
$296.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT

YUEFENG 722（N） Visible SpectrophotometerSPEC

YUEFENG 722（N） Visible SpectrophotometerDetails

YUEFENG 722（N） Visible SpectrophotometerPacking list

SKU
NB017236
Optical inspection system
Single beam of light (1200/mm holographic light)
Light spectrum bandwidth
4nm
Wavelength range
340~1000nm
Wavelength Accuracy
±2nm
Wavelength Repeatability
≤1.0nm
Photometric range
0~100%T、-0.050~3.000A
Photometric Accuracy
±1.0%T
Luminosity, sexual repeability
≤0.5%T
stray light
≤0.5%T@360nm
Operating Mode
Transmittance, Absorbance, Concentration Factor, Concentration Direct Reading
Data Interface
RS232 interface
light source
Tungsten Halogen Lamp
Set range
0~9999 (concentration value or factor)
Options
Bright thermal printer
722（N）
Visible Spectrophotometer

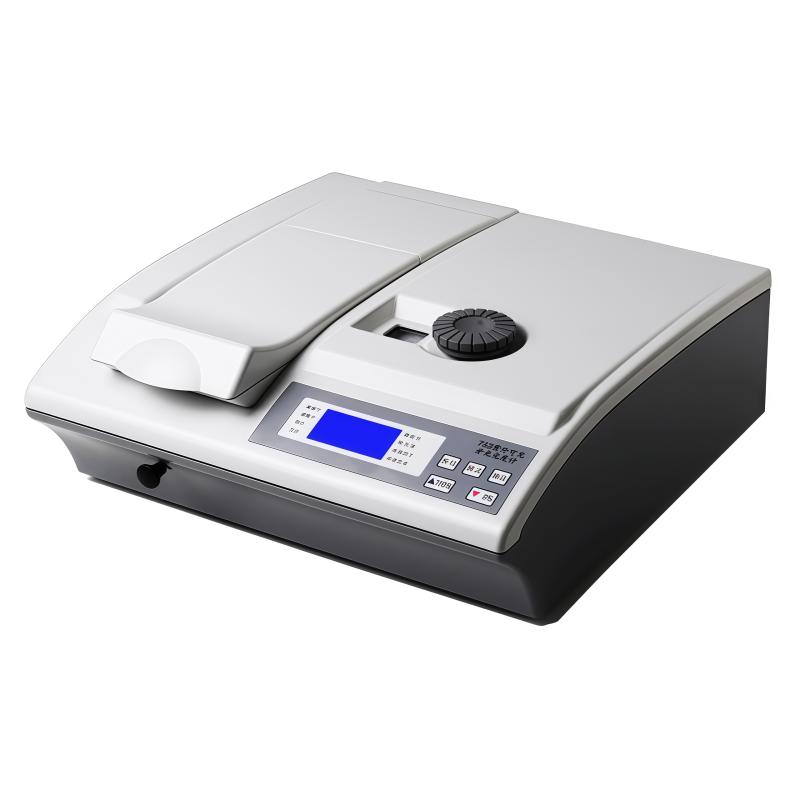

YueFeng 722 (N) Visible Spectrophotometer with RS232 interface Picture

Features

  • Using a new single-chip microcomputer system, it has strong functions, small size and easy maintenance.

  • Use flame-retardant, insulating all-plastic shell, exquisite shape design, easy operation, high safety factor.

  • True 4-digit LCD display, large measurement range and high calculation accuracy.

  • Membrane keyboard, good hand feeling, dustproof, waterproof and easy to clean.

  • Professional optical system design, sealed grating monochromator, scientific anti-mildew technology, stray light elimination technology, significantly improve service life, stray light, stability, and photometric accuracy indicators.

  • The lens is used to condense the light to prevent the energy of the reflector from plummeting after being ablated for a long time.

  • Special precision lamp holder, you can replace the tungsten halogen lamp by yourself without having to adjust the optical path again.

  • Automatic adjustment of 0%, automatic adjustment of 100% and absorbance OA.

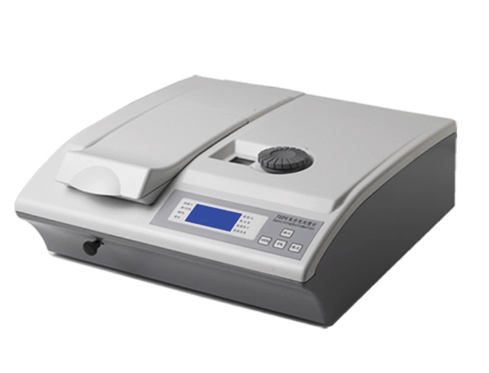

YueFeng 722 (N) Spectrophotometer

FAQ
QMeet GB/T26810 visible spectrophotometer
A 722 (N) visible spectrophotometer, please refer to it.
