YueFeng 723S (PC) Visible Spectrophotometer 325nm~ 1100nm

SE
Yuefeng 723S visible Spectrophotometer has a Wavelength range of 325nm~ 1100nm and a bandwidth of 2.0nm. It has auto calibration function. The 723S visible Spectrophotometer can be equipped with an optional printer and adopts imported components.
$972.00/set
PromotionLoading...
Coupon
Certificate
Contact
Details SPEC Con CAT
Similar products

YUEFENG 723S（PC） Visible SpectrophotometerSPEC

YUEFENG 723S（PC） Visible SpectrophotometerDetails

YUEFENG 723S（PC） Visible SpectrophotometerPacking list

SKU
NB017244
Optical inspection system
Aberration Elimination (1200L/mm Grating)
Light spectrum bandwidth
2nm
Wavelength range
325~1100nm
Wavelength Accuracy
±0.5nm
Wavelength Repeatability
≤0.3nm
Photometric range
0~200%T、-0.301~3.000A、0~9999C
Photometric Accuracy
±0.002A(0~0.5A)、±0.003A(0.5~1A)、±0.5%T
Luminosity, sexual repeability
≤0.2%T(0~100%T)；0.001A(0~0.5A)；0.002A(0.5~1A)
stray light
≤0.05%T@360nm
Noise level
100%≤0.15%T；0%≤0.1%T
Baseline flatness
±0.002A
Data Interface
USB interface and PC software
printout
Parallel port
light source
Tungsten Halogen Lamp
Dimensions
450*340*180mm
Weight
13kg
Drift
≤0.001A/h@500nm
Scanning speed
Fast, medium, slow
723S（PC）
Visible Spectrophotometer

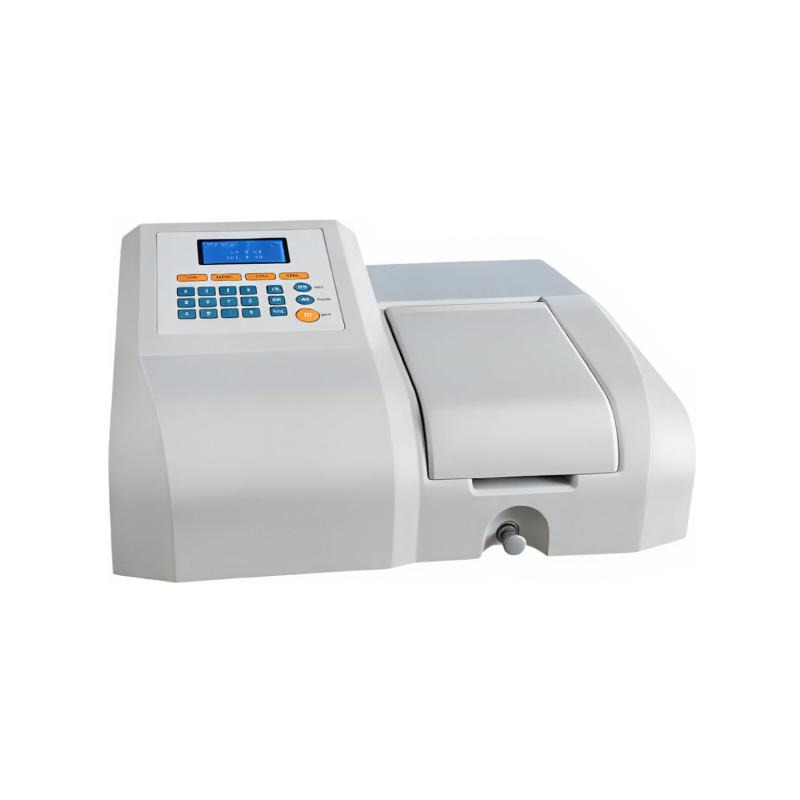

YueFeng 723S (PC) Visible Spectrophotometer 325nm~ 1100nm Picture

Features

  • Large-screen LCD (64×128) graphic liquid crystal display.

  • The spacious sample room can accommodate 5 ~ 100mm cuvette.

  • The host can perform photometric detection, quantitative detection, and can display standard curves, and can store 100 standard curves and 200 detection data.

  • With wavelength automatic calibration, automatic power off to keep data.

  • The main components adopt imported configuration, which is convenient for maintenance.

  • The newly designed Czerny-Turner optical path ensures the accuracy of detection linearity and ultra-low stray light.

  • Can be directly connected to a printer (optional) to print data or maps.

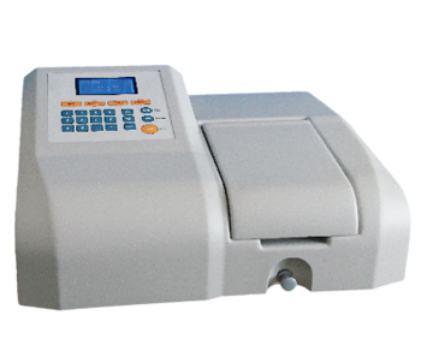

YueFeng 723S (PC) Spectrophotometer

Main functions of the instrument

Photometry

The test of absorbance, transmittance and concentration at a fixed wavelength.

quantitative test

a. Standard curve method: Up to nine standard curves can be established, and the graph and regression equation can be displayed.

b. Coefficient method: use the formula C=KA+B, A=KC+B, and pass the input correlation coefficient test.

System functions

Wavelength calibration, dark current calibration...

FAQ
QMeet ISO3856-1 visible spectrophotometer
A 723S (PC) visible spectrophotometer, please refer to it.
