China

YueFeng 752N Ultraviolet-visible spectrophoto-meter

SE
YueFeng 752N Ultraviolet-visible spectrophoto-meter Optical inspection system Single beam of light, 1200 Diffraction grating, Light spectrum bandwidth 4nm, Wavelength range 200m~ 960nm, Wavelength Accuracy ± 2nm, wavelength, sexual repeability ≤ 1.0nm, photometric range 0~100% (
$646.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT
Similar products

YUEFENG 752N Ultraviolet-visible spectrophoto-meterSPEC

YUEFENG 752N Ultraviolet-visible spectrophoto-meterDetails

YUEFENG 752N Ultraviolet-visible spectrophoto-meterPacking list

SKU
NB017245
Optical inspection system
Single beam of light (1200/mm holographic light)
Light spectrum bandwidth
4nm
Wavelength range
200~960nm
Wavelength Accuracy
±2nm
Wavelength Repeatability
≤1.0nm
Photometric range
0~100%T、-0.050~3.000A
Photometric Accuracy
±1.0%T
Luminosity, sexual repeability
≤0.5%T
stray light
≤0.5%T@220nm,360nm
Operating Mode
Transmittance, Absorbance, Concentration Factor, Concentration Direct Reading
printout
RS232 print interface
light source
Deuterium lamp, tungsten halogen lamp
Set range
0~9999 (concentration value or concentration factor), [0 invalid]
Options
Bright thermal printer
752N
Ultraviolet-visible spectrophoto-meter

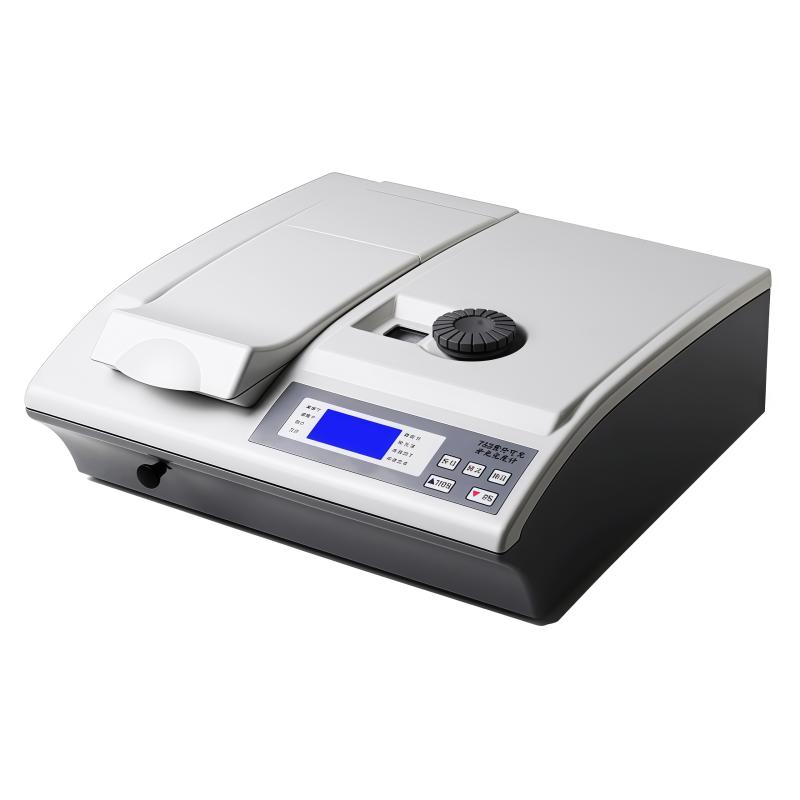

YueFeng 752N Ultraviolet-visible spectrophoto-meter Picture

Instrument Introduction

  • One-click automatic correction of ABS value.

  • Four-digit LCD liquid product display, digital display measured value.

  • Using imported tungsten lamps and deuterium lamps, the service life is as long as 2000 hours,

  • The large sample room can accommodate 5mm ~ 100mm cuvettes,

  • Data output port RS232, connectable to computer and printer

Features

  • Establish standard mode C=FXABS, F=C/ABS.

  • Find F=C/ABS

           a. ABS file background zero adjustment, measuring the absorbance of known standard solution

           b. Calculation of F value F=C/ABS

           c. Adjust the F file to the required number (F range: 1-1999

           d. C file test sample

  • It can be directly connected to a printer (optional) to print data or maps.

FAQ
QDoes this UV-Visible Spectrophotometer meet the GB/T1721 standard?
A The UV-Visible Spectrophotometer is suitable for GB/T1721. Please consult customer service for detailed application definition.
