YueFeng UV759 Ultraviolet-visible spectrophoto-meter Wavelength: 190m~ 1100nm

SE
YueFeng UV759 Ultraviolet-visible spectrophoto-meter adopts a large LCD with wavelength auto calibration function. The Light spectrum bandwidth of UV759 Ultraviolet-visible spectrophoto-meter is 1.8nm, and the light source is deuterium lamp and tungsten halogen lamp.
$1252.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT
Similar products

YUEFENG UV759 Ultraviolet-visible spectrophoto-meterSPEC

YUEFENG UV759 Ultraviolet-visible spectrophoto-meterDetails

YUEFENG UV759 Ultraviolet-visible spectrophoto-meterPacking list

SKU
NB017253
Optical inspection system
Aberration Elimination (1200L/mm Grating)
Light spectrum bandwidth
1.8nm
Wavelength range
190~1100nm
Wavelength Accuracy
±0.3nm
Wavelength Repeatability
≤0.2nm
Photometric range
0~200%T、-0.301~3.000A、0~9999C
Photometric Accuracy
±0.002A(0~0.5A)、±0.003A(0.5~1A)、±0.3%T(0~100%T)
Luminosity, sexual repeability
≤0.15%T(0~100%T)；0.001A(0~0.5A)；0.002A(0.5~1A)
stray light
≤0.05%T@220nm,360nm
Noise level
100%≤0.15%T；0%≤0.1%T
Baseline flatness
±0.002A
printout
Parallel port
light source
Deuterium lamp, tungsten halogen lamp
Dimensions
450*340*180mm
Weight
13kg
Concentration range
0~1999
Drift
≤0.001A/h@500nm
Scanning speed
Fast, medium, slow
display
High-quality 128x64-bit graph LCD
UV759
Ultraviolet-visible spectrophoto-meter

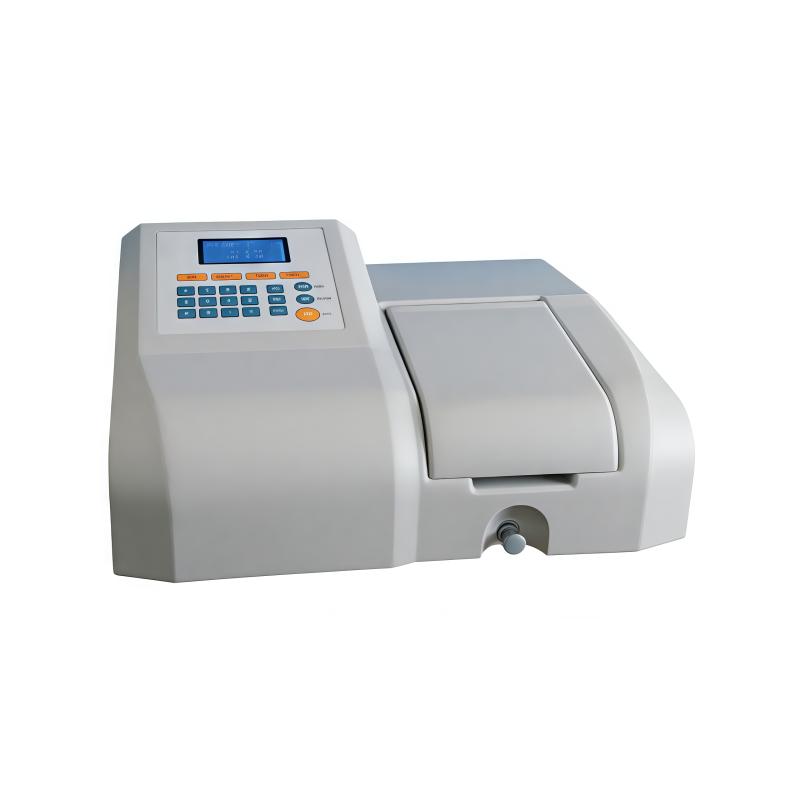

YueFeng UV759 Ultraviolet-visible spectrophoto-meter Wavelength: 190m~ 1100nm Picture

Features

  • Large-screen LCD (64×128) graphic liquid crystal display.

  • The spacious sample room can accommodate 5-100mm cuvettes, and the 10mm sample holder is standard.

  • The host can perform photometric detection, quantitative detection, and can display standard curves, and can store 100 standard curves and 200 detection data.

  • With wavelength automatic calibration, automatic power off to keep data.

  • The main components adopt imported configuration, which is convenient for maintenance.

  • The newly designed Czerny-Turner optical path ensures the accuracy of detection linearity and ultra-low stray light.

  • Can be directly connected to a printer (optional) to print data or maps.



    YueFeng UV759 UV Spectrophotometer


FAQ
QDoes the YUEFENG UV-Visible Spectrophotometer meet the JB/T6778 standard?
A The UV-Visible Spectrophotometer of the UV759 can be referred to
