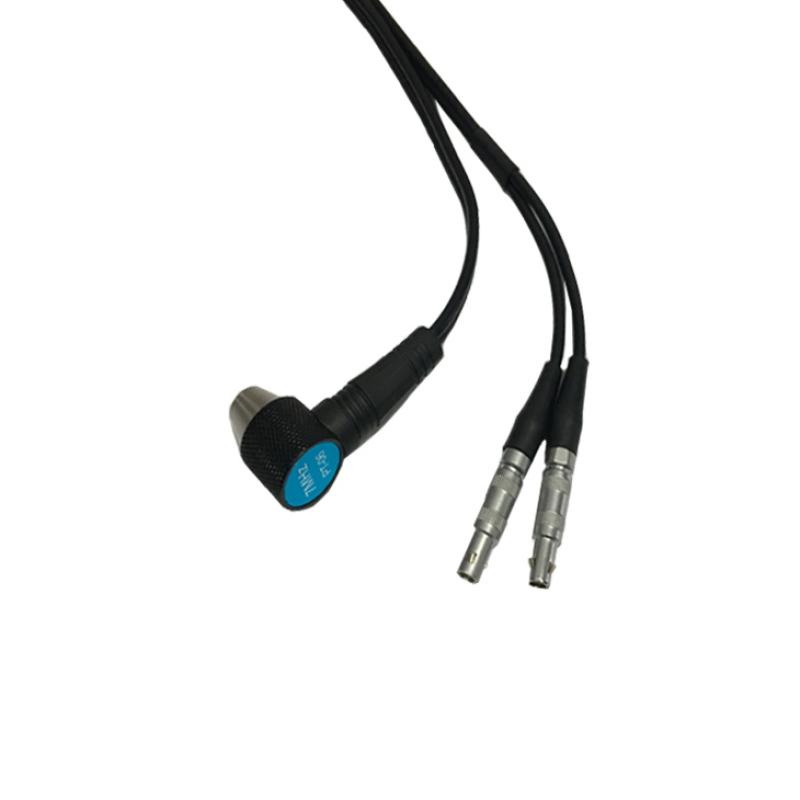

BOTECH botech N07/6mm Ultrasonic Thickness Gauge Probe for measurement of thin walls and small arcs
Model：
N07/6mm
BoTech N07/6mm Thickness Gauge probeSPEC
BoTech N07/6mm Thickness Gauge probeDetails
BoTech N07/6mm Thickness Gauge probePacking list
- SKU
- NB017298
- Measurement Range
- 0.65~ 260Mm (steel)
- Probe frequency
- 7MHz
- Probe style
- Split probe
- probe diameter
- Φ6mm
- Probe contact temperature
- -10~60℃
N07/6mm
Thickness Gauge probe
This series of probes is compatible with BT160 and BT180 mainframes, and the following probes are available:
| name | Model | frequency | Probe diameter | Measuring range | The surface temperature of the object to be measured | Description |
| Standard probes | N05 | 5MHz | 10mm | 0.5~400mm(Steel) | -10～60℃ | Use at room temperature (<60°C) |
| N05/90 | ||||||
| Coarse-grain probes | N02 | 2MHz | 12mm | 3~300.0mm(Steel) | -10～60℃ | It is used for measuring coarse-grained materials such as cast iron |
| 5~40.0mm(Cast Iron) | ||||||
| Microdiameter probes | N07 | 7MHz | 6mm/4mm | 0.65~260mm(Steel) | -10～60℃ | It is used for the measurement of thin walls and small cambers |
| High temperature probes | HT5 | 5MHz | 14mm | 3~200mm(Steel) | -10～400℃ | It is used for the measurement of materials with temperatures less than 350°C |

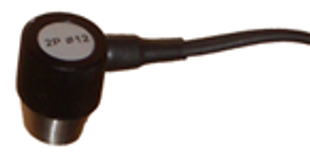

Standard probes

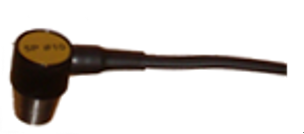

Coarse-grain probes
It is used for measuring coarse-grained materials such as cast iron

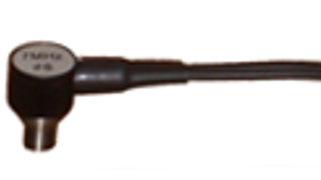

Microdiameter probes
It is used for the measurement of thin walls and small cambers
High temperature probes
It is used for the measurement of materials with temperatures less than 350°C
FAQ
QIs the price listed on the website the final cost for overseas purchases?
ANo, it isn't. This is the ex-factory price of the product in the Chinese Mainland. In addition to this price, buyers from different countries need to account for additional costs such as shipping fees, tariffs, and others. For specific regional quotes, please consult our customer service or fill out a quotation form.
QWhat is the specific process for purchasing the product?
AFirst, please click on the quotation form on the website and fill in detailed information. Our customer service personnel will then send you a quotation based on your specific country and region, confirming payment and delivery methods. Following this, we proceed with contract signing, payment, and shipment. You can then await delivery.
QWhat should I do if the instrument I purchase needs repair?
AAfter-sales repair for overseas instruments is an unavoidable issue. Our repair terms stipulate that the sender is responsible for the shipping and insurance costs incurred for the repair. Repairs within the warranty period are free, while repair costs beyond the warranty period are determined based on the actual situation.
