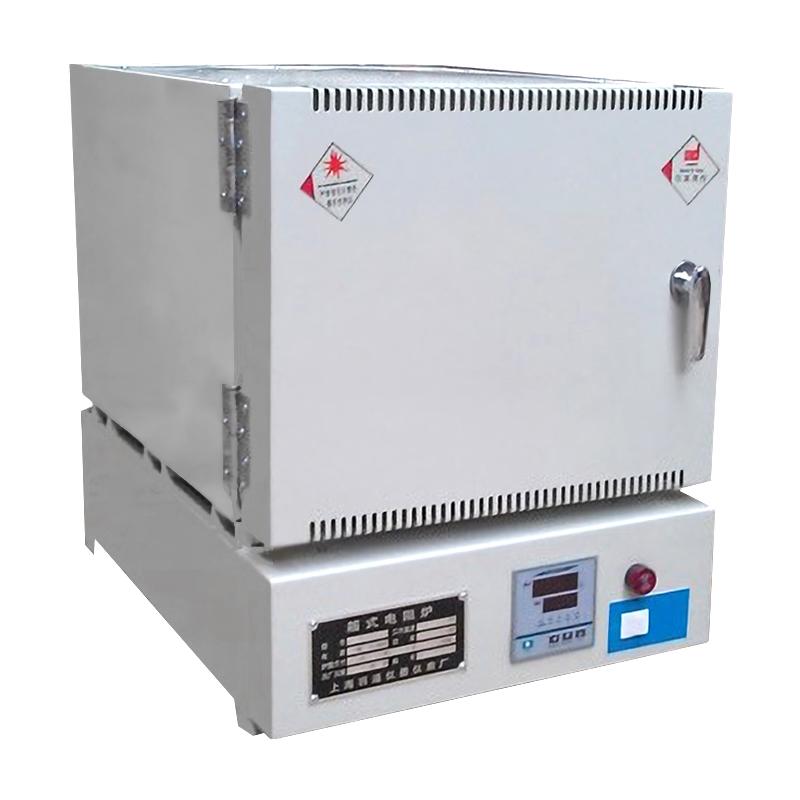

BOZHEN BZ - 2.5-12 P program temperature control muffle furnace temperature control 1200 ℃ volume 2L

BZ-2.5-12P

Program temperature control muffle furnace

Introduction

Bozhen BZ-2.5-12P program temperature control muffle furnace adopts the overall design and humanized menu design, adopts LCD program control instrument, high brightness, wide window digital display, clear and intuitive indication. Industrial PID self-tuning control technology, with 30 segments of program programming, suitable for complex experimental processes, microcomputer intelligent control, to solve the temperature overshoot and other drawbacks, temperature control effect is very good. After setting the temperature, the instrument controls the heating by itself, and the temperature control is accurate and stable. Fault sound and light alarm, over-temperature sound and light alarm, and automatically cut off the heating output.

Overview of uses

Bozhen BZ-2.5-12P programmed temperature control muffle furnace is a periodic operation electric furnace. Used for sintering, heating and heat treatment in the laboratories of coal, electric power, chemical industry, building materials, metallurgy, scientific research and other units, as well as colleges and universities.

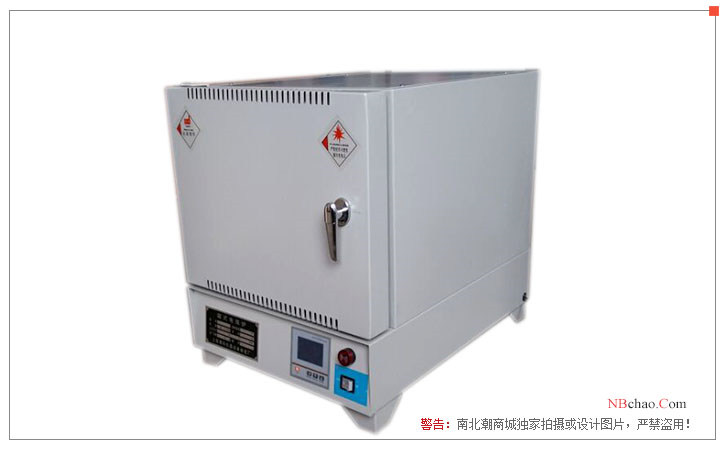

Display diagram

Furnace structure and materials

Furnace shell material: the outer box shell is made of good cold plate and sprayed at high temperature after phosphoric acid film salt treatment, and the color is computer gray;

Furnace material: high alumina liner is used, with good wear resistance, and the high-temperature furnace is heated on all sides;

Thermal insulation method: thermal insulation brick and thermal insulation cotton;

Temperature measuring port: The thermocouple enters from the back and top of the furnace body;

Binding post: The heating furnace wire binding post is located at the lower position behind the furnace body;

Controller: Located under the furnace body, the built-in control system is connected to the furnace body with compensation wires；

Heating element: nickel-chromium wire;

Weight: about 60KG;

Standard Packing: Wooden case.

Temperature controlsystem

Temperature measurement: K-indexed nickel-chromium--nickel-silicon thermocouple;

Control system: PID adjustment, display accuracy 1°C;

Complete sets of electrical appliances: brand contactors, cooling fans, solid-state relays;

Over-temperature protection: Built-in two-level over-temperature protection device, double insurance. Over-temperature alarm, over-temperature cut-off;

Operation mode: full-scale programmable setting, 30-segment program setting, automatic control of heating and constant temperature.

Packing list：host X1, operation manual X1, warranty card X1, certificate of conformity X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
