DLAB MS-H-Pro + Magnetic Stirrer numerical control heating type, stirring capacity 20L

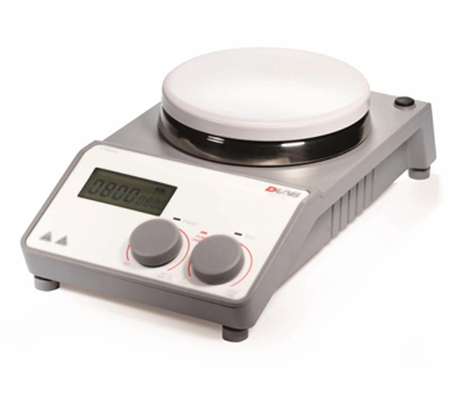

DLAB MS-H-Pro + is an LCD numerical control heating disc Magnetic Stirrer, using international plugs, MS-H-Pro + heating Magnetic Stirrer Max. Stirring Capacity is 20L, working plate is stainless steel ceramic coating, Heating power 500W.
Contact
Details SPEC OI

DLAB MS-H-Pro + (ceramic coating disk) Magnetic StirrerSPEC

DLAB MS-H-Pro + (ceramic coating disk) Magnetic StirrerDetails

DLAB MS-H-Pro + (ceramic coating disk) Magnetic StirrerPacking list

SKU
NB017326
Max. Capacity of stirring
20L
Stirring speed
100~1500rpm
Temperature range
RT+~340℃
Mixer size
≤80mm
Pan size
Φ135mm
Dimensions
160*280*85mm
Machine Weight
2.8kg
Panel Material
Stainless steel ceramic coating
Motor type
DC brushless motor
Input Power
18W
output power
10W
Heating power
550W
Power
100~120/200~240V 50/60Hz
Rated Frequency
50/60Hz
station number
1 station
Display mode
LCD
Rotation speed Display resolution
±1rpm
Heating power
500w
Temperature control Accuracy
±1（＜100℃）±1%（＞100℃）
Safety protection temperature
360℃
Display resolution
±0.1℃
Temperature transducer
PT1000
External temperature transducer temperature control Accuracy
Pt1000:±0.2℃
Waste heat warning function
50℃
Interface
RS-232
Protection level
IP42
Ambient Temperature
5~40℃
Allowable Relative Humidity
80%
MS-H-Pro + (ceramic coating disk)
Magnetic Stirrer

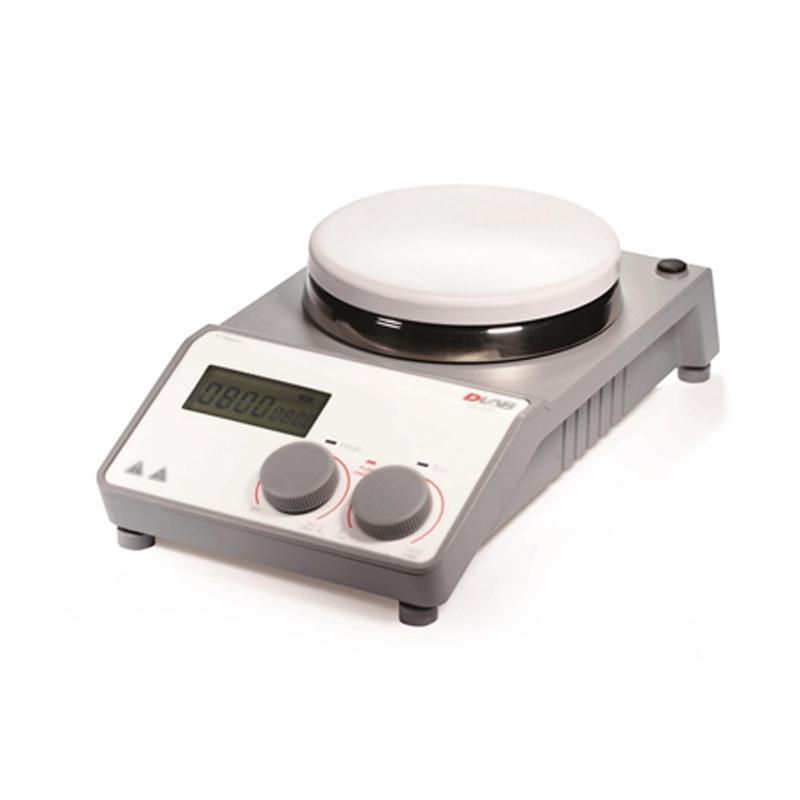

DLAB MS-H-Pro + Magnetic Stirrer numerical control heating type, stirring capacity 20L Picture

Introduction

Dalong Xingchuang MS-H-Pro+ is an LCD numerically controlled heating disc magnetic stirrer, which adopts an international plug. The maximum stirring volume of the MS-H-Pro+ heating magnetic stirrer is 20L. The working plate is stainless steel ceramic coated, and the heating power is 500W.

Features

  • The new heating mixer has new rapid heating and stirring technology and precise temperature control technology, and is suitable for unmanned operation;

  • Heated magnetic stirrer with safety temperature control for unmanned operation;

  • Two independent safety circuits;

  • Independent temperature sensor detection, protection temperature can be set;

  • External PT1000 temperature sensor can be used;

  • After the experiment, the thermal warning screen displays the residual temperature of the Heating Plate;

  • Multiple operating modes ensure that the stirring and heating functions are not changed due to external factors.
