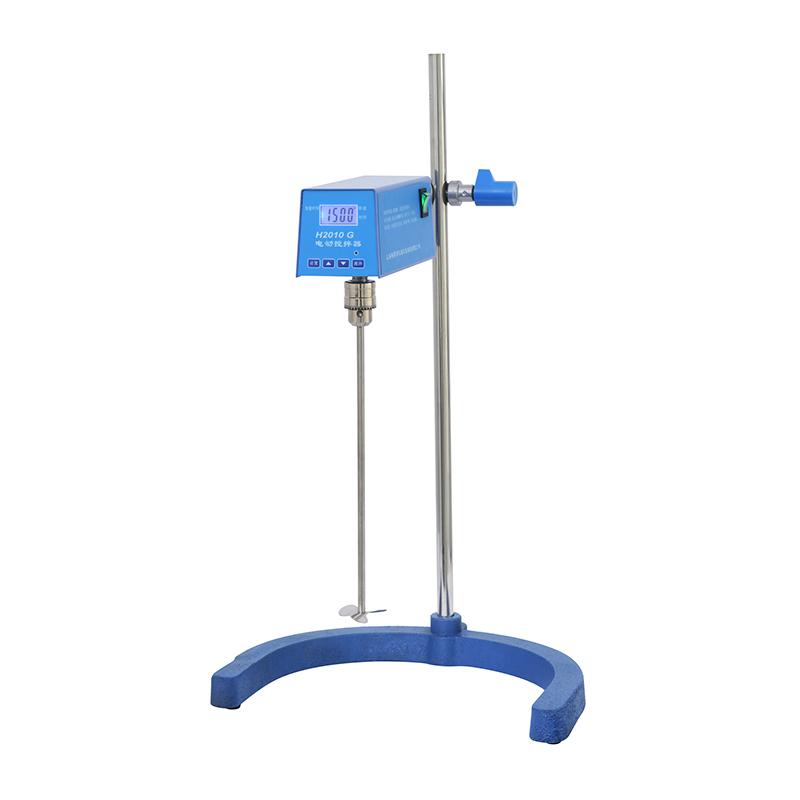

CHIJIU H2010G Overhead Stirrer LCD digital display Stir power 100W

H2010G

Overhead Stirrer

Power 100W, rotational speed range 60~1500rpm, Timer Range 1~ 9999min, rotating chuck clamping range φ 1.5~ 10mm, chuck to column distance 160~270mm, chuck maximum distance 560mm.

Product Description

Chijiu H2010G electric mixer uses a four-digit LCD display. The speed range of the H2010G electric mixer is 60-1400r/min, and the motor power is 100W.

H2010G digital display electric mixer is driven by brushless DC motor, controlled by single-chip microcomputer, idle loop speed regulation, stable speed, with a timing of up to 9999 minutes, and the LCD displays various functions.

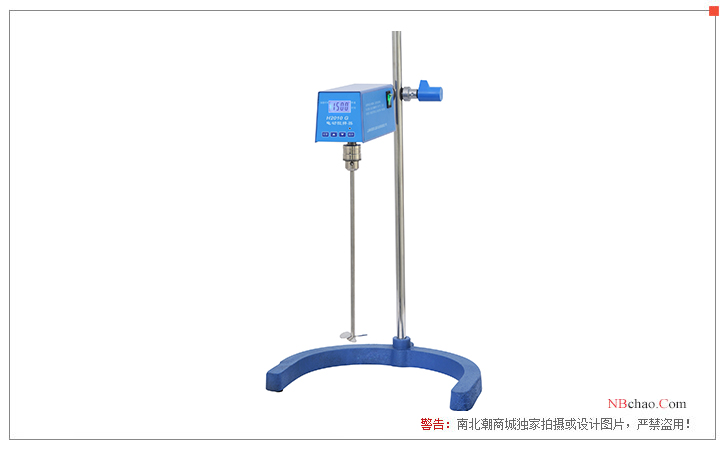

product display

Instructions

The liquid crystal display is a four-digit number, and three function arrows can be scrolled on both sides, pointing to the speed, timing, and acceleration time respectively. When the arrow pointing to the speed appears, the number displays the speed. When the arrow pointing to the timing appears, the number displays the Timer Setting...

Setting: Plug in the machine, turn on the power switch, the LCD will display the original set speed, press the set button once, the number will jump, press the up or down button, set the speed, press the set button again, set the timing with the above method Time, if timing is not required, just set it to "0", then press the setting button, set the acceleration time in the same way, press the setting button again, the setting is completed, the LCD will display the speed just set, if not reset, The three data will be stored for a long time.

Working operation: After the setting is completed, press the stirring key, the stirring indicator light is on, and the stirrer will automatically reach the set speed from slow to fast within the acceleration time just set. During operation, press the set key, and the LCD will display the current Stirring speed, remaining Timer Setting. When the time is up, the mixer will stop working automatically. If you press the stirring key while it is running, the stirrer will stop. Press the stir key, the stirrer restarts, and the timing restarts.

Rotational speed adjustment during working operation: Every time the Operating Conditions change (such as less stirring amount, change of liquid viscosity, etc.), the appropriate rotating speed should be selected, so every time you change, when you use it for the first time, do not set the rotating speed too high, if the rotating speed is not If it is suitable, you can directly press the up or down key to adjust to the most appropriate speed, but this speed cannot be saved, so you need to set this speed when you use it next time. The number displayed during the adjustment is the speed to be reached, and the actual speed will be displayed after the finger is released from the button and the displayed number is stable.

The acceleration time should not be too short, especially when the liquid has viscosity, the stirring volume is large, and the stirring speed is high, the acceleration time is too short, and the agitator is easy to overload.

Precautions

1. When the stirrer is used, it should be accelerated slowly from slow to fast. If the straightness of the stirring rod is poor, the speed cannot be fast or the flexible connecting shaft should be used and fixed with a support sleeve in the middle.

2. Please do not get too close when the mixer is working, so as to avoid dangers such as clothes and hair being involved;

3. Avoid liquid splashing when stirring.

Packing list：host x1, base x1, cross section x1, column x1, drill wrench x1, instruction manual x1, certificate x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
