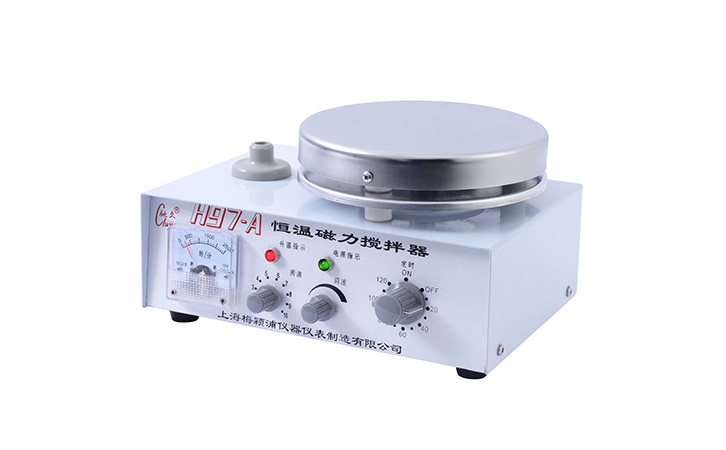

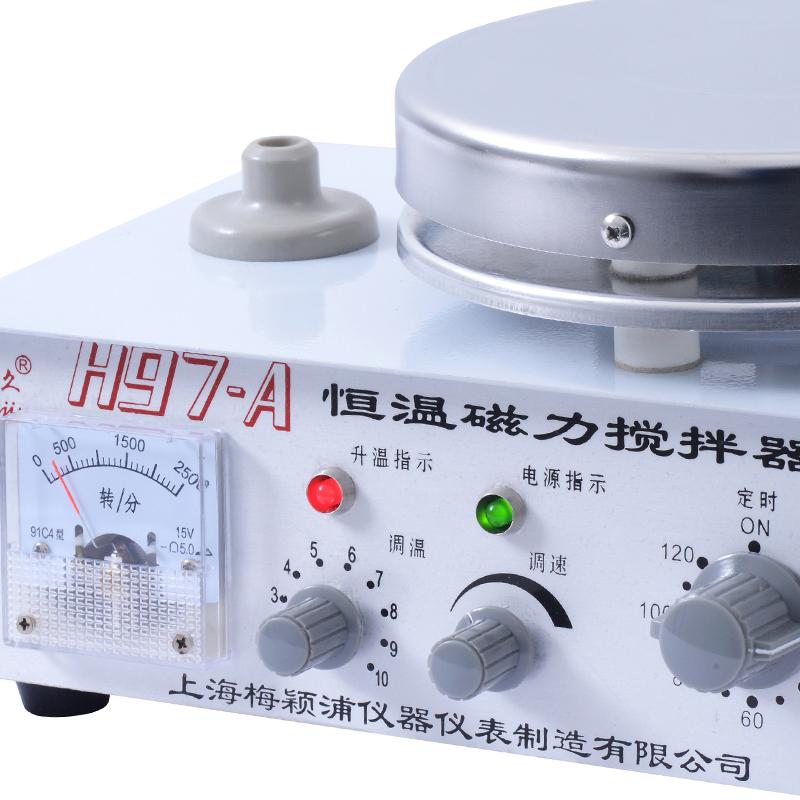

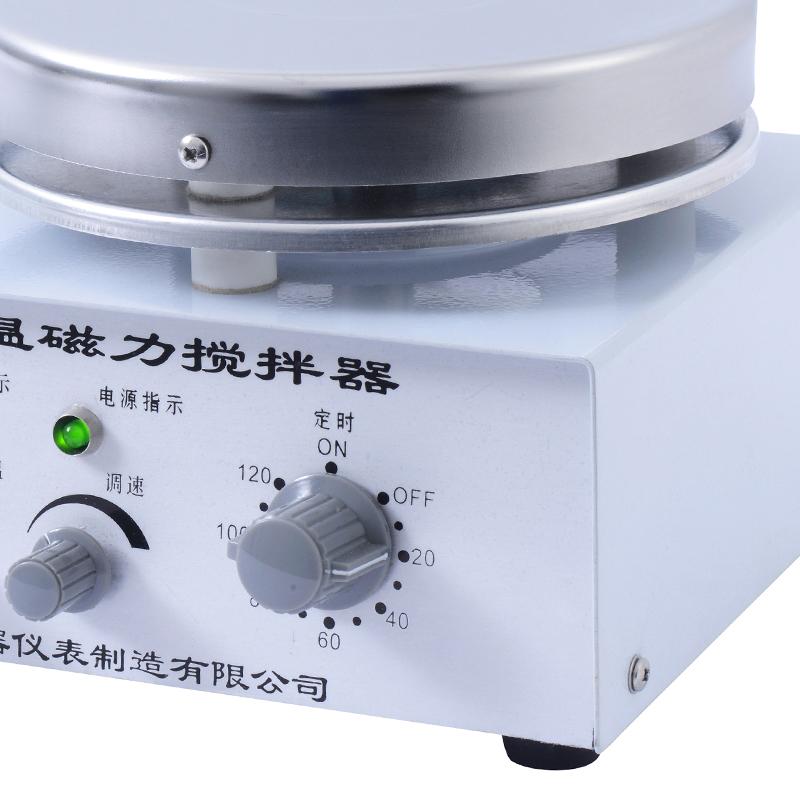

CHIJIU H97-A Heating thermostatic Magnetic Stirrer Stir 10000ml

H97-A

Thermostatic Magnetic Stirrer

Max. stirring Capacity 10L, stirring speed 0~1500rpm, heating power 360W adjustable, Temperature range RT +~ 150 ℃, Timer Range 20~120min

Product Description

Chijiu H97-A constant temperature magnetic stirrer adopts brushless DC motor to drive stepless speed regulation and strong magnetic force magnetic steel, strong stirring force, stable speed, and has mechanical timing, automatic temperature control and other functions, heating power Stepless adjustable, suitable for scientific research and teaching fields such as chemical industry and medical treatment.

plan

Instructions

1. Place the stirrer stably, and place the beaker containing the liquid medicine in the middle of the workbench (that is, the electric furnace). And put in an appropriate stirring bar, adjust the two adjustment knobs counterclockwise to the minimum, plug in the power supply, turn the timing switch to "ON" (open), or the scale that needs timing, the power indicator light is on;

2. Slowly rotate the speed control knob clockwise, so that the stirring bar in the beaker rotates from slow to fast to stir the liquid medicine until the required stirring speed is reached, and the electric meter displays the stirring speed;

3. When the liquid medicine needs to be heated, turn the button switch on the back of the machine down, the temperature rise indicator light is on, the electric furnace is energized to generate heat, and the heating power of the electric furnace is adjusted by the temperature adjustment knob.

4. If automatic temperature control is required, the two lead wires of the electric contact mercury thermometer (prepared by the user) can be connected to the two terminals on the back of the machine, and the thermometer can be inserted into the liquid medicine in the beaker and fixed on the pole. When the temperature is lower than the preset temperature, the heating will be automatically stopped, and the heating will be automatically resumed, so as to achieve automatic temperature control;

Note: The electric furnace has a certain thermal inertia, that is, when it is heated to the preset temperature, the electric furnace has been powered off (the temperature rise indicator light is off), but the remaining heat will still heat the liquid to make it warm up, affecting the temperature control accuracy. At this time, it can be adjusted appropriately. Low heating Voltage power.

5. The maximum temperature on the surface of the Benchijiu/Meiyingpu H97-A constant temperature magnetic stirrer electric furnace exceeds 300°C. When heating the liquid medicine, the temperature that the liquid medicine can reach is inversely proportional to its amount;

6. After use, unplug the power supply, clean the appearance after cooling down, and store it.

Precautions

1. The power socket should have good grounding;

2. The machine should be avoided to be used in a humid environment;

3. When the machine is in use, the liquid medicine in the beaker should not be too full to prevent overflow during stirring;

4. This machine cannot be used alone as an electric furnace.

Packing list：Host x1, Benchmark x1, Stir x2, Instruction manual x1, Certificate x1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
