Specifications
| Display | Backlit liquid crystal display |
| Measuring range | 1~100000mPa·s |
| Rotor Specifications | 1#、2#、3#、4# |
| Rotor speed | 6/12/30/60rpm |
| Reproducibility | ±0.5%F.S |
| Measurement Accuracy | ±2% |
| Power | 110V/60Hz，220V/50Hz |
| Data Interface | One R232C communication interface, one temperature probe interface, and one power jack. |
| temperature probe | RTD temperature probe |
| Dimensions | 300*300*450mm |
| Weight | 5kg |
| Display information | Automatic display of the selected rotor and rotational speed combination for measurement of the maximum Viscosity value |
| Automatic scan function | Viscosity of the test sample can automatically prompt the best combination of Rotor velocities |
Packing list

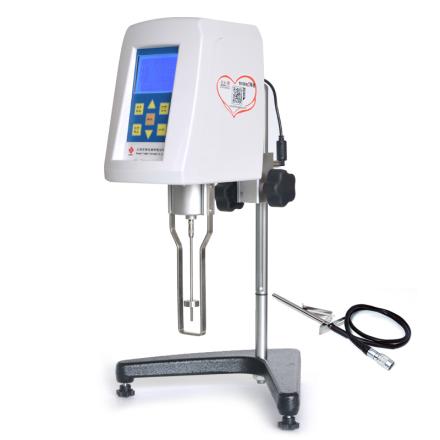

Viscometer host x1, RTD probe x1, 1-4 rotor x1 (set), triangular base x1, column x1, power adapter x1, instrument aluminum box gold foil x1, rotor guard x1, manual X1, certificate X1, warranty card X1
After-sales instructions
Warranty days: 365 days
Non-artificially caused product quality problems, the manufacturer provides 1 year free warranty service
[Note] For after-sales services outside the Chinese mainland, if the instrument requires repair, the shipping and possible associated taxes shall be borne by the sender. Generation address of the manual: http://en.nbchao.com/p/17354/Specification.html , which is only used by users who purchase commodities from the NBCHAO.
