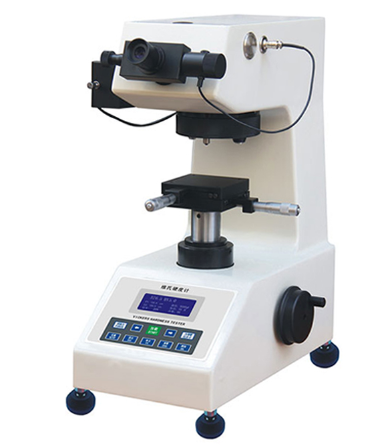

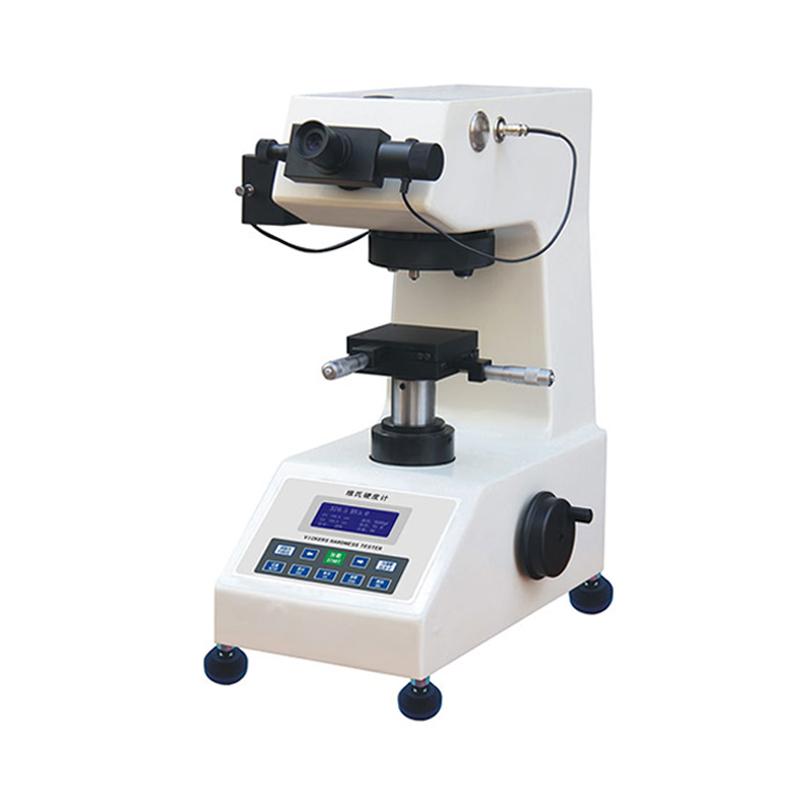

BOTECH botech HVS-5 digital display small load Vickers Hardness Tester

HVS-5

Vickers Hardness Tester

product description

The HVS-5 Vickers Hardness Tester is used to indent the surface of the workpiece, and then use a reading microscope to measure the length of the diagonal of the indentation. Finally, the Vickers hardness is measured using a conversion relationship between the diagonal and the test force. . Mainly used to test the hardness of small precision parts, surface hardened layer hardness and effective hardened layer depth, surface hardness of coatings, hardness of sheet materials and thin wires. It has stable performance, solid structure, high reliability, simple operation, and is equipped with high-definition optics New technologies such as measurement systems and photoelectric sensing use computer-assisted means to achieve powerful functions. It is widely used in hardware processing, electronics industry, engineering quality inspection and other fields. It is an ideal hardness testing instrument for material testing in scientific research institutions, processing manufacturing and quality inspection departments.

Features

The optical system designed by senior optical engineers not only has clear images, but can also be used as a simple microscope with adjustable brightness, comfortable vision, and less fatigue during long-term operation.

The industrial display screen can visually display the hardness value, converted hardness, test method, test force, dwell time, number of measurements, and the test process is intuitive and clear.

The cast aluminum shell is molded in one go, with a stable structure and no deformation. The automotive paint is of high grade and has strong scratch resistance. It remains as bright as new after many years of use.

It is a high-tech product that integrates light, machinery and electricity. It has a novel and beautiful appearance, good intuitiveness, operability and reliability. It is an ideal product for testing Vickers hardness.

The instrument adopts a closed-loop loading control system to improve the accuracy of the test force and the repeatability and stability of the indication value.

Our company has the capabilities of independent research and development, design, production and processing. Our machines provide long-term parts replacement and maintenance and upgrade services.

The main purpose

It is mainly used for small-load Vickers hardness tests in materials research and scientific experiments. It is mainly used to test the hardness of small precision parts, the hardness of surface hardened layers and the depth of effective hardened layers, the surface hardness of coatings, the hardness of sheet materials and thin wires, and blades. Nearby hardness, hardness of dental materials, etc. . Micro-Vickers hardness test is mainly used in metallurgical and metallographic research, used to measure the hardness of each component phase in the metal structure, and used to study the brittleness of refractory compounds, etc. Micro-Vickers hardness test is also used to test extremely small or extremely thin parts, and the thickness of the parts can be as thin as 3μm.

It is also widely used to measure the microhardness of tiny, thin specimens, surface coatings and other specimens and to determine the Knoop hardness of brittle and hard materials such as glass, ceramics, agate, artificial gemstones, etc. It is an ideal choice for scientific research institutions and factories. It is a perfect hardness testing instrument for material research and testing by the quality supervision department. Application: heat treatment, carbonization, quenching hardened layer, surface coating, steel, non-ferrous metals and small and thin parts, etc. Equipped with a Knoop indenter, it can measure the Knoop hardness of brittle and hard materials such as glass, ceramics, agate, and artificial gemstones.

Operating Conditions

Operating temperature: 10℃～35℃;

Relative Humidity: ≤65%;

In an environment without vibration and corrosive media around;

Install horizontally on a solid foundation.

Packing list：Host X1, operation manual X1, flat mouth pliers X1, 10 * scale micrometer eyepiece X1, power cord X1, horizontal adjustment screw X4, fuse X2, Hardness block X2, Accessories box X1, hexagon wrench X1, cross screw driver X1, small level X1, XY test table X1, color filter X2

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
