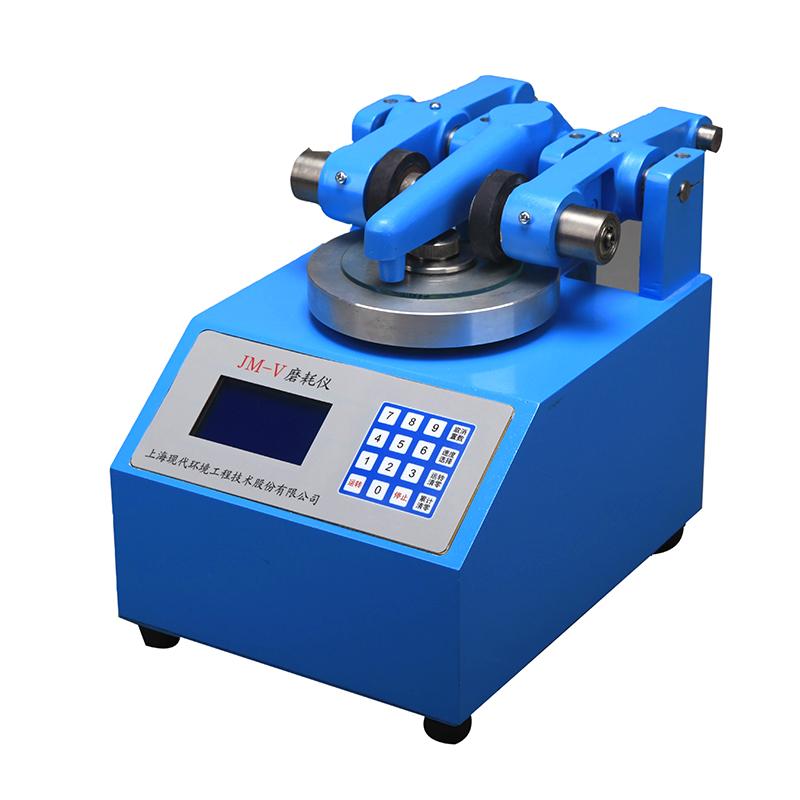

MODERNER JM-V abrasion instrument, can test Coatings/paper/Plastics/Spinning & weaving products, etc., paint film configuration

JM-V

Abrasion instrument (paint film configuration)

Introduction

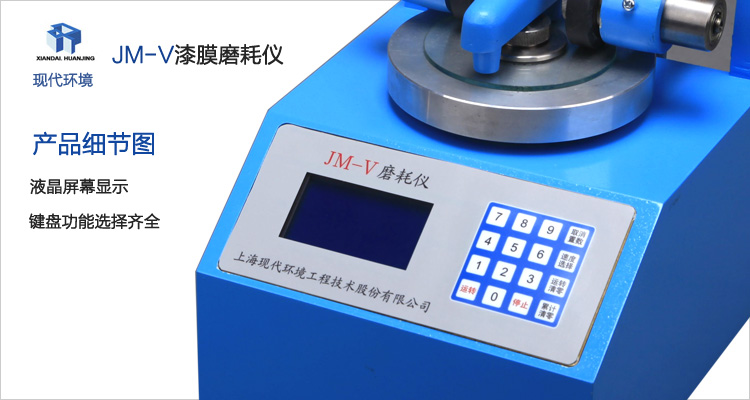

MODERNER JM-V abrasIon Meter (paint film configuration) is used to test the wear resistance of coatings and paints. It is driven by a stepper motor and has programmable control. The LCD displays the working parameters and operating status of the abrasIon Meter. The JM-V abrasIon Meter is manufactured with reference to the GB/1768 paint film wear resistance test parameters, and takes into account the GB/1757 wood wear resistance test parameters, providing a multi-purpose wear resistance test method. The JM-V abrasIon Meter is suitable for testing the wear resistance of various coatings in the laboratory, such as deck paint, floor paint, road paint, etc. It is also suitable for testing the wear resistance of paper, plastics, decorative boards, etc. It is easy to operate and has high performance. Reliable, flexible and easy to use.

Product principle

The abrasIon Meter is to contact two abrasion grinding wheels with a specified distance apart from the specimen sample installed on a horizontal turntable, so that the central axes of the two grinding wheels and the central axis of the turntable are not in the same plane. When the turntable rotates, the abrasive grinding wheel on the left produces friction from the outside to the center of the sample surface, while the abrasive grinding wheel on the right produces friction from the center of the sample surface to the outside. When the turntable rotates continuously, a series of intersecting ring friction marks are formed on the surface of the sample. Using this kind of wear arrangement, the surface of the sample is rubbed in all directions, which avoids the obvious directional defects caused by the friction of the abrasIon Meter that reciprocates in one direction, making the wear evaluation more objective.

The JM-V wear meter is driven by a stepper motor, which avoids rotational speed changes caused by grid Voltage fluctuations, greatly improves the stability of the working speed of the wear meter, and makes wear evaluation more comparable.

plan

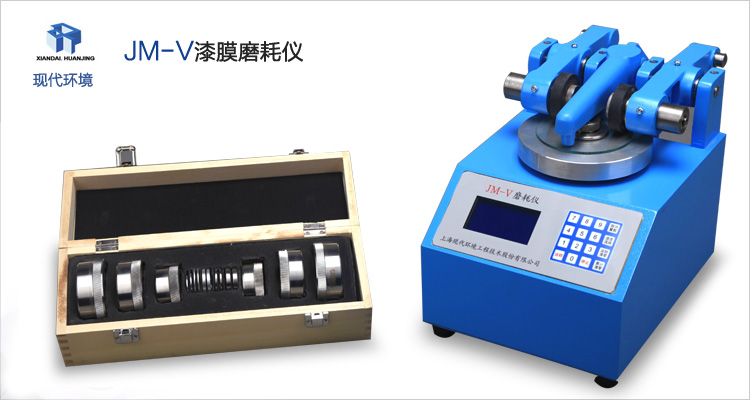

Packing list：Host X1, vacuum cleaner X1, vacuum cleaner interface X1, power cord X1, weight group X1, abrasive wheels (CS10) X2, abrasive wheels (for sand bars) X2, round Glass X5, sand bars X100, round sand skin X10, standard zinc plate X1, glass tube core X1, manual X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
