MODERNER NDJ-5S Digital Rotational Viscometer viscosity range: 1~ 100000mPa · s

SE
Digital display, measurement range 1~ 100000mPa · s, rotor specifications 1 #, 2 #, 3 #, 4 #, Rotor speed 6/12/30/60rpm, reproducibility +/- 0.5% F.S, measurement accuracy +/- 2% F.S, automatically display the selected combination of rotor and rotational speed The maximum viscosity value can be measured, and the automatic scanning function can automatically prompt the better Rotor speed combination according to the test sample viscosity value.
Model：
Certificate
Contact
Details SPEC Con CAT OI
Similar products

Moderner NDJ-5S Digital Rotational ViscometerSPEC

Moderner NDJ-5S Digital Rotational ViscometerDetails

Moderner NDJ-5S Digital Rotational ViscometerPacking list

SKU
NB017490
Display
digital display
Measuring range
1~100000mPa·s
Rotor Specifications
1#、2#、3#、4#
Rotor speed
6/12/30/60rpm
Reproducibility
±0.5%F.S
Measurement Accuracy
±2%
Power
110~230V 50Hz/60Hz
Interface
One R232C communication interface, one temperature probe interface, and one power jack.
Application standard
JJG-2005 standard
Overall Dimensions
300*300*450mm
Weight
5kg
Display information
Automatically displays the maximum Viscosity value for measurement of the selected rotor and rotational speed combination
Automatic scan function
Viscosity of the test sample can automatically prompt the best combination of Rotor velocities
NDJ-5S
Digital Rotational Viscometer
Digital display, measurement range 1~ 100000mPa · s, rotor specifications 1 #, 2 #, 3 #, 4 #, Rotor speed 6/12/30/60rpm, reproducibility +/- 0.5% F.S, measurement accuracy +/- 2% F.S, automatically display the selected combination of rotor and rotational speed The maximum viscosity value can be measured, and the automatic scanning function can automatically prompt the better Rotor speed combination according to the test sample viscosity value.

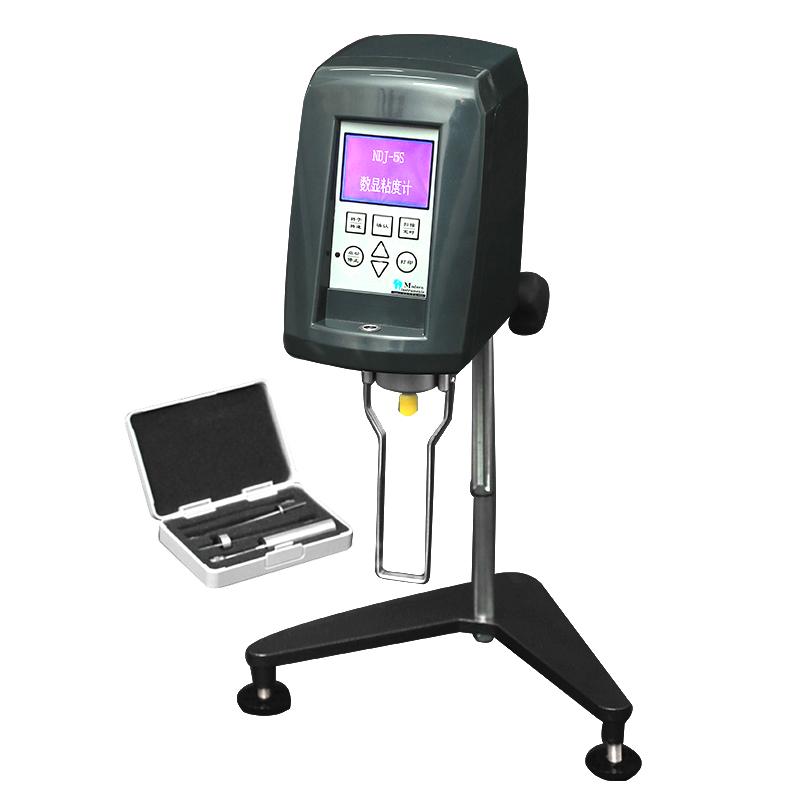

MODERNER NDJ-5S Digital Rotational Viscometer viscosity range: 1~ 100000mPa · s Picture

Overview of NDJ-5S Digital Rotational Viscometer

MODERNER NDJ-5S digital rotary viscometer is an intelligent digital display rotary viscometer using 16-bit high-performance single-chip microprocessor technology. The speed is controlled by a microcomputer, and the old method of gear speed regulation is no longer used. It has higher operating efficiency. As a newly launched Digital Rotational Viscometer in the MODERNER, it is designed and developed based on the advantages and shortcomings of existing Rotational Viscometers. It has the advantages of simple and fast operation, high measurement accuracy, stable speed, wide operating Voltage and anti-interference.

Applications

MODERNER NDJ-5S Digital Rotational Viscometer is widely used in the determination of biochemical products, paints, cosmetics, inks, solvent-based adhesives, latex, pulp, food, starch, coatings and other fields.

Features

1. NDJ-5S Digital Rotational Viscometer is designed and manufactured according to JJG-2005 standard;

2. Adopt large LCD liquid crystal display, with blue backlight function, intuitive and clear;

3. Display information: rotor number, speed, range, viscosity, temperature, opening angle%;

4. The ▲/▼ function keys are used to change the speed and select the rotor number

5. "Speed speed setting" function key, prompting the speed, the cursor flashes

6. "Rotor selection" function key, prompting the rotor number, the cursor flashes

7. "Start, Stop" function key to execute or terminate the current measurement program

8. "OK" function key to confirm the currently selected information

9. "Auto scan" function key, for unknown samples can help users choose the appropriate rotor speed combination measurement

optional accessories

●Ultra-low viscosity rotor (0# rotor)

●Constant temperature circulation bath

●Standard silicone oil

●Temperature probe

●Glass jacket cup

●Software

FAQ
QI need to measure low viscosity samples, can this instrument support it?
A Yes! NDJ-5S standard No. 1-4 rotor covers the range of 1-100,000 mPa · s, and can also be equipped with No. 0 ultra-low viscosity rotor, which can accurately measure solvents, dilute glues and other low viscosity fluids.
QMeasure the viscosity of latex, is this Viscometer suitable?
A Latex viscosity can be measured, please pay attention to choose the viscosity range suitable for your sample.
QPrinting ink viscosity What instrument is generally recommended to measure viscosity?
A Hello, it mainly depends on the actual viscosity of your Printing ink. If the viscosity is above 140ku, you can consider choosing the NDJ series Viscometer.
QCan the NDJ-5S digital rotational viscometer test the temperature of the sample?
A Hello, yes, but a semiconductor temperature probe is required.
QCan the rotational viscometer of the Hyundai and Puxen NDJ-5S be used instead?
A Hello, it is generally OK. The test viscosity range of the two is the same.
QAre all digital rotational viscometers available for inspection in the JJG1002 standard?
A Not necessarily, but this NDJ-5S digital rotational viscometer can be considered.
QModern environment NDJ-5S No. 0 rotor for testing what viscosity of the sample?
A Hello, when your measurement is lower than 15cp, it can be used with 0 #rotor for measurement.
