METASH UV-6000PC UV-Visible Spectrophotometer with PC type self-equipped software

METASH UV-Visible Spectrophotometer UV-6000PC comes standard with PC software, is a dual beam of light UV-Visible Spectrophotometer, UV-6000PC uses a large size LED LCD display.
Model：
Certificate
Contact
Details SPEC CAT

METASH UV-6000PC UV-Visible SpectrophotometerSPEC

METASH UV-6000PC UV-Visible SpectrophotometerDetails

METASH UV-6000PC UV-Visible SpectrophotometerPacking list

SKU
NB017546
Optical inspection system
Double beam of light ratio monitoring
Light spectrum Bandwidth
1.8nm
Wavelength range
190~1100nm
Wavelength Precision
±0.5nm
Wavelength Repeatability
≤0.2nm
Photometric range
0~200%T、-0.4-4.0A、0~9999C
Photometric Precision
±0.2%T(0-100%T)；±0.002Abs(0-0.5Abs)；±0.004Abs(0.5-1.0Abs)
Luminosity Repeatability
±0.15%T(0~100%T)；0.001A(0~0.5A)；0.002A(0.5~1.0A)
stray light
≤0.05%T
Noise level
±0.0005A
Stability
0.001A/h@500nm
Baseline flatness
±0.001A
Interface
USB port
printout
Parallel port
monitor
320 * 240 check point array large screen LCD liquid crystal display
Light source
Tungsten lamp, deuterium lamp
Detector
Imported silicon photodiode
Power Supply
AC 220V/50Hz或110V/60Hz
Dimensions
460*380*180mm
Weight
20kg
PC software
Standard
UV-6000PC
UV-Visible Spectrophotometer

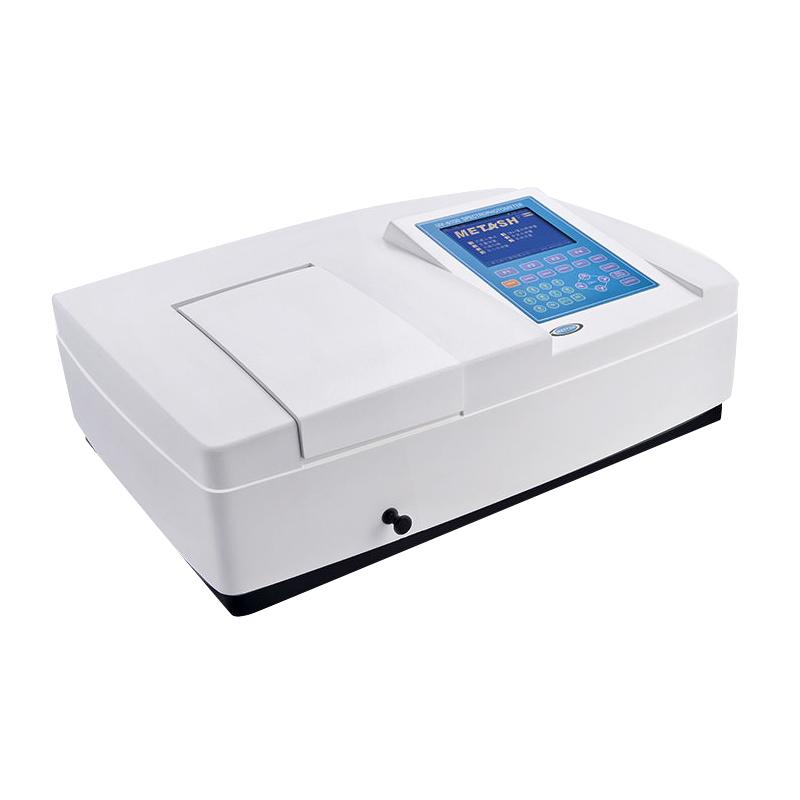

METASH UV-6000PC UV-Visible Spectrophotometer with PC type self-equipped software Picture

Instrument Features and Functions:

◆The double beam proportional monitoring optical system enables the photometer to dynamically monitor the changes of the light source during the measurement process, offset the fluctuation of the light source, and improve the stability of the instrument

◆ Using 6-inch LED dazzling LCD display, the display is clear and the information is complete

◆ Powerful data analysis function, the host can independently complete photometric measurement, quantitative measurement, spectral scanning, kinetics, DNA/protein testing, and multi-wavelength measurementTrial and data printing and other functions

◆ Suspension optical system design, the overall optical path is independently fixed on a 16mm thick aviation aluminum optical base, and the deformation of the bottom plate and the external vibration are against the lightThe system has no effect, which greatly improves the stability and reliability of the instrument

◆The main components are imported configuration, so that the stray light of the instrument is lower, and the stability and reliability are stronger

◆ Professional analysis software, which can realize photometric measurement, quantitative measurement, spectral scanning, kinetic analysis, DNA/protein testing, multi-wavelength testing, and data playingprinting and other functions

◆The software follows the use specifications of GLP/GMP laboratory, and has built-in perfect user management, logging, data storage and traceability and report output functions

◆It is convenient to use automatic eight-cell racks, microcuvette racks, thermostatic autosamplers, reflection accessories, integrating spheres and other accessories to expand the use range of the instrumentand areas of application

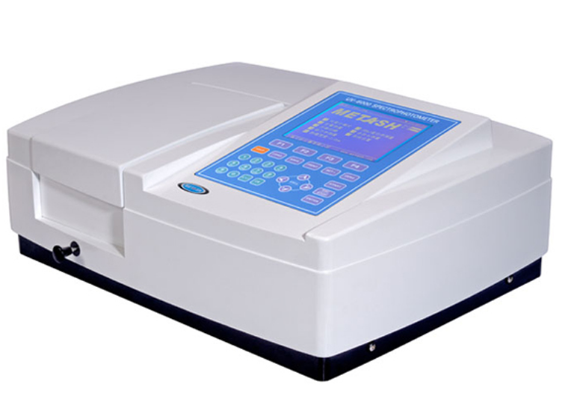

Yuanxi UV-6000PC UV-Vis Spectrophotometer

Comparison of series parameters

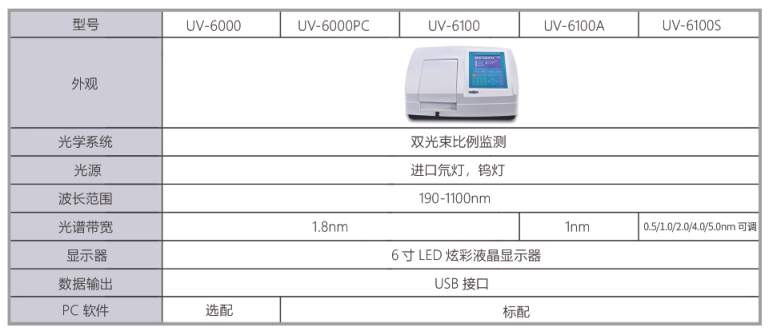

Comparison of the parameters of the same series of UV-6000PC ultraviolet-visible Spectrophotometer


FAQ
QDo you have the UV-Visible Spectrophotometer involved in GB/T26810?
A The UV-6000PC UV-Visible Spectrophotometer will do
