METASH UV-8000S UV-Visible Spectrophotometer Automatic Adjustable Light spectrum Bandwidth

METASH UV-Visible Spectrophotometer UV-8000S Light spectrum Bandwidth 0.5nm, 1nm, 2nm, 4nm (adjustable), is a dual beam of light ultraviolet Spectrophotometer , UV-8000S uses imported deuterium lamp, tungsten lamp light source.
Model:

METASH UV-8000S UV-Visible SpectrophotometerSPEC

METASH UV-8000S UV-Visible SpectrophotometerDetails

METASH UV-8000S UV-Visible SpectrophotometerPacking list

SKU
NB017552
Optical inspection system
Double beams of light
Light spectrum Bandwidth
0.5, 1.0, 2.0, 4.0nm automatically adjustable
Wavelength range
190~1100nm
Wavelength Precision
+/- 0.1Nm (D2 656.1nm ), +/- 0.3nm full band
Wavelength Repeatability
≤0.1nm
Photometric range
0~200%T、-0.4-4.0A、0~9999C
Photometric Precision
±0.2%T(0~100%T);±0.002Abs(0~0.5Abs);±0.004Abs(0.5~1.0Abs)
Luminosity Repeatability
≤0.1%T(0~100%T);0.001A(0~0.5A);0.002A(0.5~1.0A)
stray light
≤0.05%T
Noise level
±0.0004A
Stability
0.0004A/h@500nm
Baseline flatness
±0.0004A/h(500nm)
Interface
USB port
printout
Parallel port
monitor
320 * 240 check point array large screen LCD liquid crystal display
analysis software
Standard
Light source
Tungsten lamp, deuterium lamp
Detector
Imported silicon photodiode
Power Supply
AC 220V/50Hz 或 110V/60Hz
Dimensions
625*430*210mm
Weight
28kg
UV-8000S
UV-Visible Spectrophotometer

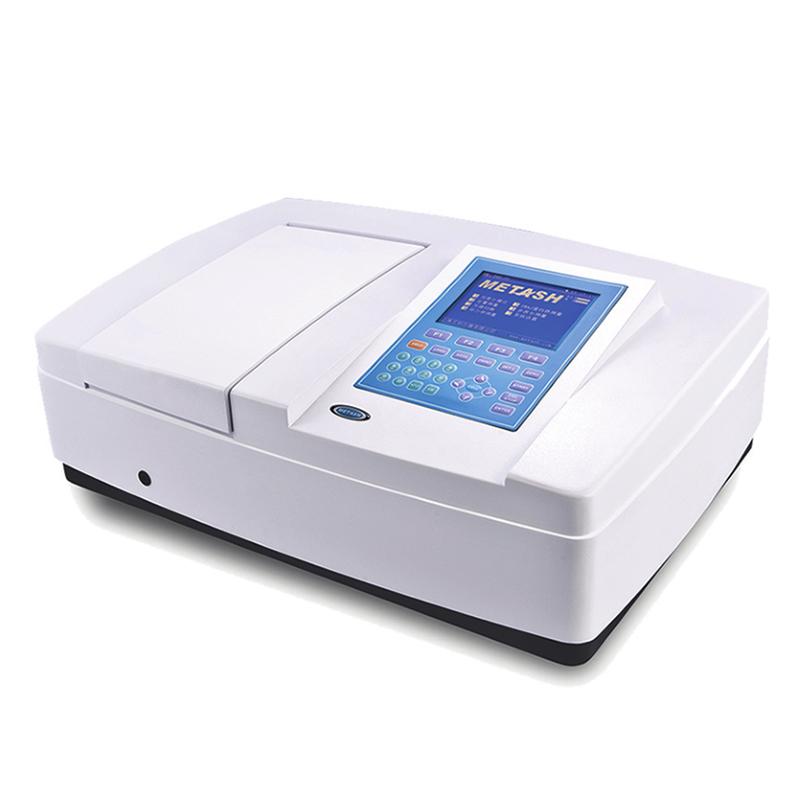

METASH UV-8000S UV-Visible Spectrophotometer Automatic Adjustable Light spectrum Bandwidth Picture

Instrument Features and Functions:

◆ Dual-path, dual-beam optical system, higher instrument resolution, lower stray light, stronger stability and reliability, and more accurate analysis;

◆ Using 6-inch LED dazzling LCD display, the display is clear and the information is complete;

◆The host can independently complete the functions of photometric measurement, quantitative measurement, spectral scanning, kinetic analysis, DNA/protein testing, multi-wavelength testing and data printing;

◆ Suspension optical system design, the overall optical path is independently fixed on a 16mm thick aviation aluminum optical base, the deformation of the bottom plate and the external vibration have no impact on the optical system, thus improving the instrumentstability and reliability of the device;

◆ The use of original imported Detectors, deuterium lamps, tungsten lamps and other key components to ensure that the instrument is durable;

◆The use of the original imported grating not only improves the energy of the ultraviolet region, but also makes the stray light of the instrument lower;

◆ Professional analysis software, which can realize photometric measurement, quantitative measurement, spectral scanning, kinetic analysis, DNA/protein testing, multi-wavelength testing, data printing and other functions;

◆The software follows the use specifications of GLP/GMP laboratory, and has built-in perfect user management, logging, data storage and traceability and report output functions;

It can easily use the automatic eight-cell rack, micro cuvette holder, thermostatic autosampler, reflection accessories, integrating spheres and other accessories, which expands the scope of use and application fields of the instrument.

Illustration of the UV-8000S UV-VIS Spectrophotometer

Comparison of series parameters

Comparison of the parameters of the same series of ultraviolet-visible Spectrophotometer  UV-8000S

FAQ
QDoes the METASH UV-Visible Spectrophotometer meet the JB/T6777 standard?
A The UV-8000S UV-Visible Spectrophotometer can be referred to
