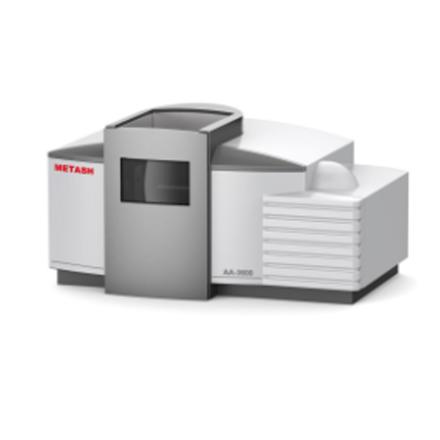

METASH AA-3300 Flame/graphite furnace atomic absorption Spectrophotometer Specifications

Light spectrum Bandwidth	0.1nm、0.2nm、0.4nm、1.0nm、2.0nm
Wavelength range	190~900nm
Wavelength Precision	±0.1nm
Wavelength Repeatability	0.1nm
Photometric range	0.001~2.000Abs、0.0001~2.0000Abs
Baseline flatness	0.004A/30min
Light source	Hollow cathode lamp
Detector	High Sensitivity Imported Photomultipliers
lamp holder	Automatic switching of six lamp holders
Lamp current	Dual loop steady flow Power Supply
Optical inspection system	1800/mm import grating
device	C-T
Background correction	Deuterium Hollow cathode lamp Background correction
Combustion head	All titanium combustion head, 0.6mm * 100mm titanium steel
Nebulizer	Metal Glass Nebulizer
Ignition method	Electronic torch ignition
Characteristic concentration	0.02μg/mL/1%(Cu)
Detection limit	0.002μg/mL（Cu）
Repeatability	RSD≤1.0%
security	Acetylene gas leakage alarm, real-time flame monitoring, automatic flameout protection, automatic power-off protection when Miscellaneous abnormalities occur
gas control	Automatic Gas Control system
Measuring method	Atomic absorption method, hydride method, graphite furnace method, emission method
Concentration Measurement mode	Standard Linear dispersion method, Standard addition method, Absorption method
Number of repeability measurements	Any number of times, can calculate standard deviation, relative standard deviation, Precision

Host X1, air compressor X1, operating software X1, Hollow cathode lamp X3, Nebulizer X2, screw driver X1, spare parts box X1, air pipe (5 meters) X1, acetylene pipe (5 meters) X1, waste liquid pipe X1, three-core power cord X1, dust cover X1, host signal line X1, acetylene pipe clip X3, acetylene gas source pipe (3 meters) X1, 3A fuse X1, 1.5A fuse X1, certificate X1, warranty card X1, packing list X1
