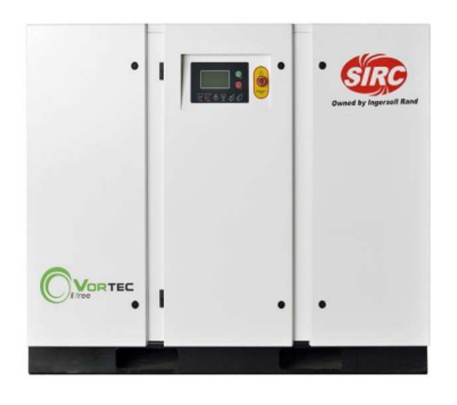

INGERSOLL RAND VT7-10 oil-free scroll compressor output power 3700Wx2

VT7-10

Oil free scroll compressor

Description

• Standard Air Compressor scope of supply

• High-precision scroll compression, imported by the whole machine

• Pure and oil-free, SO CLASS O certified

• The air-cooled 40 degree ambient temperature design meets the requirements of all-weather operation

• The silent box enclosure encloses the noise and can be used directly in the laboratory/clinic and other fields

• The main engine & motor adopts modular design, each module is 22/3.7KW

• The high power is combined through multiple modules, and when the gas demand is low, the modules will automatically rotate and rest to achieve the effect of energy saving

• Large-screen computer controller, Chinese/English language quotient can be selected, and the operation interface is friendly

• R5485 communication interface is reserved, which can realize automatic control or remote control

• It can be equipped in a variety of working states to meet the needs of production rhythm changes

• Model number C indicates a built-in 38L stainless steel gas tank

• Standard E3 motor, efficiency increased by 3%

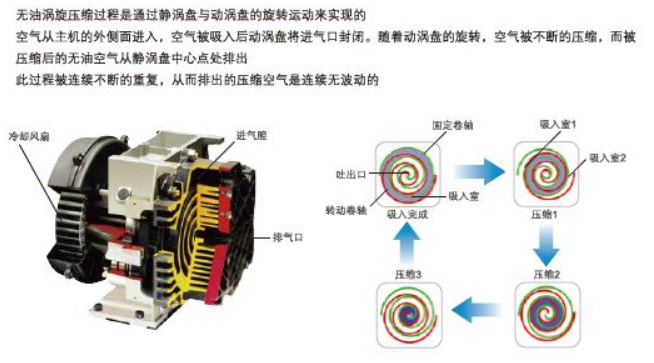

High-quality compression module

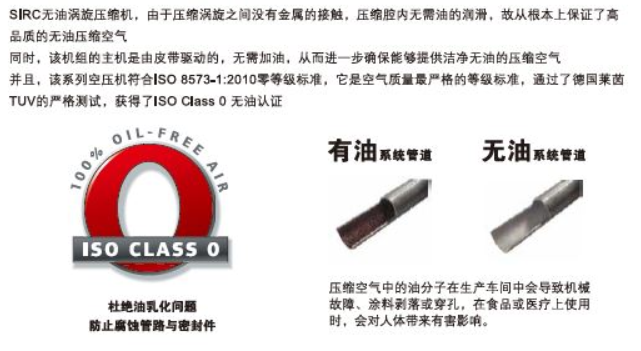

Clean, oil-free compressed air

Eight advantages of oil-free vortex Air Compressor

1. Small size and space-saving


2. No wearing parts, long life


3. Minimal parts High reliability


4. No metal friction and less maintenance


5. Lowest noise Nearby use


6. Completely oil-free compression and pollution-free


7. Wide applicability to meet all walks of life

8. Zero-emission and green

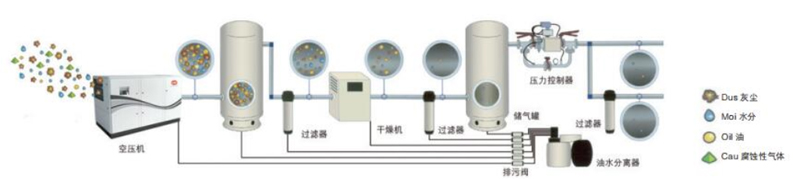

Diagram of complete supporting facilities

Ingersoll Rand Air Compressor complete supporting facilities map (each accessory can be purchased separately)

Packing list：machine X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
