INGERSOLL RAND D66VEi Micro-heat regenerative dryer 1100L/min Air consumption 8%

Model：
Contact
Details SPEC CAT

Ingersoll Rand D66VEi Micro-heat regenerative dryerSPEC

Ingersoll Rand D66VEi Micro-heat regenerative dryerDetails

Ingersoll Rand D66VEi Micro-heat regenerative dryerPacking list

SKU
NB017700
Drying method
Adsorption
Rated intake pressure
0.7MPa
Intake temperature
≤45℃
Working pressure
1.0MPa
Pressure dew point
-40℃
regeneration air consumption
8%
Heating power
0.5KW
Flow rate
1100L/min
Dimension
730*480*1550mm
Interface size
R3/4BSPT
Weight
145kg
D66VEi
Micro-heat regenerative dryer

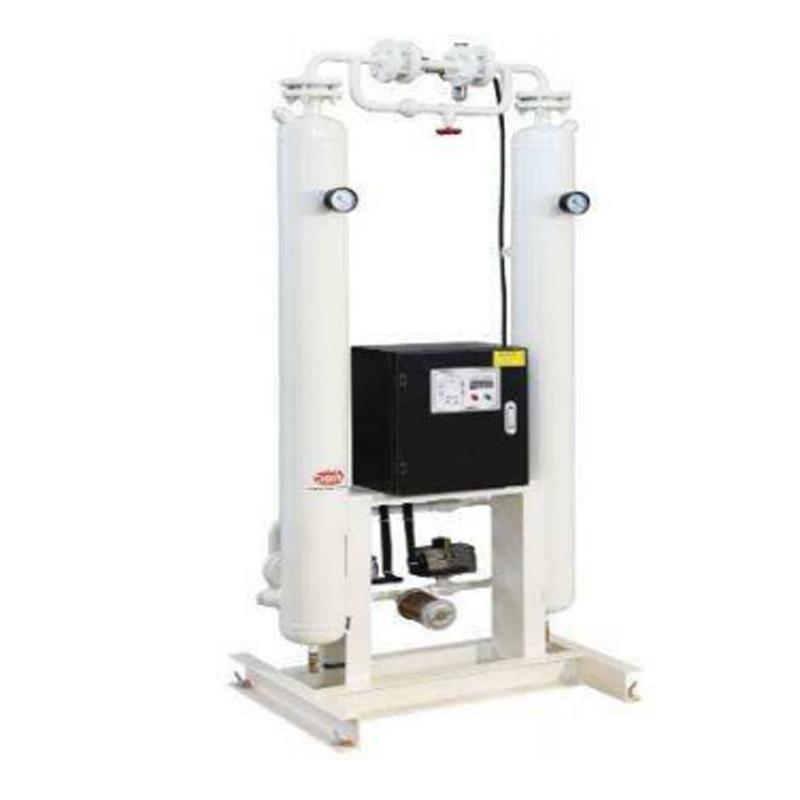

INGERSOLL RAND D66VEi Micro-heat regenerative dryer 1100L/min Air consumption 8% Picture

Description

  • Effective reactive adsorbent, strong adsorption capacity, long service life

  • Single-chip intelligent control system and reasonable switching time design ensure the stable quality of the outlet gas source

  • The unique simplified structure design can save 98% of the adsorption heat, improve the adsorption and lysis capacity, and make the regeneration more effective

  • The good airflow distribution design allows the gas to pass through the adsorption layer evenly and avoid cavitation

  • The rated inlet pressure is 0.7Mpa, the inlet temperature ≤45°C, and the maximum working pressure is 1.0Mpa

  • Pressure dew point (-20C)

  • - VLi heatless regenerative dryerRegeneration gas consumption 14%

  • - VEi micro-heat regenerative dryer Regeneration air consumption: 8%

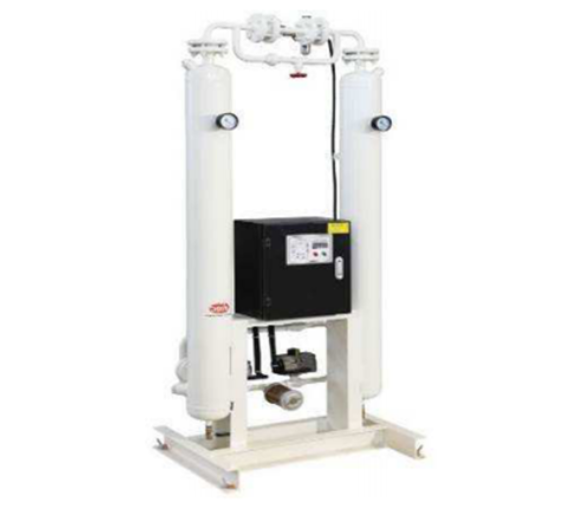

Ingersoll Rand D66VEi Micro Heat Regenerative Dryer 1100L/min Air Consumption 8%

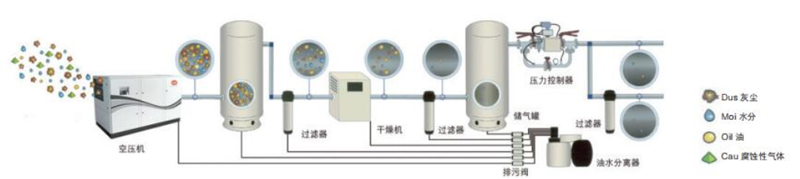

Diagram of complete supporting facilities

Ingersoll Rand Air Compressor complete supporting facilities map (each accessory can be purchased separately)

Ingersoll Rand Air Compressor complete supporting facilities map (each accessory can be purchased separately)
