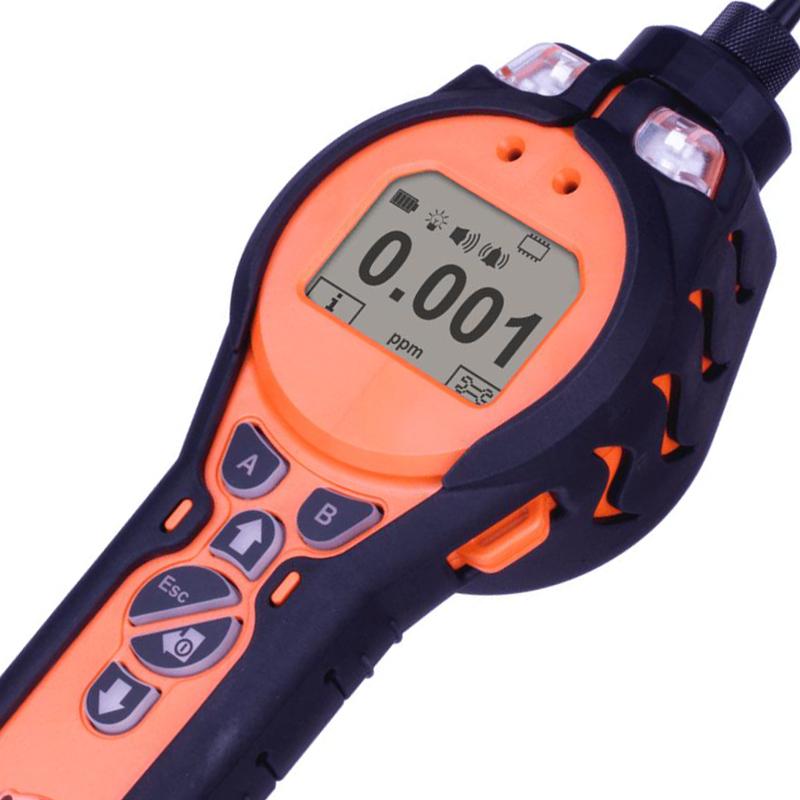

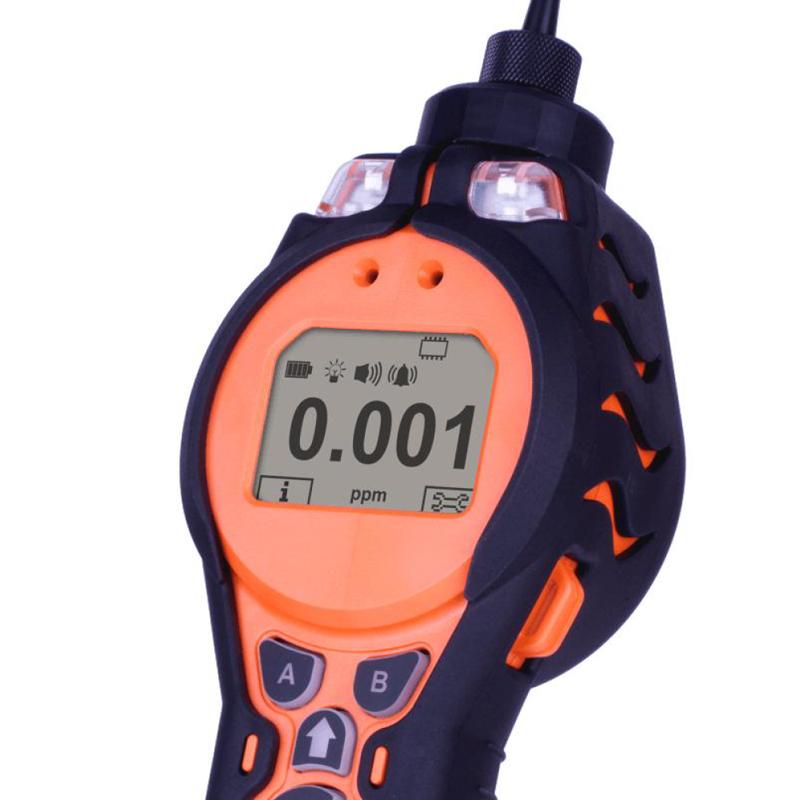

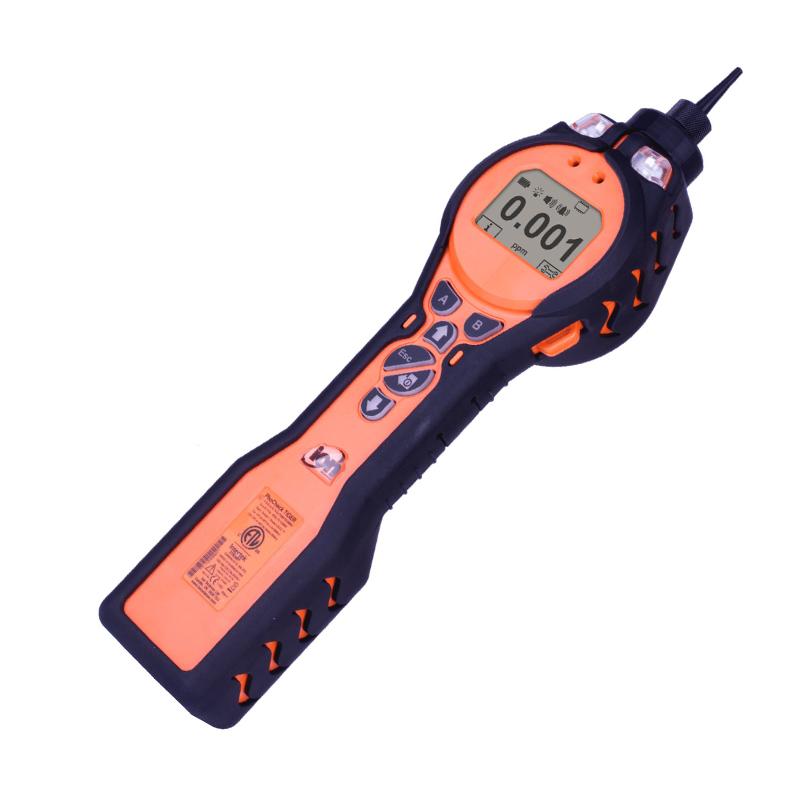

UK ION SCIENCE PhoCheck Tiger PCT-LB-06 VOC Detector lithium battery basic data type PPB

PCT-LB-06

VOC Detector

The PhoCheck Tiger Portable VOC Gas Detector features revolutionary PID technology, a wide detection range and great software features that are ready to use right out of the box!

peculiarity

• Grid electrode technology

• Dynamic detection range for specific volatile organic gases: 1ppb~20,000ppm

• Easily replaceable mini PID Detector, electrode stack and lamp

• Easier to use and more intuitive

• There is no need for complicated installation procedures to connect to your computer

• The battery can be replaced in hazardous areas

• Optional full upgrade capabilities

• Data storage function selection

• The battery life can be up to 24 hours

• ATEX, IECEx and CUL certified

• Sturdy protective design, removable rubber jacket

• Loud 95 dB alarm sound

• Bright LED flashing lights and vibration alarms

• Minimal maintenance

PhoCheck Tiger - PCT Tiger Organic Gas Detector, the new generation of PhoCheck from the United Kingdom,1ppb - 20,000 ppm powerful detection function, tiger head and tiger brain form factor,Popular with many in the market!

With mini-PID technology, PhoCheck Tiger is the market's specialty photoion for the detection of volatile organic compounds (VOCs).Chemical Detector (PID). Users can choose from a basic instrument or upgrade the instrument to access more optional features.

Recognized as a good PID

Ion Science's grid electrode technology is:Independently proven to be a very good PID with fast response and accurate displaywhile effectively reducing the effects of humidity and pollution. instrument at high humidityThe superior performance in the environment is highly good, so that other detection characteristics are not affected.

Dynamic detection range: 1ppb to 20,000ppm

Offers a wide range of detection ranges. Critical levels of toxic gases can be detected at the ppb levelto 20,000ppm. Readings are displayed in mg/m3 or ppm.

Ready to use

The boot procedure is simple, just passThe computer sets up basic functions.

Unique 6-pin mini PID detection chamber

toolAnti-fouling design significantly extends uptime.Low-cost filters can be easily replaced in secondscores, lamps and electrode stacks.

Field-replaceable Ion lithium batteries are long-lasting

Used for up to 24 hours when fully charged. Even in hazardous environments, the battery can be safely replaced. The fast charging of the battery allows the instrument to be fully charged in 6.5 hours. 1.5 hours of charging, 8 hours of use. Dry batteries are also available as an option.

2-second quick response

Have the fastest response and zeroing speed on the market!

Responds to more than 770 gases

Calibration factors for more than 770 gases are included.

Faster USB communication than on the market

Connect directly to your computer via USB.

Optional sound, light and vibration alarms

The instrument has 2 built-in horns, and the sound volume can reach 95dB; Bright LED flashing lights and vibration alarms show the gas condition on site. Each function can be freely turned off or down as needed.

Low flow sensor

When the flow rate is lower than 100cc/min, the independent flow sensor of the instrument will send an alarm to make the instrument safer.

Simple, one-handed operation

The PhoCheck Tiger is lightweight, has a harmonious design, has a comfortable handle and can be fitted with a wrist strap.

Simple keystrokes

and icon menu display to adapt to market demand. The large buttons make it easy to operate even with thick gloves.

Large, clear backlit display

Simple navigation in any lighting condition.

Bright LED flashing lights

The probe can be placed directly into a dark area.

The intuitive PC Tiger software provides a USB driver

Users who want to set up the instrument and download data can set one or more functions from a single screen.

Lowest running costs on the market

Low-cost single-use parts, PID lamps and cartridges.

Intrinsically safe

The instrument is certified for safety in Europe, Canada and the United States and can be used in flammable and explosive areas.

Industrial applications

PhoCheckTiger is the most reliable and new VOC Detector on the market.The instrument has a wide range of applications, including: environmental monitoring, petrochemical industry,Rapid response to hazardous substances and access to confined spaces, etc.

Suggested areas of application

• environmental monitoring

• Soil contamination detection

• VOCs from landfills

• IAQ and industrial organic gas monitoring

• Confined space STEL & TWA measurements

• Storage leaks of fuel and chemicals

• Atmospheric Monitoring & Chemical Tracking

• Military police, firefighting

• Quick response WMD

• Filtration monitoring of dry spaces and air conditioners

• VOC leak detection

• Petrochemical

• Inspection and quarantine

• Scientific, educational and research institutions

• Fuel leaks at the depot

• Indoor VOC detection in automobiles

• Gas leaks in the lab

• Environmental remediation after a leak

• Gas station leak detection

• Monitor and track gas/glove tank tests

• Wing tank inlet fuel leak detection

• medical gas leaks, etc

PCT-LB Series Table

remark

Upgrade feature selection

A full upgrade can be performed from the user's computer!

PhoCheck Tiger is a fully upgradeable app that can be optionally upgradedInstrument. The basic upgradable features include data storage, health and safety mode, and PPB options.

Data Storage

With the addition of data storage, you will have the following performance features in your instrument:

120,000 date-time stamped data can be stored; project storage; single-point storage;

timed storage; continuous storage; alarm storage; Regional storage.

Health and safety mode

Adding a health safety mode includes:

• Time-weighted average (TWA) and short-term exposure (STEL)

• Optional standards: NIOSH, OSHA and EH40




ppb performance

Add the widest ppb range on the market: VOC's measures range from 1ppb to 20,000ppm

(Note: VOC measurements for basic instruments are from 0.1 ppm to 20,000 ppm)

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
