DUORUI DR-600 Point Gas Detector, Standard, Combustible 0-100% LEL

DUORUI DR-600 point Gas Detector is used to detect the concentration of combustible gas, the range is 0-100% LEL, DR-600 point Gas Detector adopts diffusion Sampling method, the error of indication is +/- 5% FS.
Certificate
Contact
Details SPEC OI

DuoRui DR-600 (standard type) Point Gas DetectorSPEC

DuoRui DR-600 (standard type) Point Gas DetectorDetails

DuoRui DR-600 (standard type) Point Gas DetectorPacking list

SKU
NB017767
Range
0~100%LEL
Error of indication
±5%FS
Sampling method
diffusion
Sensors principle
Catalytic combustion
Response time
T90≤60s
Shell material
die casting aluminum
operating temperature
-40~70℃
service life
2-3 years (depending on the environment)
Cable Specifications
RVVP3×1.0mm2
Dimensions
180*140*75mm
Resolution
0.1%LEL、1%LEL
Response time
T90≤60s
Shell material
die casting aluminum
operating temperature
-40~70℃
Operating Time
24H online work
Electrical interface
M20 * 1.5 thread
Signal transmission distance
≥ 1000 meters
Output signal
4-20Mas or RS485
Explosion-proof sign
Ex d IIC T6Gb
Protection level
IP65
Metrology authentication
CMC
Working Power
2.5w
Power Supply
24VDC
Display
No display
Alarm mode
No alarm
Installation method
Fixing brackets, wall hangings, etc
DR-600 (standard type)
Point Gas Detector

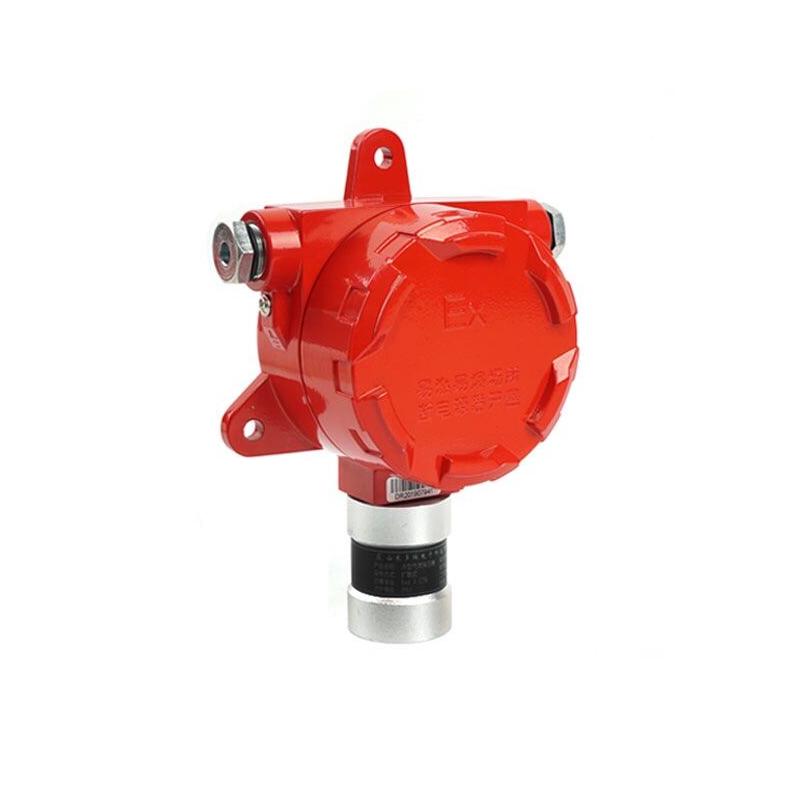

DUORUI DR-600 Point Gas Detector, Standard, Combustible 0-100% LEL Picture

Introduction

DR-600 (Standard Type) is a point Gas Detector with diffusion sampling method and catalytic combustion detection principle, the range of this Gas Detector is 0-100%LEL, and the indication error is ±5%FS.

DR-600 (Standard) Point Gas Detector1

DR-600 (Standard) Point Gas Detector2

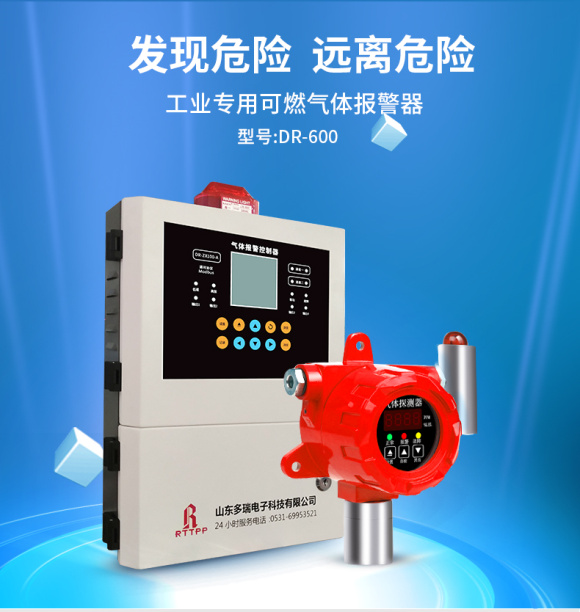

DR-600 (Standard) Point Gas Detector3

DR-600 (Standard) Point Gas Detector 4

DR-600 (Standard) Point Gas Detector5

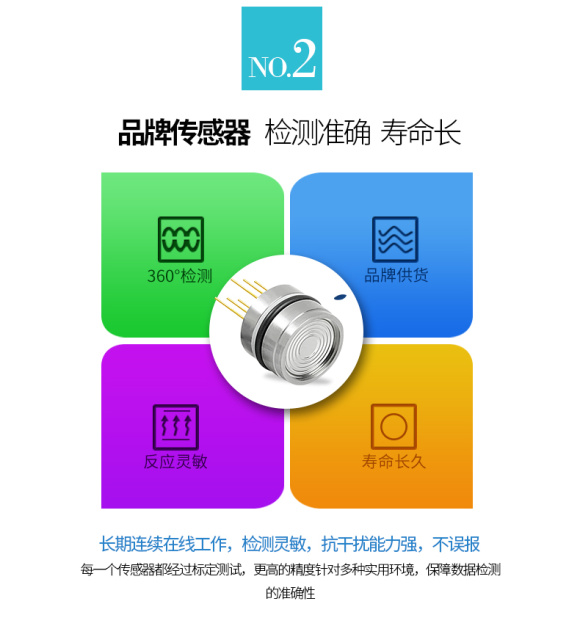

DR-600 (Standard) Point Gas Detector6

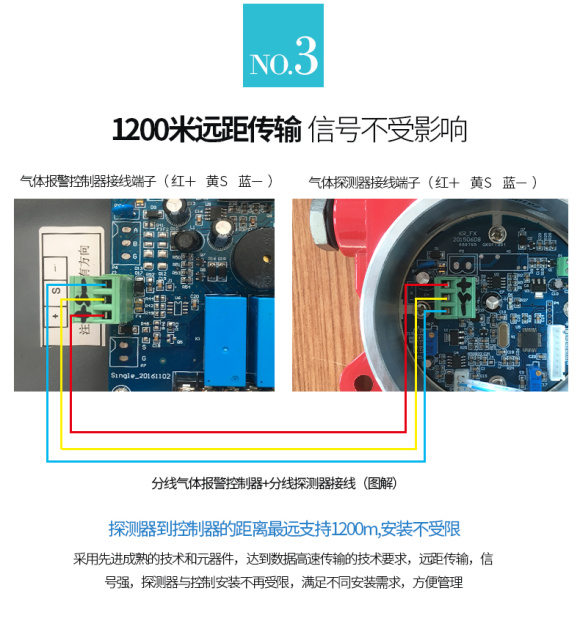

DR-600 (Standard) Point Gas Detector7

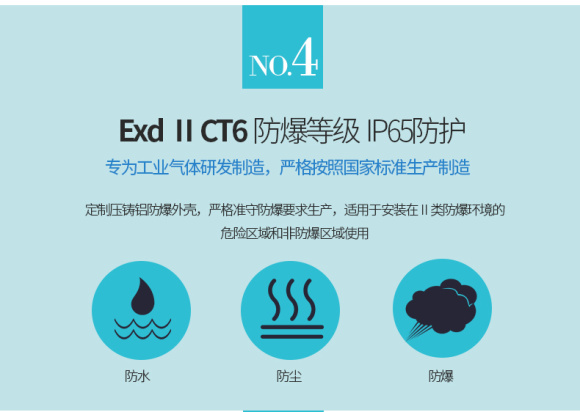

Dorui DR-600 (Standard) Point Gas Detector 8

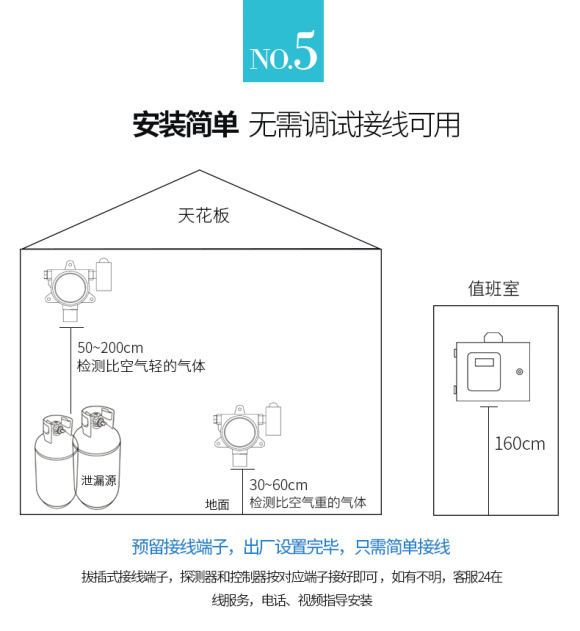

DR-600 (Standard) Point Gas Detector 9

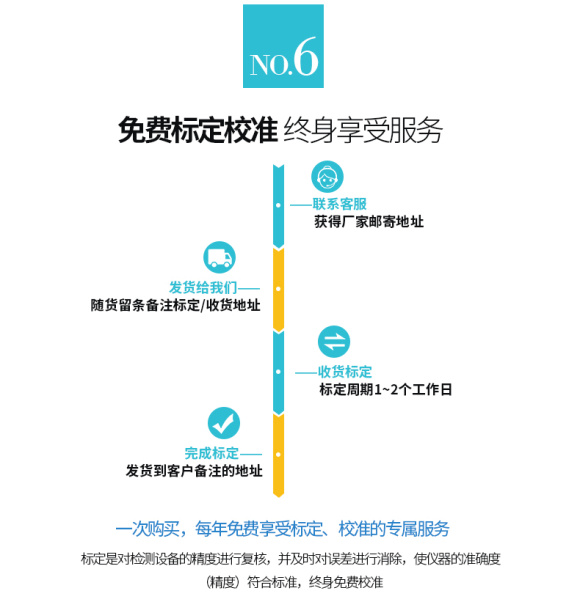

DR-600 (Standard) Point Gas Detector 10

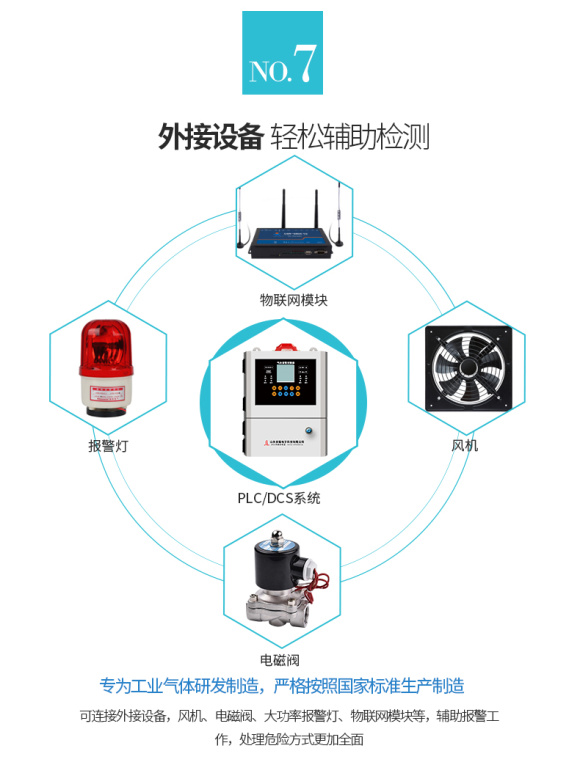

DR-600 (Standard) Point Gas Detector 11

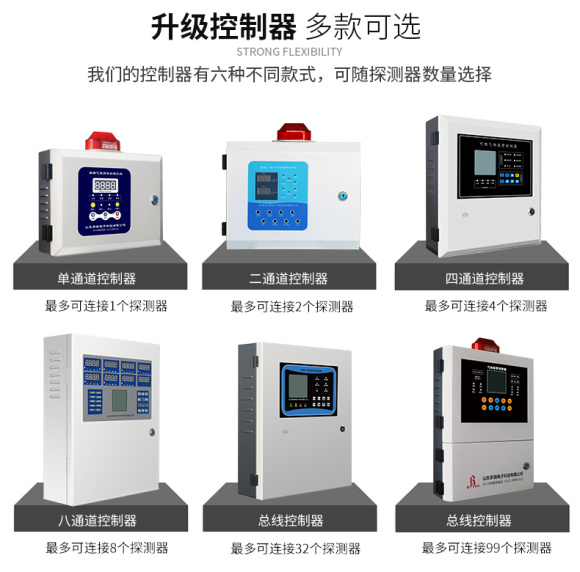

DR-600 (Standard) Point Gas Detector 12

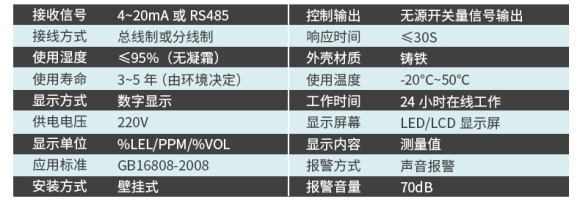

DR-600 (Standard) Point Gas Detector 13

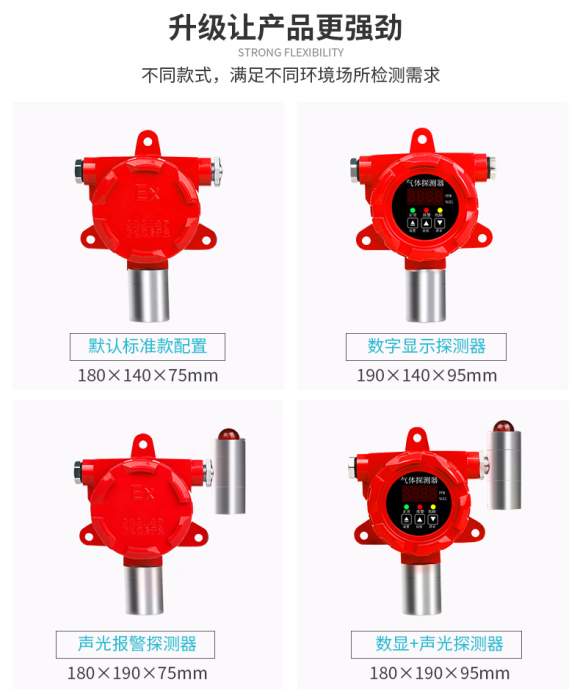

DR-600 (Standard) Point Gas Detector 14

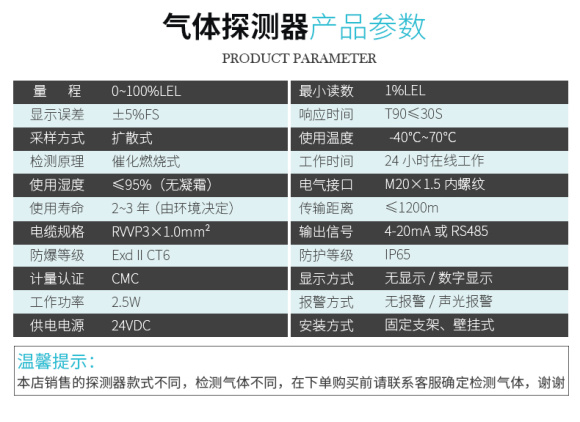

DR-600 (Standard) Point Gas Detector 15

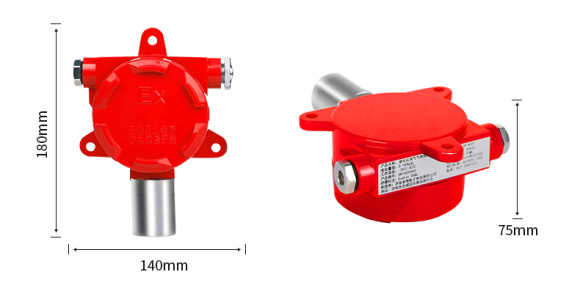

DR-600 (Standard) Point Gas Detector 16

DR-600 (Standard) Point Gas Detector 17

DR-600 (Standard) Point Gas Detector 18


FAQ
QCan this DR-600 be used with a single purchase?
A DR-600 standard combustible gas detector is installed in the field to detect gas concentration, because the standard model itself can not show the alarm, you need to connect the host or DCS system, through the host or DCS display and alarm, you only buy the detector now, can not display and alarm, no practical significance, if you do not want the host or do not connect the DCS system, then you need to provide 24V power to the probe on site, and the detector itself also needs to be with alarm and display function
QMeet the requirements of GB3836.1 point gas detector
A DR-600 (standard) point gas detector, please refer to it.
