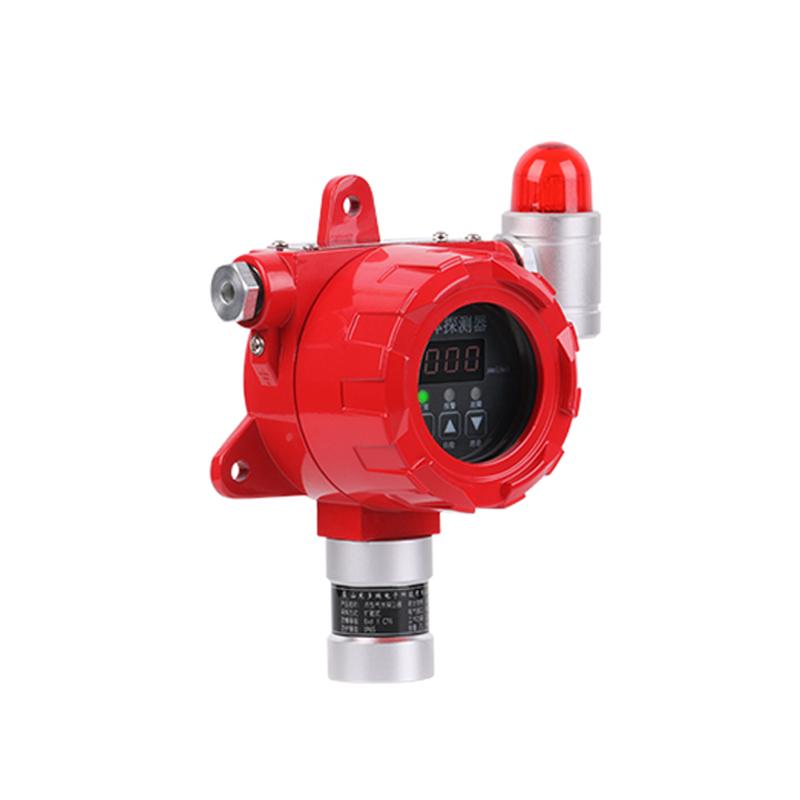

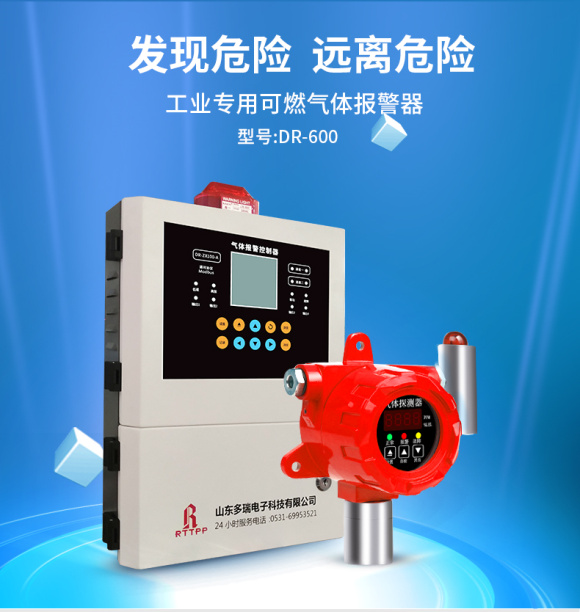

DUORUI DR-600 point Gas Detector, digital display sound and light model, flammable gas 0-100% LEL

DUORUI DR-600 point Gas Detector is used to detect gas concentration fixed Gas Detector, with LCD screen, DR-600 with sound and light alarm function, DR-600 point Gas Detector range of 0-100% LEL.

Model：

DR-600 (digital display sound and light model)

Certificate

DuoRui

Contact

Details SPEC OI

DuoRui DR-600 (digital display sound and light model) Point Gas DetectorSPEC

DuoRui DR-600 (digital display sound and light model) Point Gas DetectorDetails

DuoRui DR-600 (digital display sound and light model) Point Gas DetectorPacking list

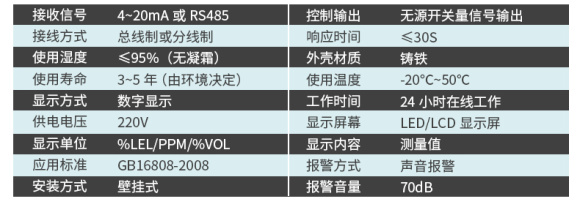

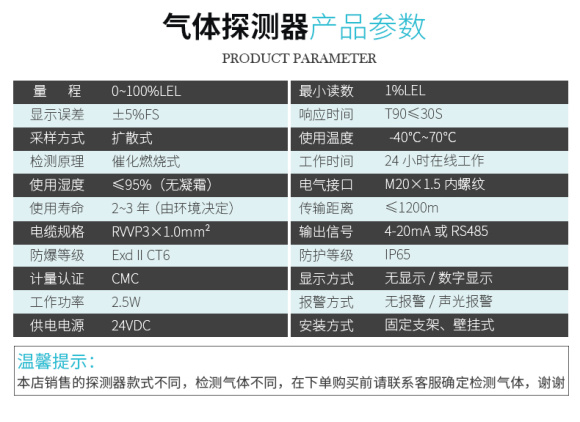

SKU: NB017770

EX-range: 0-100%LEL

Error of indication: ±5%FS

Sampling method: diffusion

Sensors principle: Catalytic combustion

Response time: T90≤60s

Shell material: die casting aluminum

Operating temperature: -40~70℃

service life: 1-2 years (depending on the environment)

Cable Specifications: RVVP3×1.0mm2

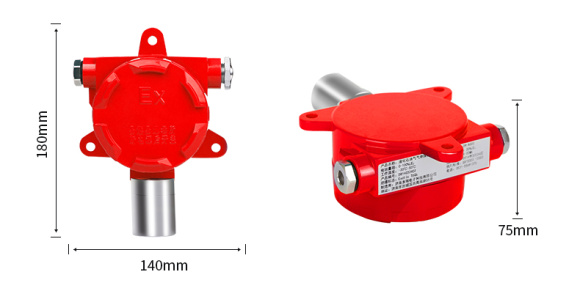

Dimensions: 180*190*95mm

EX- resolution: 0.1%LEL、1%LEL

Response time: T90≤60s

Shell material: die casting aluminum

Operating temperature: -40~70℃

Operating Time: 24H online work

Electrical interface: M20 * 1.5 thread

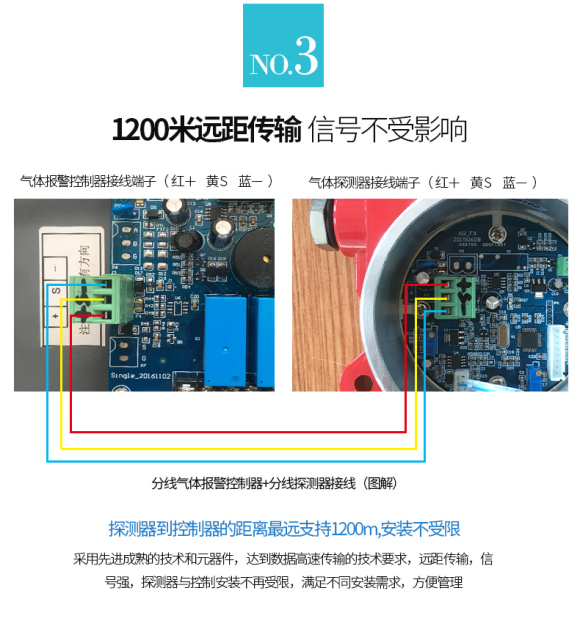

Signal transmission distance: ≥ 1000 meters

Output signal: 4-20Mas or RS485

Explosion-proof sign: Ex d IIC T6Gb

Protection level: IP65

security certification: CMC

Working Power: 2.5w

Power Supply: 24VDC

Display: LED display

Alarm mode: Sound and light alarm

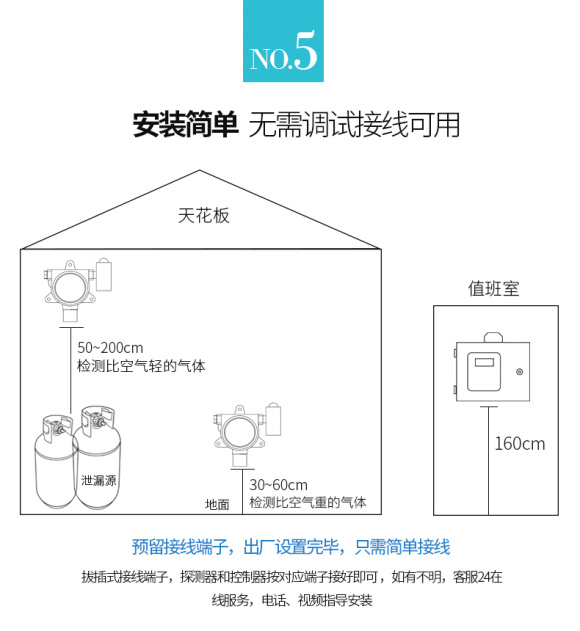

Installation method: Fixing brackets, wall hangings, etc

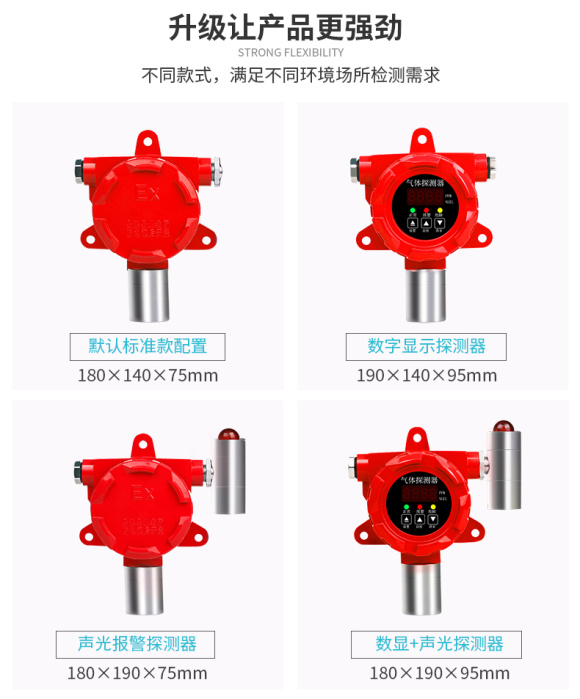

DR-600 (digital display sound and light model)

Point Gas Detector

Introduction

DR-600 (Digital Display Model) is a point Gas Detector with diffusion sampling method and catalytic combustion detection principle, the Gas Detector has a range of 0-100%LEL and an indication error of ±5%FS.

DR-600 (Digital Display) Point Gas Detector 1
