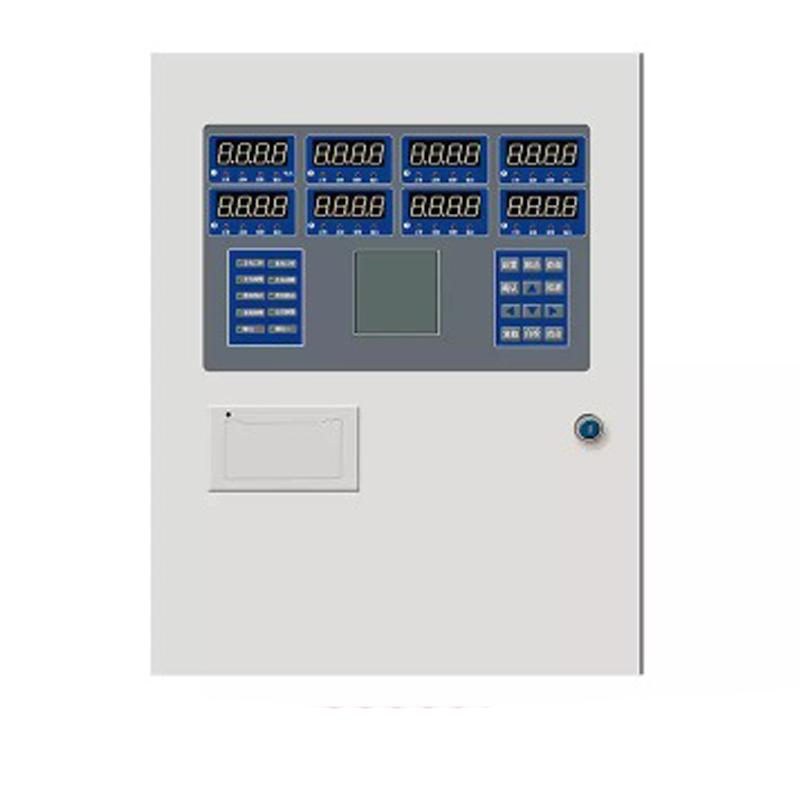

DUORUI DR-ZJ108 eight-channel controller, connected to 8 Gas Detectors

DUORUI eight-channel controller DR-ZJ108 is a supporting fixed Gas Detector controller, with 8 connection channels, DR-ZJ108 has perfect fault self-detection function, in line with GB16808 standard, DR-ZJ108 eight-channel controller adopts three-wire 3 * 1.0mm2 connection mode.
Model：
Certificate
Contact
Details SPEC OI

DuoRui DR-ZJ108 eight channel controllerSPEC

DuoRui DR-ZJ108 eight channel controllerDetails

DuoRui DR-ZJ108 eight channel controllerPacking list

SKU
NB017776
Output signal
485 digital signal
Control output
10 sets of passive relay outputs (switch signal)
Error of indication
±5%FS
Response time
≤2s
wiring method
Three-wire system 3 * 1.0mm2
Shell material
Custom iron shell
Execution standards
GB16808-2008
Operating temperature
-20~50℃
Environmental humidity
0~95% RH non-condensation
Operating Time
24H continuous online work
service life
3-5 years (depending on the environment)
Display
LED digital display, LCD display
display language
number
display content
Measured value
Dimensions
350*450*130mm
Alarm mode
Audio alarm + indicator light alarm
Power Supply
Main power 220V; backup power DC24V, 7AH
alarm point
High/low alarm point
Display unit
%LEL、PPM、%VOL
Alarm Volume
≥70dB
transmission distance
≤1200m
Detect gas
Ex, toxic gas
Weight
10.0Kg
Number of connected probes
Eight.
Supporting the use of Detectors
DR-600, DR-700 gas Detector
DR-ZJ108
eight channel controller
DUORUI DR-ZJ108 eight-channel controller, connected to 8 Gas Detectors Picture

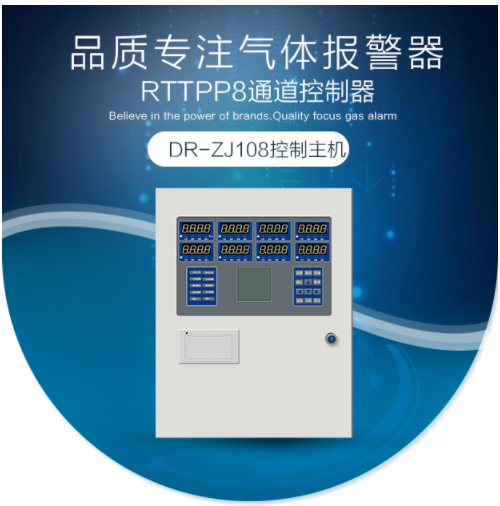

DR-ZJ108 Gas Alarm Controller

The gas controller samples the analog signal generated by the Gas Detector, and after the data processing of the internal single-chip microcomputer, it can display the concentration, status (sound and light alarm), physical address and other information of the Detector in real time, and output the control signal. It has a complete fault self-detection function, which can display the fault location and type (sound and light alarm) of the system and sub-address in real time.

The design of this product follows the national standard of GB16808-2008, compared with traditional products, with new functions such as clock display, alarm time checking, independent setting, etc., and the system appearance is beautiful, the display interface is intuitive, the definition is high, and the operation of each function has the corresponding icons to match, the operation is very simple, and the whole product design adopts centralized control, which is convenient for query and maintenance. (Please download the instruction manual from the "Download Center" column)

Product Qualification Certificate: Type Approval Certificate, Inspection Report, Manufacturing Measuring Instrument License, Explosion-proof Certificate.

Features

◆ High measurement accuracy

The CPU of the controller adopts high-speed and high-end single-chip microcomputer, which has fast operation speed, high precision and strong reliability, which can quickly and accurately handle system tasks and ensure the reliability of the system.

◆ System design

The system adopts modular structure design, which is convenient for the maintenance and processing of the system.

◆ Mixed configuration

Enables a mix of flammable and toxic Gas Detectors in the same system.

◆ Easy to install

Extremely simple to install and highly operable

◆ Analog signal output

It can output 4-20mA standard current signal, and 2 groups of alarm passive relay contact signal output (switching signal).

◆ Easy to maintain

The whole product design adopts modular structure design, which is convenient for system assembly and maintenance.

Product Installation

◆ Supporting Detectors: DR-600, DR-700 Gas Detectors.

◆ Number of connected Detectors: 8 Gas Detectors can be connected.

◆ Wiring method with Gas Detector: three-wire system 3*1.0mm2.

◆ The gas alarm controller is a non-explosion-proof product, which should be installed in the monitoring room or indoor safe area or in an environment without explosive gas, and should be wall-mounted.

◆ Reasonable installation height is selected for installation, which is convenient for operation and not too low to avoid accidental injury to personal beings, and requires the wall to be firm and flat.

FAQ
QDo you have the eight-channel controller required by the GB3836.1 standard?
A This DR-ZJ108 eight-channel controller will do.
