DAHOMETER AR-200GY Solid-liquid dual-use Density Tester, weighing 0.001~ 200g

Model：
Certificate
Contact
Details SPEC CAT

DahoMeter AR-200GY Density TesterSPEC

DahoMeter AR-200GY Density TesterDetails

DahoMeter AR-200GY Density TesterPacking list

SKU
NB017821
Weighing range
0.001~200g
Density Accuracy
0.0001g/cm³
Density Measurement range
Density > 1, < 1 can be tested
Measurement principle
Archimedes Principle General Test Method for Solids (Solids)
Measurement time - solid
About 5 seconds
Memory method
Two-step memory method (solid)
Specific gravity measurement stand - solid
Integrated injection molding professional specific gravity measurement stand (size: length 17.6 cm × width 10.5 cm × height 11.1cm)
Measurement tank - solid
Integrated injection molding professional transparent sink (size: length 16.9 cm × width 9.8 cm × height 8.3cm)
Results show
Density, Volume, percentage of content (solids)
Parameter Setting - Solid
Water temperature setting, measurement medium Density setting, substance Main material and secondary material Density setting
Material Mix Percentage - Function Introduction
Automatically read the percentage of the main substance of the two mixed materials
Material Mix Percentage - Set
Density values of primary and secondary materials can be freely set
Material Mix Percentage - Display
Density value, mixing ratio of main substances
Measurement type
Any liquid can be measured
Measurement principle
Archimedes principle displacement method (liquid)
Measurement mode
1 set (liquid)
Measurement time - liquid
Instant measurement
Memory method
Dynamic Memory (Liquid)
Results show
Density (liquid)
Specific gravity measurement stand - liquid
Stainless steel specific gravity measurement stand
Parameter Settings - Liquid
Temperature setting, solution Density setting, standard measurement Weight Weight value and water Weight value setting
Results verification method
Distillation Water Validation (Liquid)
Correction method
Single key automatic correction, automatic detection function
Power
AC 220V/50HZ
AR-200GY
Density Tester

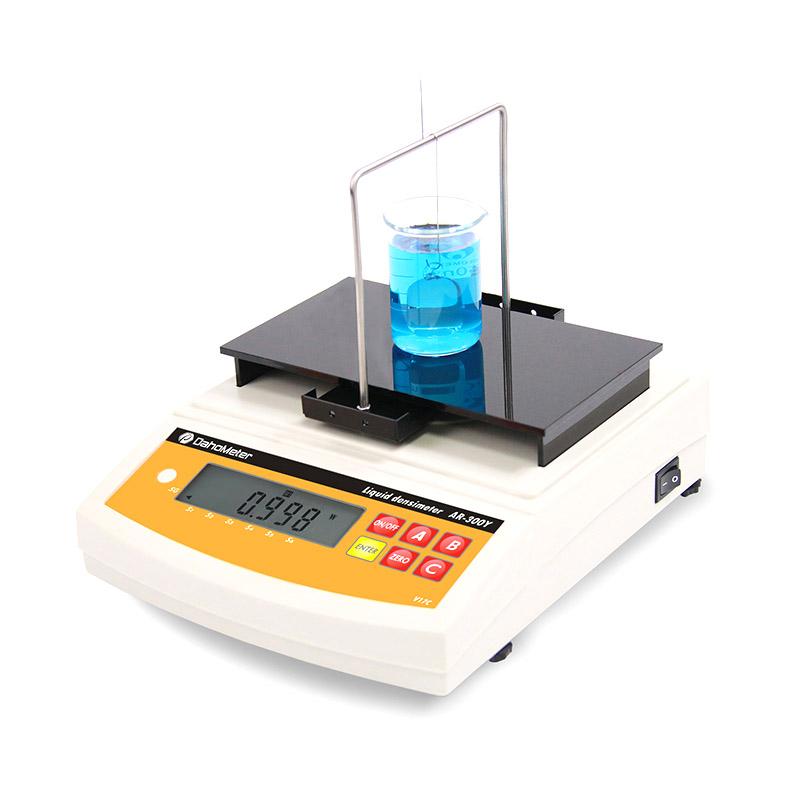

DAHOMETER AR-200GY Solid-liquid dual-use Density Tester, weighing 0.001~ 200g Picture

Introduction

AR series density meter is a new series of products launched by DahoMeter brand based on years of density measurement technology through simplified functions, optimized structure, and enhanced practicality; it has the characteristics of good measurement repeatability, high precision, and simple operation...etc.

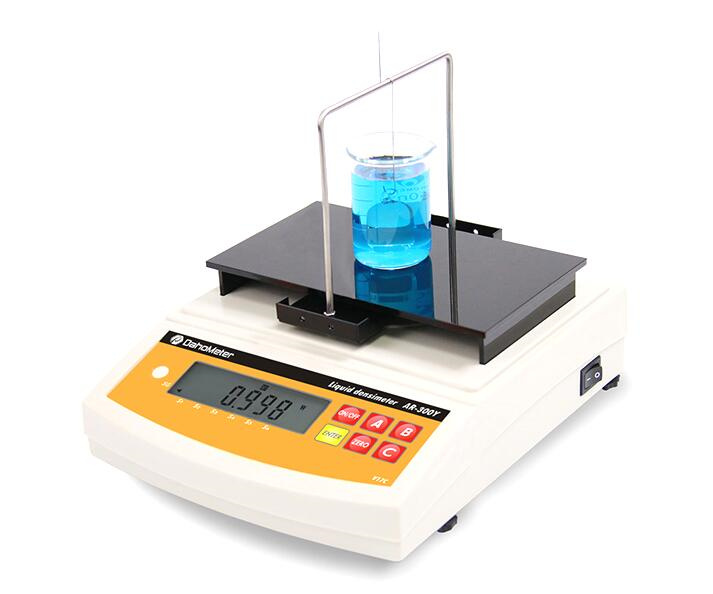

Dahong Meituo AR-200GY solid-liquid dual-purpose density Tester display

Application

Glass products, hard alloys, metal products, jewelry industry, powder metallurgy, precision ceramics, refractory materials, magnetic materials, alloy materials, mechanical parts, minerals and rocks, cement manufacturing, metal recycling, rubber, plastics, wire and cable, tires , chemical solutions, modern energy, petroleum fuels, fine chemicals, chemical reagents, chemical research laboratories, new materials research laboratories and other fields of density measurement.

Features

Solid Features and Benefits

  • Any solid can be measured

  • No cumbersome operation, easy to install

  • Use water as medium, also can use other liquid medium

  • Large capacity PC material sink

  • With actual water temperature compensation function

  • Configure special windproof and dustproof cover

  • Adaptable to workshops, laboratories, etc.


Liquid Features and Benefits

  • Any solution can be quickly measured

  • No cumbersome debugging and operation of Webster balance method and pycnometer method

  • With actual water temperature compensation function

  • Sampling is convenient, only 50CC is needed for the tested sample

  • The operation is in place in one step, which is convenient for multiple consecutive rapid tests

  • Volatile liquids, corrosive liquids, viscous liquids, strong acid and strong alkaline liquids can be quickly measured (optional accessories)


Models

brandDahoMeter _
modelAR-300GYAR-600GYAR-900GYAR-1200GYAR-2000GY
Weighing range0.005~300g0.005~600g0.01-900g0.01~1200g0.01~2000g
Density accuracy0.001 g/ cm3
Density rangeDensity > 1 , < 1 can be tested
solid modeMeasure solid speciesany solid density
measurement modeArchimedes principle general test method for solids
measure time                                           about 5 seconds
memory methodtwo-step memory
Specific Gravity Measuring StandOne-piece injection molding professional specific gravity measuring frame (dimensions: length 17.6 cm x width 10.5 cm x height 11.1 cm )
measuring sinkOne-piece injection molding professional transparent sink (size: length 16.9 cm x width 9.8 cm x height 8.3 cm )
The results showDensity, volume, content percentage
function settingWater temperature setting, measurement medium density setting, material main material and secondary material density setting
Material Mixing PercentageFeaturesCan automatically read the main substance percentage of two mixed materials
set upThe density values ​​of primary and secondary materials can be set freely
showDensity value, main substance mixing ratio
liquid modeType of liquid to be measuredAny liquid can be measured
PrincipleArchimedes principle substitution method
measurement mode1 group
measure timeinstant measurement
memory methoddynamic memory
The results showdensity
Specific Gravity Measuring StandStainless steel specific gravity measuring frame
function settingTemperature setting, solution density setting, standard measuring weight weight value and water weight value setting
Result verification methodDistilled Water Validation
Calibration methodOne-button automatic calibration and automatic detection functions
Standard accessoriesOne host, one tweezers, one thermometer, one weight, one set of windproof and dustproof cover, one solid Water Tank, one solid measuring table, one set of particle measuring device, one set of floating body accessories, one liquid measuring placement plate , one liquid measuring bracket, one set of AR-20A standard liquid measuring components, one power transformer
optional accessories① AR-40 printer, ②   AR-20B anti-corrosive liquid measuring component, ③ AR-20A standard liquid measuring component
power supplyAC~220V/50HZ


FAQ
QDo you have the Density Tester required in the GB/T5009.2 standard?
A This AR-200GY Density Tester will do.
