DAHOMETER AR-150VM mass volume change rate and Density Tester

DAHOMETER AR-150VM Rubber Density Tester measurement range 0.0001~ 99.9999g/cm3, measurement platform aluminum alloy forming, the results show mass change rate, volume change rate, water absorption rate, Density, measurement principle Archimedes principle Buoyancy method
Model：
Certificate
Contact
Details SPEC CAT

DahoMeter AR-150VM Density TesterSPEC

DahoMeter AR-150VM Density TesterDetails

DahoMeter AR-150VM Density TesterPacking list

SKU
NB017856
precision
0.01%
Maximum weighing
150g
weighing Accuracy
0.001g
Density readability
0.0001g/cm³
Density Measurement range
0.0001~99.9999g/cm³
Measurement Platform
Aluminum alloy forming
Results show
Mass Change Rate, Volume Change Rate, Water Absorption Rate, Density
Measurement principle
Archimedes principle buoyancy method
Measurement time
About 10 to 60 seconds
sink
PC material integrated injection molding transparent sink
parameter setting
Water temperature setting, measurement medium Density setting, lubricating oil medium Density setting
Power
AC100V~240V 50HZ/60HZ
Gross Weight
4.5kg
Dimensions
425*175*325mm
Sink size
16.9*9.8*8.3mm
Density Measurement range
0.0001~99.9999g/cm³
AR-150VM
Density Tester

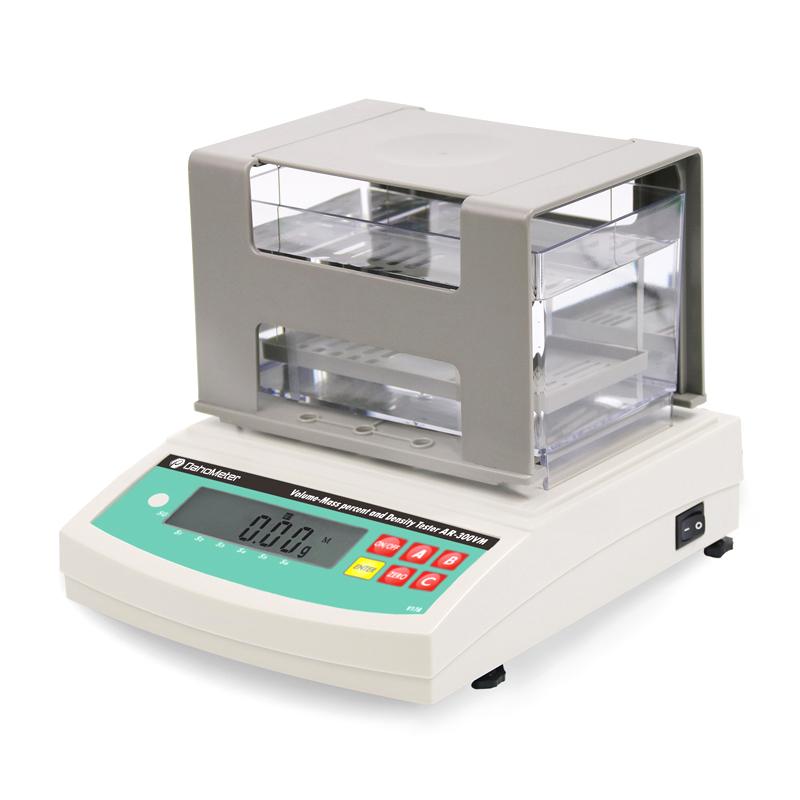

DAHOMETER AR-150VM mass volume change rate and Density Tester Picture

Introduction

This series of products is a new series of products launched by the Dahometer brand based on years of density measurement technology through simplified functions, optimized structure, and enhanced practicality; it has the characteristics of good measurement repeatability, high precision, and simple operation...etc.


Mainly for

Vulcanized rubber, compression oil seal, sealing rubber, expansion rubber, oil ring rubber, O-ring rubber, D-ring rubber, V-ring rubber, compression rubber, oil seal rubber, porous sponge, porous metal material, porous ceramics, Metal Sealing... New Materials Research LABOratory.

According to the standard

  • Density measurement complies with: ASTM D792, ASTM D297, GB/T533 standards

  • The determination of rubber expansion rate conforms to: GB/T18173 standard

  • Determination of water absorption conforms to: GB/T 8810-2005 standard

Features and Benefits

  • Direct reading, no calculation required

  • Accurate and reliable measurement, convenient and fast operation

  • Any shape can be measured

  • Saturated medium density can be set freely

  • Water is used as the measuring medium, other liquid media can also be used

  • With actual water temperature compensation function

  • Configure special windproof and dustproof cover


Models

modelAR-300VMAR-150VM
precision0.10%0.01%
Weighing300g150g
Weighing accuracy0.01g0.001g
densityreadability0.001 g/ cm30.0001 g/ cm3
scope0.001~99.999g/ cm30.0001~99.9999g/ cm3
measuring platformABS injection moldingAluminum alloy forming
The results showMass change rate, volume change rate, water absorption, density
PrincipleArchimedes' principle of buoyancy
measure timeAbout 10~60 seconds
sinkPC material integrated injection molding transparent sink (dimensions: length 16.9 mm × width 9.8 mm × height 8.3mm )
VoltageAC100V~240V 50HZ/60HZ      (default European standard plug, or choose other country standard plug)
