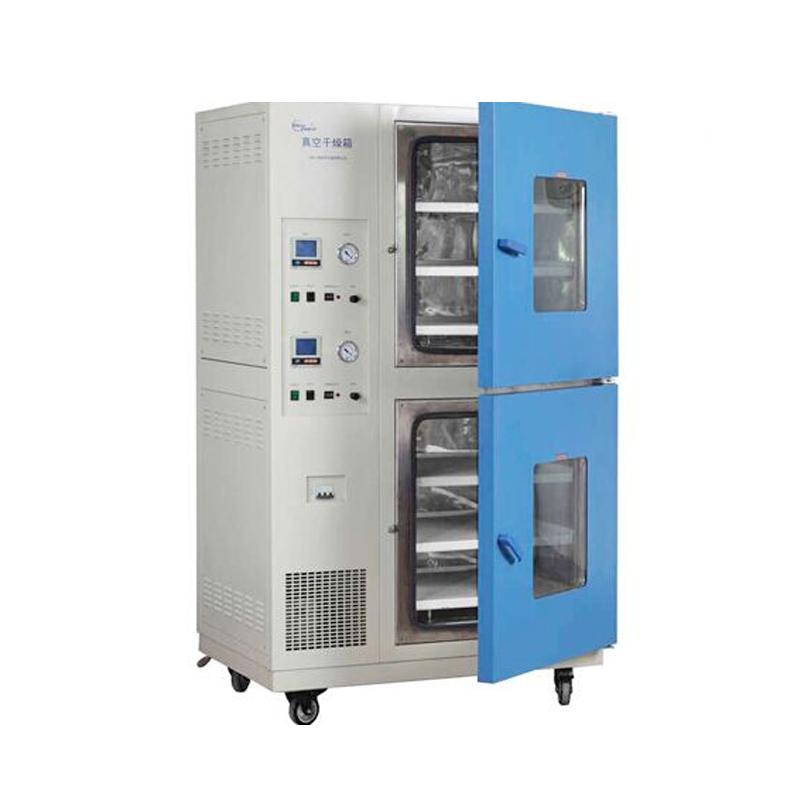

YIHENG BPZ-6140-3B Vacuum Oven temperature control RT + 10~200 ℃ Volume 141L
YiHeng Vacuum OvenSPEC
YiHeng Vacuum OvenDetails
YiHeng Vacuum OvenPacking list
- SKU
- NB017902
- Temperature range
- RT+10~200 ℃
- Temperature Fluctuation
- ±1℃
- Temperature Resolution
- 0.1℃
- Volume
- 141L
- Interior size
- 700*530*380mm
- Chamber material
- Stainless steel (1Cr~ 18Ni9Ti)
- Shelf (std.)
- 2pcs×3
- Shelves (max)
- 2pcs
- Vacuum meter
- mechanical pointer
- Power supply Voltage
- AC380V 50HZ
- Input Power
- 2100W
- Environmental temperature
- RT+5~40℃
- Environmental humidity
- 50%RH
- Dimensions
- 1300*800*1953mm
This product is suitable for heat treatment in vacuum state such as deaeration, dehydration, hardening and drying after washing in the production process of electronic products, and is widely used in vacuum drying treatment of lithium-ion batteries, LED optoelectronic components, crystal oscillators and other electronic product production processes.
Features
● The studio is made of stainless steel plates, which ensures that the product is durable and easy to clean.
● Rectangular vacuum chamber makes the effective volume utilization rate large and can make full use of space.
● Elastic double-layer tempered glass door to observe the objects in the studio, at a glance.
● The door closure is adjustable and the integrally molded synthetic silicone rubber door sealing ring ensures a high vacuum level in the box.
● Add over-temperature protection temperature control port to effectively prevent temperature runaway and other safety problems. (Optional)
● Each layer of the box can be independently heated, vacuumed, and injected with nitrogen, without interfering with each other. (Multi-box series)
● Low noise imported Vacuum Pump, stable and reliable vacuum control. (Band "B" for imported Vacuum Pump)
◆Program control (optional)
● Program control operation, heating, vacuum holding and nitrogen holding time can be set according to process requirements to ensure the consistency of baking in each batch and reduce the baking difference of products as much as possible.
Options:
1. Inert gas inlet valve |
2. Liquid water filter (priced according to specifications and models, suitable for high humidity drying) |
3. Drying tank |
4. Optional exhaust oil filtration device (recommended to be replaced once every 6 months) |
Concentrate:
1. With "B" is an imported Vacuum Pump.
2. BPZ series vacuum Drying Oven is equipped with Vacuum Pump and drying tank
3. BPZ-6503B, BPZ-6090-2/2B (two boxes), BPZ-6210-2/2B (two boxes) After receiving the order, the delivery time is 25 days
4. After receiving the order, the delivery time of BPZ-6933B and BPZ-6140-3/3B (three boxes) is 30 days
