China

YIHENG DKB-600B electrothermal Thermostatic Water Bath volume 30L with electromagnetic pump

YIHENG DKB-600B electrothermal Thermostatic Water Bath is an electrothermal thermostatic circulating Water Tank with temperature control of RT + 5~ 70 ℃ and fluctuation of +/- 0.3 ℃. DKB-600B has an electromagnetic pump and is controlled by a microcomputer.
Model:

YiHeng Thermostatic Water BathSPEC

YiHeng Thermostatic Water BathDetails

YiHeng Thermostatic Water BathPacking list

SKU
NB017927
Temperature range
5~70℃
Temperature Fluctuation
±0.3℃
Temperature Resolution
0.1℃
Tank Volume
30L
Temperature control mode
Microcomputer PID control
Circular mode
Internal/external circulation
Total Power
1000W
Timer
1~5999min
Power supply Voltage
AC220V 50HZ
Dimensions
770*370*280mm
Tank Size
600*300*190mm
Net Weight of the whole machine
14Kg
The Gross Weight of the whole machine
15.5Kg
Packing size
820*420*380mm
Thermostatic Water Bath
YIHENG DKB-600B electrothermal Thermostatic Water Bath volume 30L with electromagnetic pump  Picture

Introduction to DKB-600B Electric Heating Constant Temperature Circulating Sink

One constantDKB-600BThe electric constant temperature circulating tank is equipped with an electromagnetic pump, and the temperature control range is RT+5~70°C.The inner tank and shell of DK-8AB are made of stainless steel.The inner tank of DKB-600B is made of stainless steel.DKB-600B electric heating constant temperature circulating tank adopts multi-stage programmable controller with timing function, menu-type operation interface, and adjustable speed of Circulating Chiller.

Applications

DKB-600B electric heating constant temperature circulating Water Tank is suitable for precision constant temperature and auxiliary heating in colleges and universities, industrial and mining enterprises and scientific research units.

Features

1. Digital display, microcomputer control, with timing function.

2、DKB-600B Electric Heating Constant Temperature Circulating Water TankIt adopts stainless steel liner, which has a novel and beautiful appearance.

3. Over-temperature acousto-optic tracking alarm, so that the sample can be reliably protected.

Multi-segment programmable controller (optional)

● Microcomputer program controller, time and heating rate, constant temperature test at a very fast speed.

● 7 63-step programmable programs can be preset, each section is 9 steps, and the setting time of each section is 1~99 hours and 59 minutes. The start-up and shutdown time can be preset, and the speed of the Circulating Chiller can be adjusted.

● Multi-segment programmable control, menu-based operation interface, can simplify the complex experimental process, and truly realize automatic control and operation.

Actual picture of the product

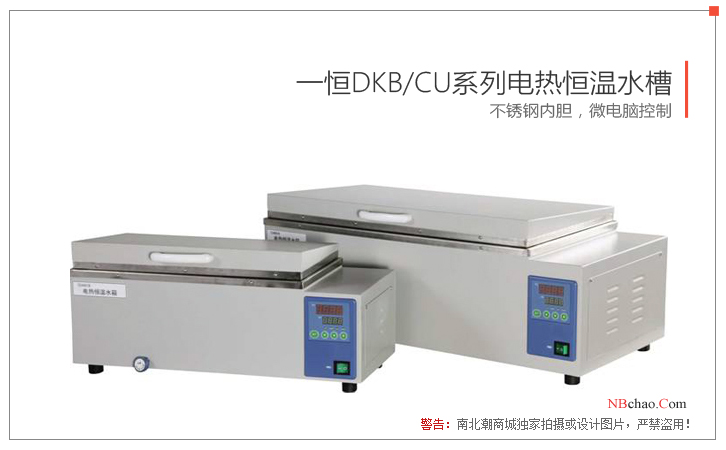

A constant DKB-600B electric heating constant temperature sink display diagram

FAQ
QWhat is the limit low temperature of this Thermostatic water bath?
A YIHENG meets the Temperature range of 5 to 70 ° C, with a minimum temperature of 5 ° C.
