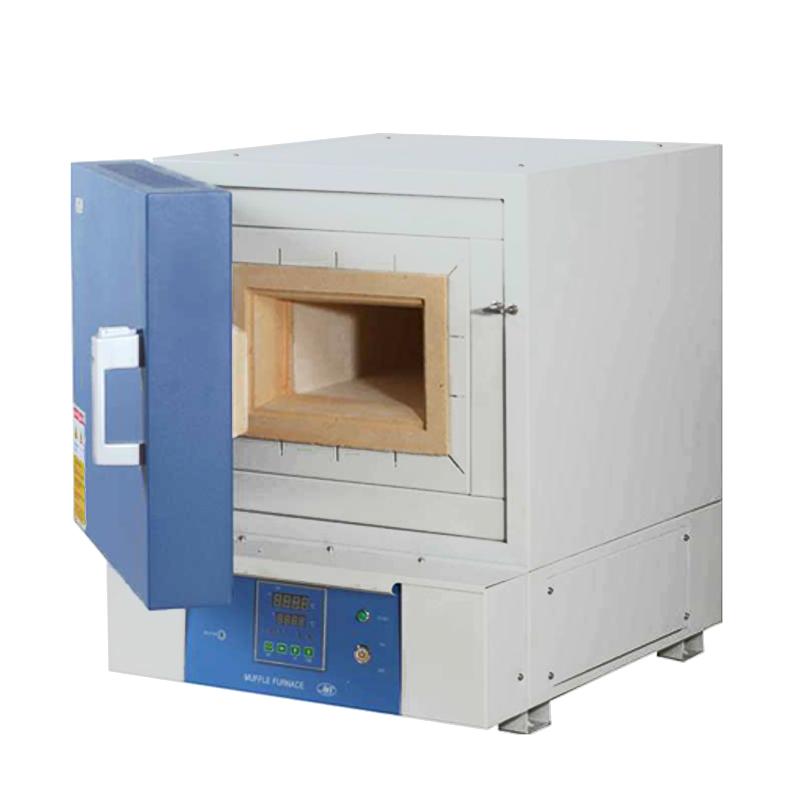

YIHENG SX2-4-13N Experimental muffle furnace temperature up to 1300 ℃

Box Furnace

Overview

Yiheng SX2-4-13N muffle furnace, also known as box-type Resistance Furnace or furnace, has a maximum temperature of 1300°C, and the heating element used is silicon carbon rod material.Silicon carbon rods are not only chemically stable, but alsoIt has the characteristics of high temperature resistance, oxidation resistance, corrosion resistance, fast heating up, long life, small high temperature deformation, safety and reliability.SX2-4-13N muffle furnace has a solvent of 4L, a furnace size of 150x250x100mm, and an input power of 2.5KW, which is suitable for high temperature treatment in the laboratory.

Features and advantages

1. The refractory brick furnace is adopted, and the heating element is silicon carbon rod, which is resistant to high temperature and has a long service life.

2、SX2-4-13N muffle furnaceIt is controlled by a microcomputer PID controller, which is simple and convenient to operate, accurate and reliable.

3. Comprehensive security functions. Not only will the furnace temperature safety switch automatically disconnect the heating power supply when the furnace door is opened, but also equipped with a variety of safety protection measures such as overcurrent, overVoltage, and overheating to ensure the safety of users.

4. The door is well sealed, the heat loss is small, and the temperature uniformity in the furnace is good.

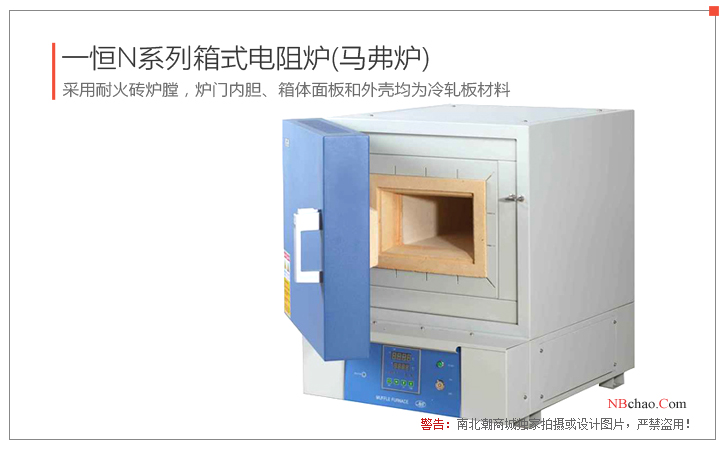

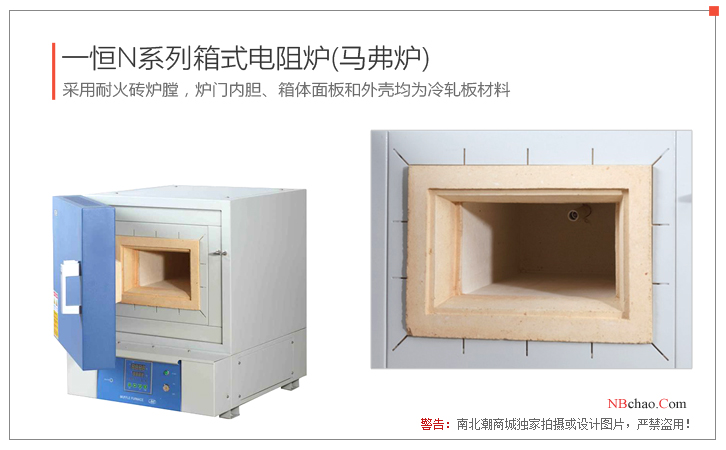

Actual picture of the product

Packing list：

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
