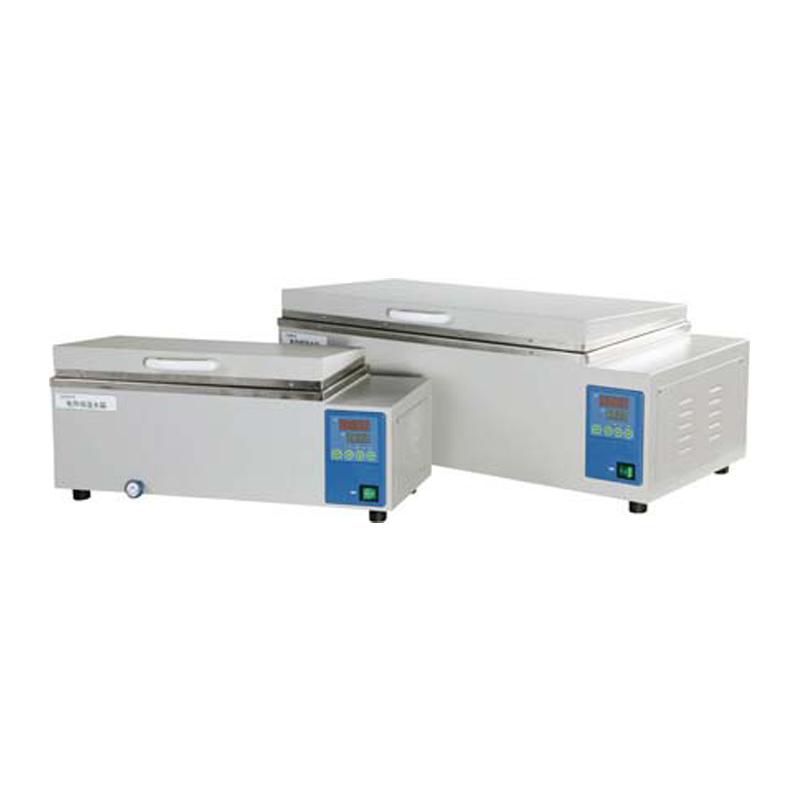

YIHENG CU-420 electrothermal Thermostatic Water Bath temperature control RT + 5~ 99 ℃ volume 1L
YiHeng Thermostatic Water BathSPEC
YiHeng Thermostatic Water BathDetails
YiHeng Thermostatic Water BathPacking list
- SKU
- NB017931
- Temperature range
- 5~99℃
- Temperature Fluctuation
- ±0.5℃
- Temperature Resolution
- 0.1℃
- Tank Volume
- 11L
- Temperature control mode
- Microcomputer control
- Circular mode
- Internal/external circulation
- Total Power
- 500W
- Timer
- 1~5999min
- Power supply Voltage
- AC220V 50HZ
- Dimensions
- 570*220*260mm
- Tank Size
- 420*180*150mm
- Net Weight of the whole machine
- 11Kg
- The Gross Weight of the whole machine
- 12Kg
- Packing size
- 650*310*350mm
Introduction to CU-420 Digital Display Electric Heating Constant Temperature Tank
One constantCU-420The input power of the CU-420 digital display electric heating constant temperature sink is 500W, the temperature control range is RT+5~99°C, and the effective volume is 11L. The CU-420 digital display electric heating constant temperature sink can be equipped with a multi-segment programmable controller to achieve a more intelligent and effective constant temperature test.
Applications
CU-420Electrically heated thermostatic sinkIt is used for precision constant temperature and auxiliary heating in colleges and universities, industrial and mining enterprises and scientific research units.
Features
1. Stainless steel liner is adopted, and the appearance is novel and beautiful.
2. Digital display, microcomputer control, with timing function.
3、CU-420The electric thermostatic sink hasOver-temperature acousto-optic tracking alarm, so that the sample is reliably protected.
Features of the multi-segment programmable controller (optional).
● Microcomputer program controller, time and heating rate, constant temperature test at a very fast speed.
● 7 63-step programmable programs can be preset, each section is 9 steps, and the setting time of each section is 1~99 hours and 59 minutes. The start-up and shutdown time can be preset, and the speed of the Circulating Chiller can be adjusted.
● Multi-segment programmable control, menu-based operation interface, can simplify the complex experimental process, and truly realize automatic control and operation.
Options
1. Multi-segment programmable liquid crystal temperature controller
2. RS485 interface and communication software
3. Embedded printer

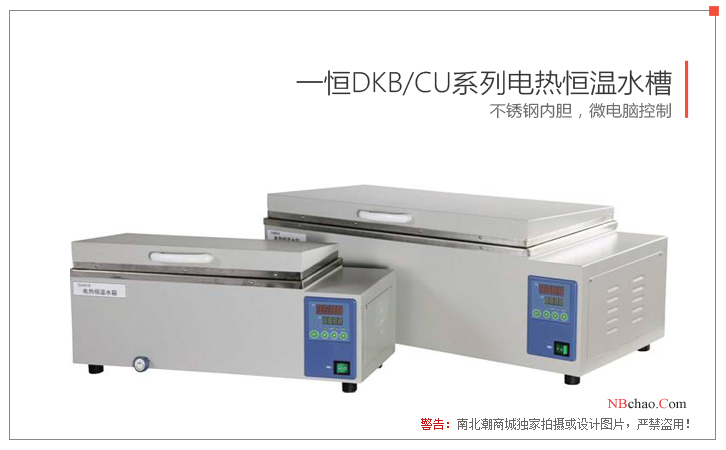

Actual picture of the product
