YIHENG DK-8AB Electrothermal thermostatic circulating Water Tank, temperature control RT + 5~ 70 ℃ Volume 22L

YIHENG DK-8AB electrothermal thermostatic circulating Water Tank is a microcomputer-controlled experimental thermostatic circulating Water Tank with timing function. Temperature range is RT + 5~ 70 ℃. DK-8AB electrothermal thermostatic circulating Water Tank is suitable for Universities & colleges, industrial and mining enterprises and R & D institutions.
Model:

YiHeng Thermostatic Water BathSPEC

YiHeng Thermostatic Water BathDetails

YiHeng Thermostatic Water BathPacking list

SKU
NB017932
Temperature range
5~70℃
Temperature Fluctuation
±0.3℃
Temperature Resolution
0.1℃
Tank Volume
22L
Temperature control mode
Microcomputer PID control
Circular mode
Internal/external circulation
Total Power
1000W
Timer
1~5999min
Power supply Voltage
AC220V 50HZ
Dimensions
660*340*200mm
Tank Size
500*300*150mm
Net Weight of the whole machine
14Kg
The Gross Weight of the whole machine
16Kg
Packing size
630*420*390mm
Thermostatic Water Bath

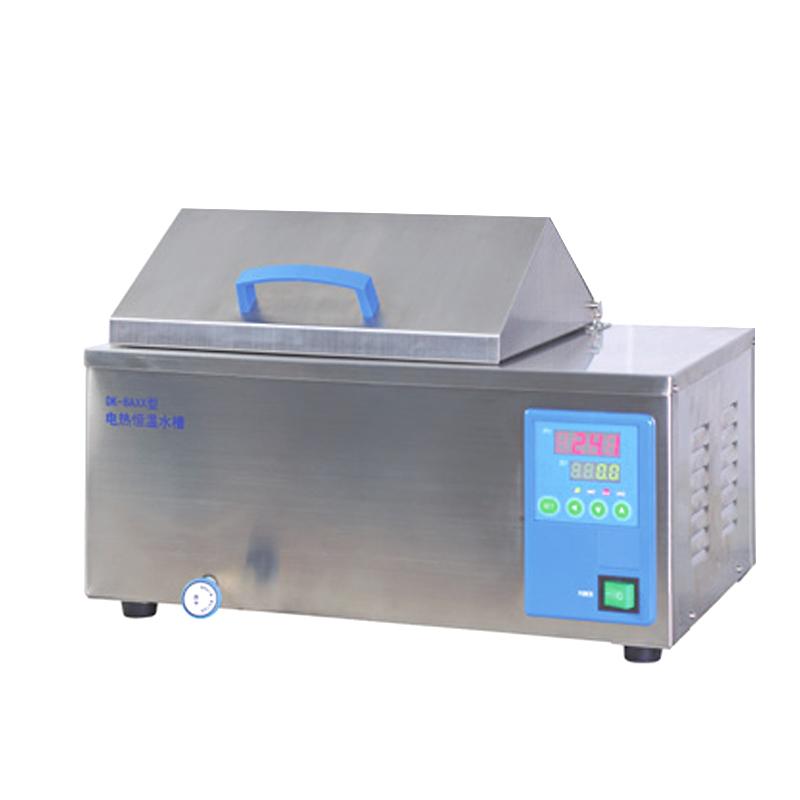

YIHENG DK-8AB Electrothermal thermostatic circulating Water Tank, temperature control RT + 5~ 70 ℃ Volume 22L Picture

Introduction to DK-8AB Electric Heating Constant Temperature Circulating Water Tank

One constantDK-8ABThe electric thermostatic circulating sink is an electric thermostatic circulating sink with an electromagnetic pump and a stainless steel shell, with an input power of 1000W, a resolution of 0.1°C, and a volume of 22L. DK-8AB Electric Heating Constant Temperature Circulating Sink adopts stainless steel liner, digital display screen, microcomputer control, and can be timed.

Applications

DK-8AB electric heating constant temperature circulating Water Tank is suitable for precision constant temperature and auxiliary heating in colleges and universities, industrial and mining enterprises and scientific research units.

Features

1. Digital display, microcomputer control, with timing function.

2、DK-8AB Electric Heating Constant Temperature Circulating Water SinkIt adopts stainless steel liner, which has a novel and beautiful appearance.

3. Over-temperature acousto-optic tracking alarm, so that the sample can be reliably protected.

Multi-segment programmable controller (optional)

● Microcomputer program controller, time and heating rate, constant temperature test at a very fast speed.

● 7 63-step programmable programs can be preset, each section is 9 steps, and the setting time of each section is 1~99 hours and 59 minutes. The start-up and shutdown time can be preset, and the speed of the Circulating Chiller can be adjusted.

● Multi-segment programmable control, menu-based operation interface, can simplify the complex experimental process, and truly realize automatic control and operation.

Actual picture of the product

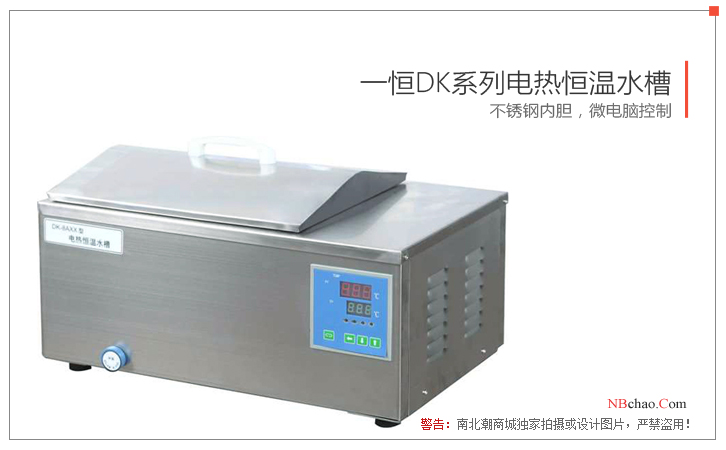

A constant DK-8AB electric heating constant temperature circulating sink display diagram

FAQ
QWhat is the limit low temperature of this Thermostatic water bath?
A YIHENG meets the Temperature range of 5 to 70 ° C, with a minimum temperature of 5 ° C.
