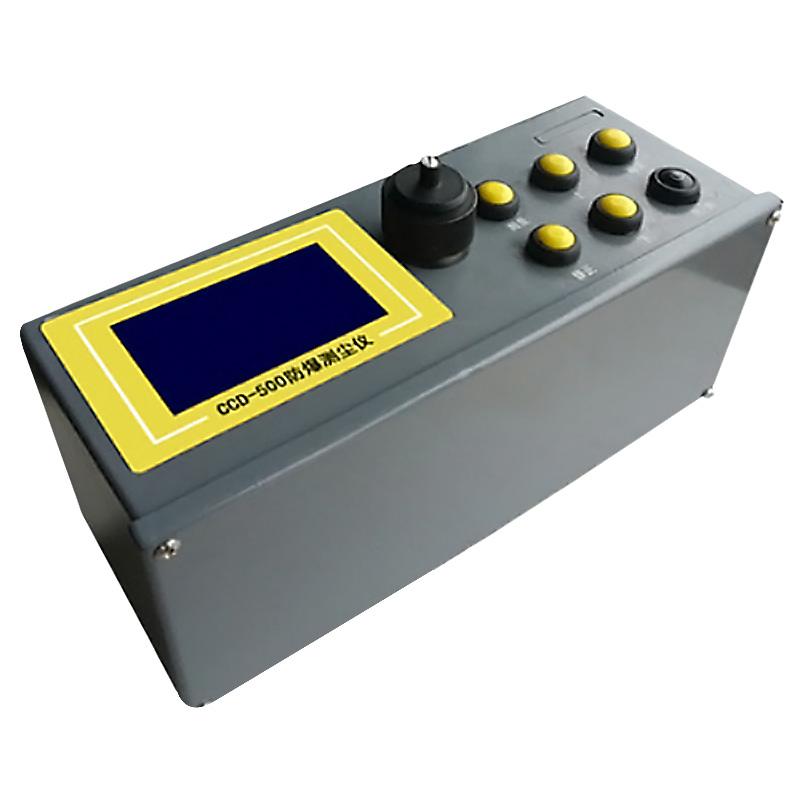

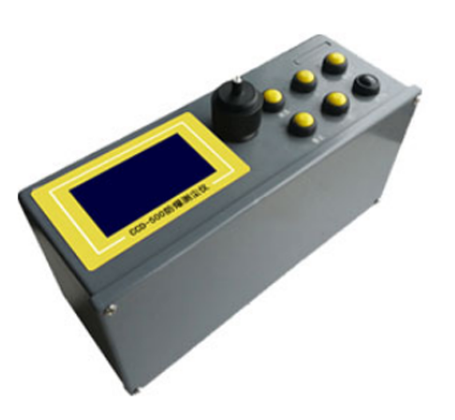

JDHS CCD-500 Portable Explosion-proof Dust Tester - Intrinsically safe explosion-proof

CCD-500 (portable)

Explosion-proof dust Tester - intrinsically safe explosion-proof

Introduction

CCD-500 explosion-proof dust Tester is a light scattering rapid dust Tester with laser as the light source, which meets the requirements of intrinsic safety. The explosion-proof mark of this instrument is ExibII.BT4Gb, and the explosion-proof certificate number is CE15.2063. This instrument can directly read the mass concentration (mg/m³), easy to carry, simple to operate, there are PM1, PM2.5, PM5, PM10 and TSP a variety of cutters to choose from, can measure different particle size dust concentration. The built-in membrane sampling device collects dust samples while continuously monitoring airborne particulate matter for composition analysis and mass concentration conversion coefficient K using the filter weighing method. It can be used to quickly measure dust concentrations in zones 1, 2, II.B, T4 and below, and is also suitable for detecting inhalable particulate matter (PM10) concentrations in indoor and outdoor environments. This instrument conforms to the national metrology verification regulations JJG846-1993 "Light Scattering Digital Dust Tester Verification Regulations", and the instrument uses in line with the labor industry standard "Conversion Method for Determining Relative Mass Concentration and Mass Concentration of Dust in the Air in Railway Work Sites" TB/T2323-92, and the Ministry Standard "Method for Determination of Respirable Particulate Matter (PM10) in the Air in Public Places - Light Scattering Method" WS/T206-2001.

Main technical features:

1. The mass concentration of particulate matter (mg/m³) can be directly read, and the result will be issued in 1 minute, or the sampling time can be set arbitrarily according to the user's needs;

2. The measurement is fast, accurate and the detection sensitivity is high;

3. The self-calibration system is designed, and the instrument performance is stable and reliable;

4. It has the functions of air curtain shielding and clean air self-cleaning to ensure that the optical system is not polluted;

5. The software is automatically zeroed;

6. It has the function of two-way communication with the computer, and can process data through the PC, print out the curve and table (only used in non-explosive gas atmosphere);

7. It has a variety of functions such as continuous monitoring of particulate matter concentration, regular sampling and alarm of dust concentration exceeding the standard;

It can measure five particle sizes such as PM2.5/PM10, and two are portable/online

FeaturesIntrinsically safe explosion-proof products, through metrology and explosion-proof certification. A variety of cutters are available to measure dust concentrations of different particle sizes

Applications:Environmental, Public Testing, Zone 1, Zone 2, Group II.B, T4 and below

Packing list：machine X1, manual X1, certificate X1, warranty card X1

[Note]Because the manufacturer's packaging may be updated or upgraded, the detailed packaging list shall be subject to the latest standard configuration of the manufacturer.
