RDS 20 #3/8 "Mayer Rods WFT 45.7μm Length 400mm

SE
Wire-wound, wet film thickness 45.7μm, diameter 9.52mm, Total length 400mm, Spreader width 300mm, hand width 50 + 50mm, material stainless steel, Wire diameter 0.51mm.
$161.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con VIDEO CAT OI
Similar products

RDS 20# 3/8" Applicator rod 3/8 "SPEC

RDS 20# 3/8" Applicator rod 3/8 "Details

RDS 20# 3/8" Applicator rod 3/8 "Packing list

SKU
NB000018
Production process
wire-wound
WFT
45.7μm
diameter
9.52mm
Total length
400mm
application width
300mm
Grip Width
50+50mm
material
stainless steel
Wire diameter
0.51mm
20# 3/8"
Applicator rod 3/8 "
Wire-wound, wet film thickness 45.7μm, diameter 9.52mm, Total length 400mm, Spreader width 300mm, hand width 50 + 50mm, material stainless steel, Wire diameter 0.51mm.

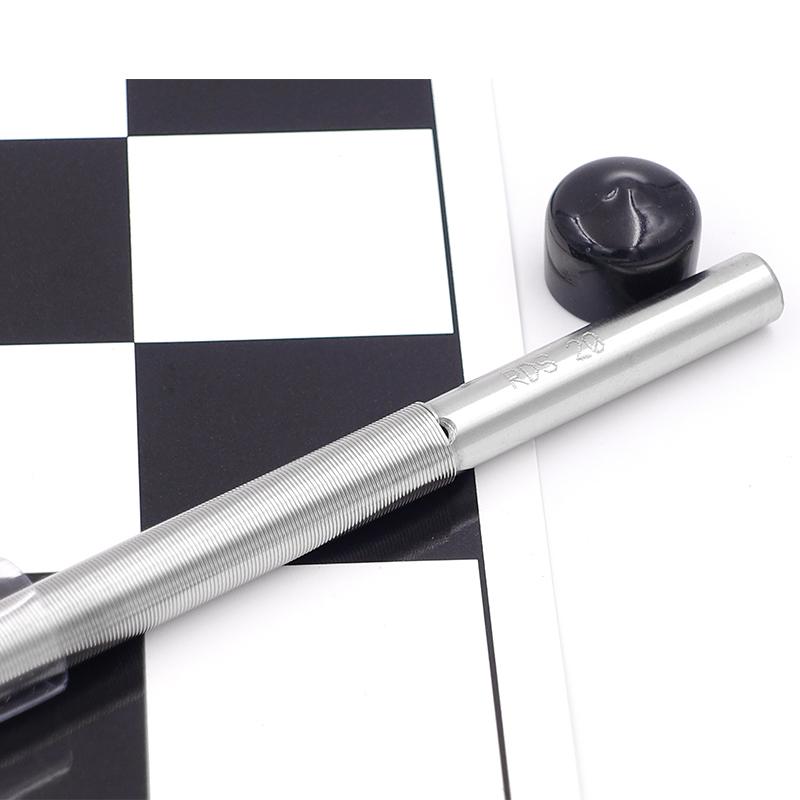

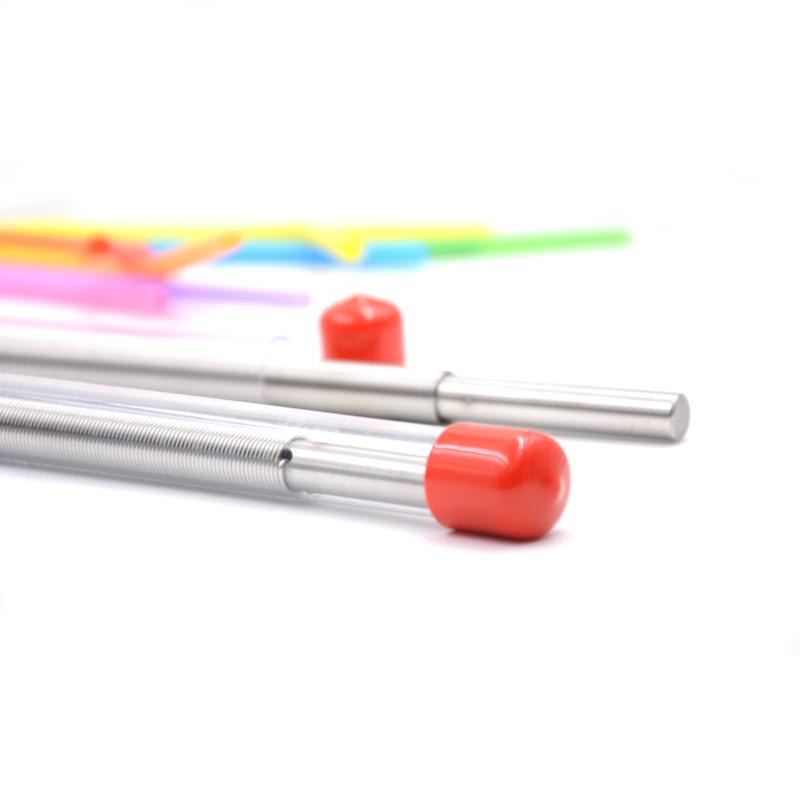

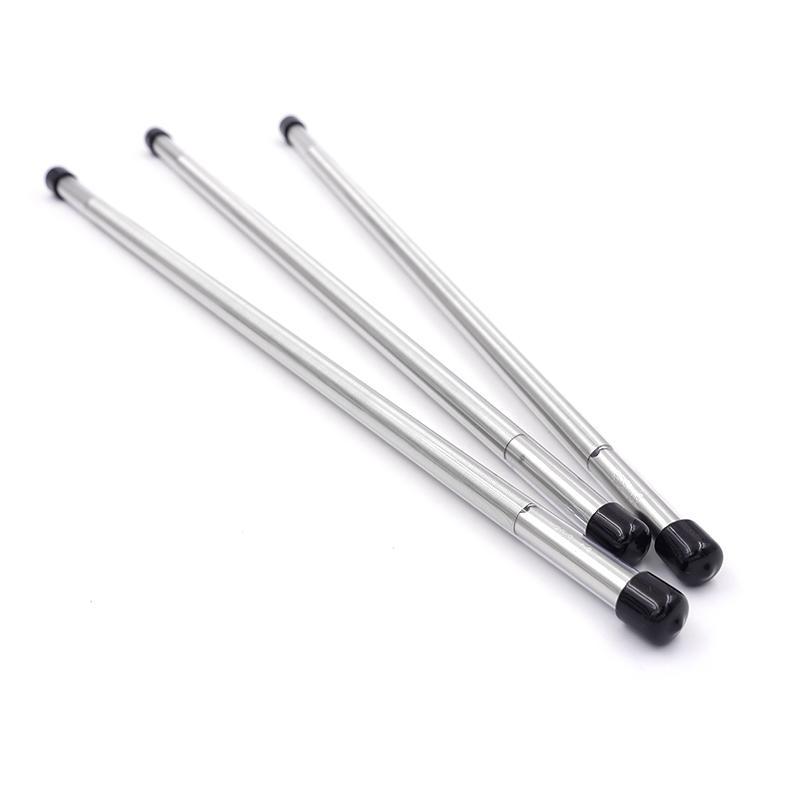

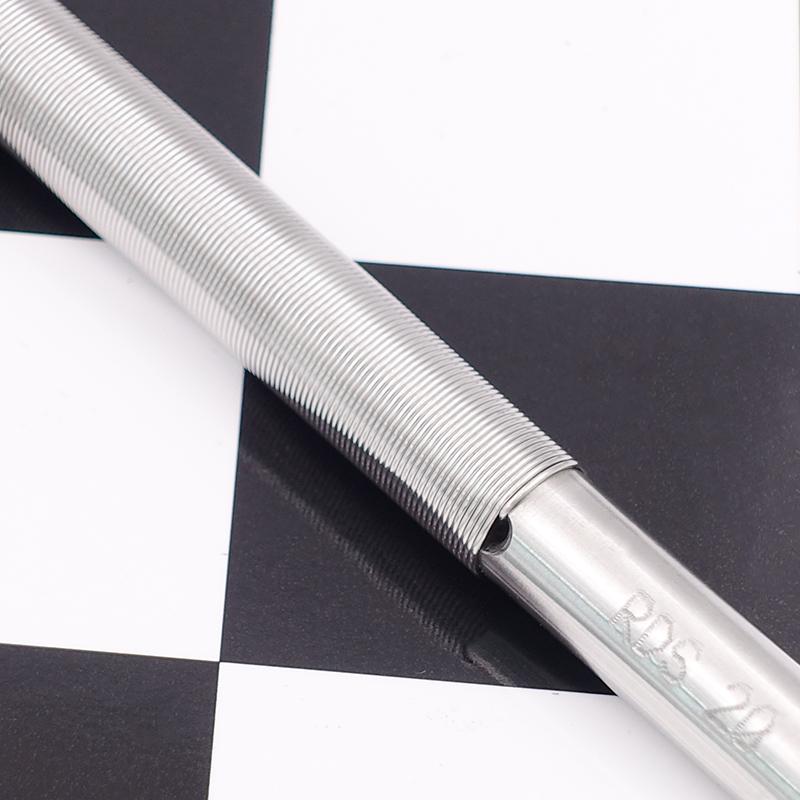

RDS 20 #3/8 "Mayer Rods WFT 45.7μm Length 400mm Picture

RDS coating Rods Figure 1

RDS coating Rods Figure 2

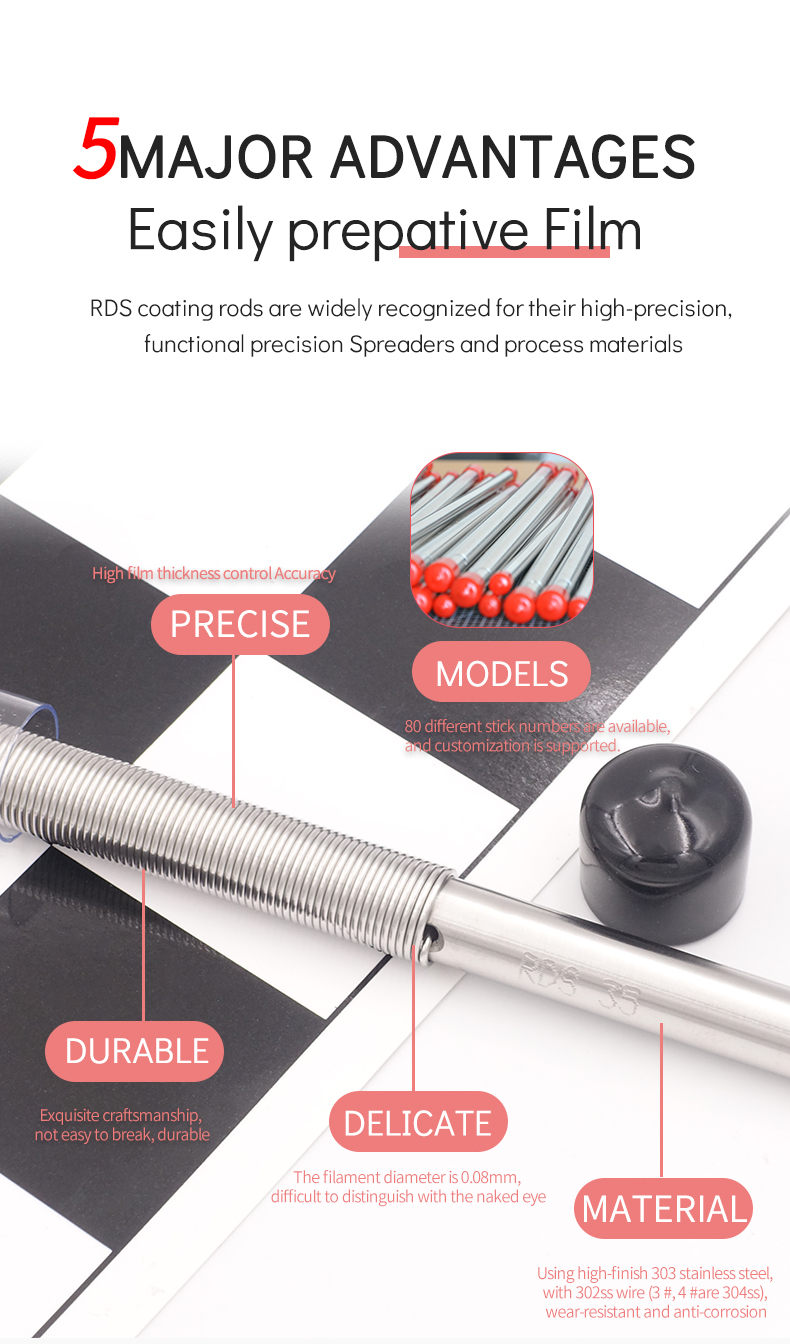

RDS coating Rods Figure 3

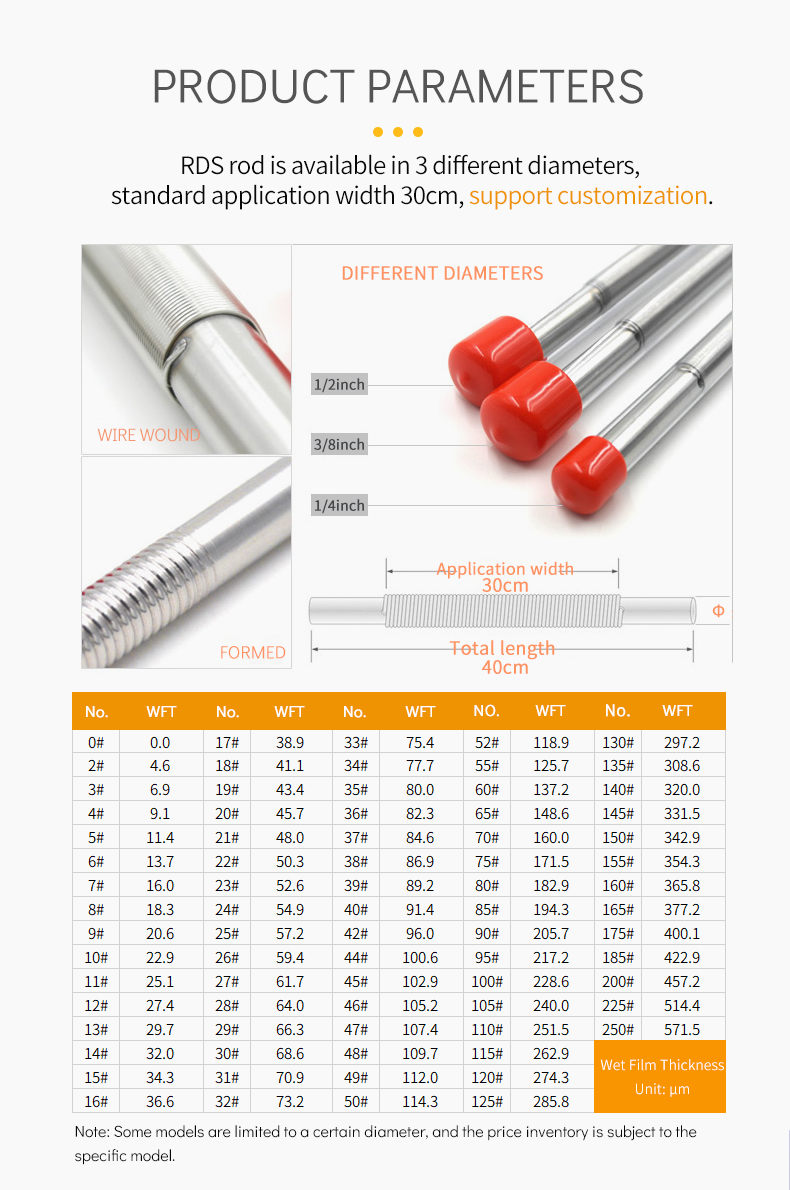

RDS coating Rods Figure 4

RDS coating Rods Figure 5

RDS coating Rods Figure 6

RDS coating Rods Figure 7

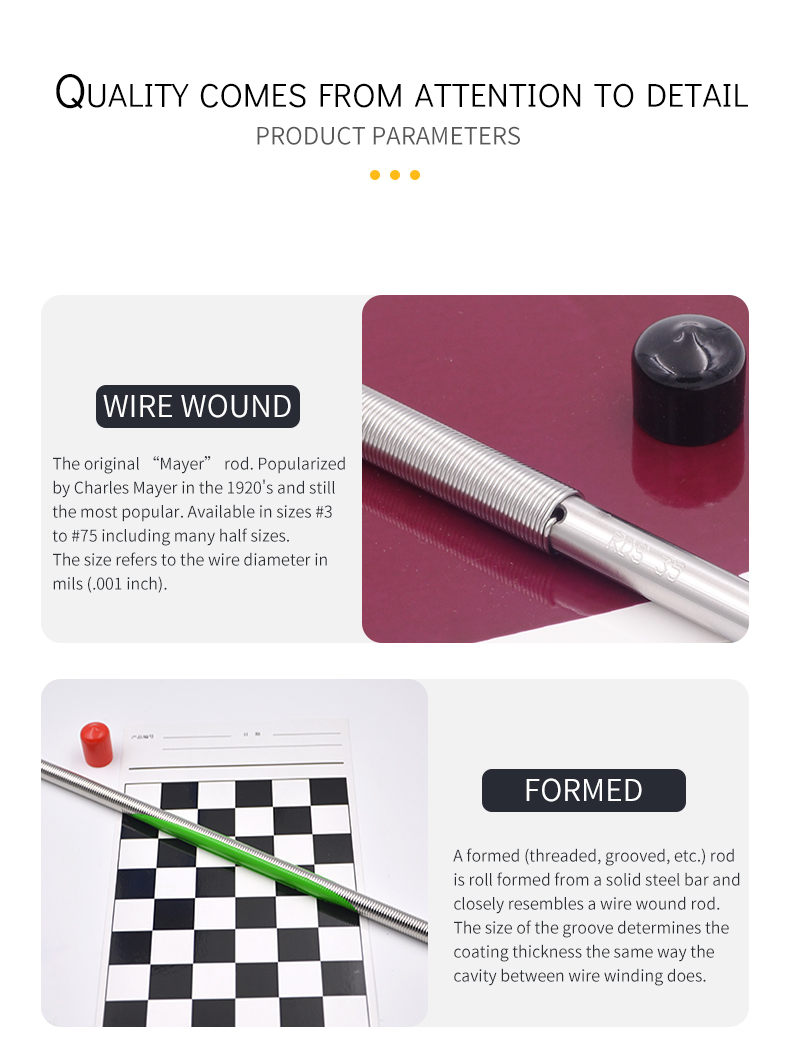

RDS coating Rods Figure 8

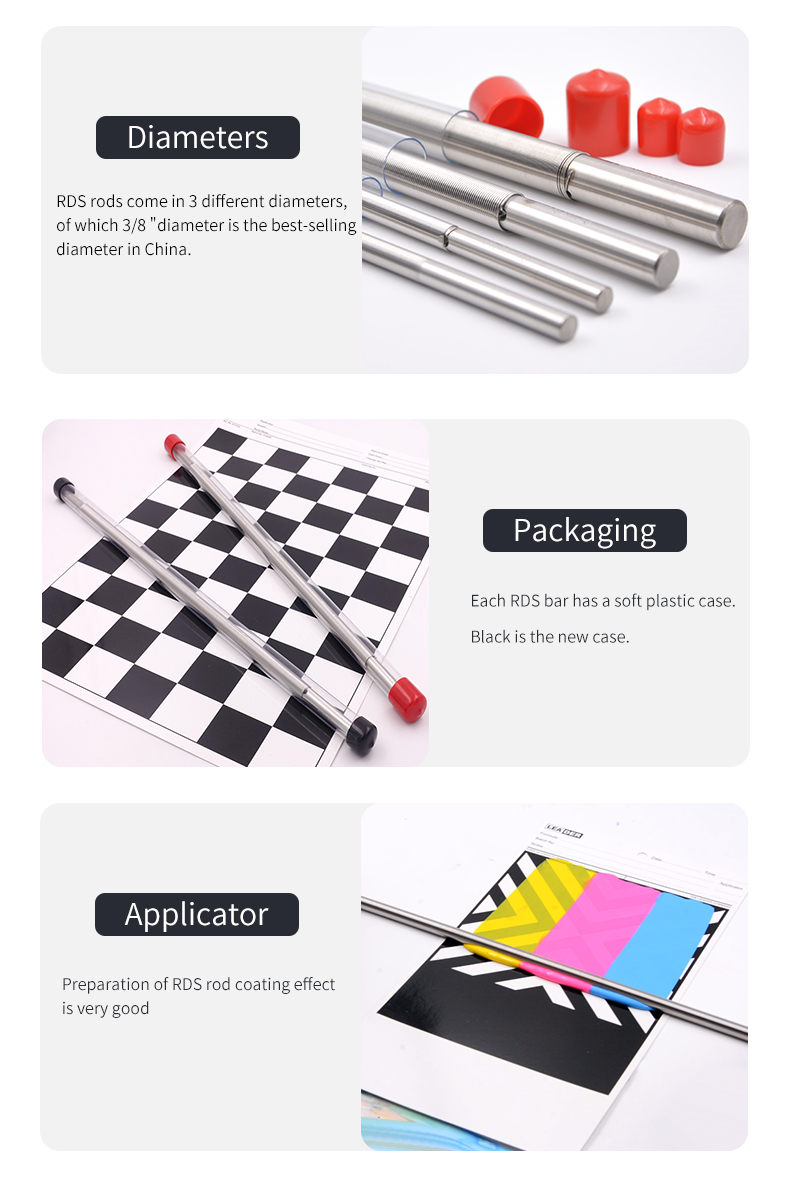

RDS coating Rods Figure 9

RDS coating Rods Figure 10



FAQ
QHow thick is the 20 #film?
A The film thickness is 45.7μm.
QIs the Spreader effect different for RDS20 #3/8 "and RDS20 #1/4"?
A Hello, it's the same, the film Film thickness is 45.7 microns.
QDoes the RDS No. 20 rod have a molding process?
A Hello, yes.
QHow much is the price of RDS 20 #3/8 "Applicator rod, and is there a discount for buying more?
A Hello, the price of the wire rods in our NBchao. Com Mall can be directly checked on the page. If the purchase volume of Mayer Rods is large, there are discounts. The specific discounts are subject to the presentation on the mall page. Thank you for your consultation!
QDo you support customization? Such as wet film thickness and length?
A Spreader rod length and main rod diameter support customization, but wet film thickness RDS has provided dozens of specifications covering more than 200 microns, and in principle does not accept customization.
QIs this stick silk thin? I have one that says 20. Do you have a size 20?
A Hello, there is a No. 20 rod. The thickness of the steel wire of different models of wire rods is different. The smaller the rod number, the thinner the wire.
QApplicator rod conforms to GB/T13217.7 standard?
A Applicator rod is suitable for GB/T13217.7, please consult customer service for detailed application definition
QHow many grams of glue can RDS20 Spreader produce?
A Hello, the relationship between wet film thickness and the sample Density, solid content and Spreader amount you want to Spreader can be referred to http://tool.nbchao.com/mohou backwards. Since we don't know the solid content and Density of your test sample, we can't give you a clear value here. If you have any questions, you can consult customer service.
QIs the Film thickness fixed after the paint bar is finished?
A Hello, the default wet film thickness of Spreader is certain, and the thickness of dry film is related to your solid content. Different fluid dry films are different. Thank you for your consultation.
