YIHENG DHG-9620A Desktop Forced Air Drying Oven temperature control: 10~200 ℃ Volume 620L
YiHeng Drying ovenSPEC
YiHeng Drying ovenDetails
YiHeng Drying ovenPacking list
- SKU
- NB018108
- Temperature range
- RT+10~200℃
- Temperature Fluctuation
- ±1.0℃
- Temperature Resolution
- 0.1℃
- Temperature Uniformity
- ±3%
- Volume
- 620L
- Interior size
- 840*600*1355mm
- Chamber material
- stainless steel
- Shelves (max)
- 4pcs
- Timer
- 0~9999min
- Power supply Voltage
- AC220V 50HZ
- Input Power
- 4000W
- Environmental temperature
- 20℃
- Environmental humidity
- 50%RH
- Dimensions
- 980*800*1880mm
- Net Weight
- 185kg
- Gross Weight
- 260Kg
- Packing size
- 1100*920*1990mm
Introduction
Yiheng DHG-9620A Forced Air Drying Oven is a product produced by professional laser and CNC machining equipment, which is used for drying, baking, wax melting and sterilization in industrial and mining enterprises, laboratories and scientific research units.
Features
● The inside of the box is made of mirror stainless steel argon arc welding, and the outside of the box is made of good steel plate, which is beautiful and novel in appearance.
● Microcomputer P.I.D. temperature controller with over-temperature deviation protection and digital display is adopted, with timing function, and the temperature control is accurate and reliable.
● The hot air circulation system is composed of a fan that can run continuously at high temperature and a suitable air duct to improve the temperature uniformity in the studio.
● The new synthetic silicon sealing strip is adopted, which can operate at high temperature for a long time, has a long service life and is easy to replace.
● The air intake and exhaust volume in the box can be adjusted from the temperature control panel.
● Independent temperature limit alarm system, automatic interruption when the limit temperature is exceeded, to ensure the safe operation of the experiment without accidents. (Optional)
● It can be equipped with a printer or RS485 interface, which is used to connect to a printer or computer, and can record the change of temperature parameters. (Optional)

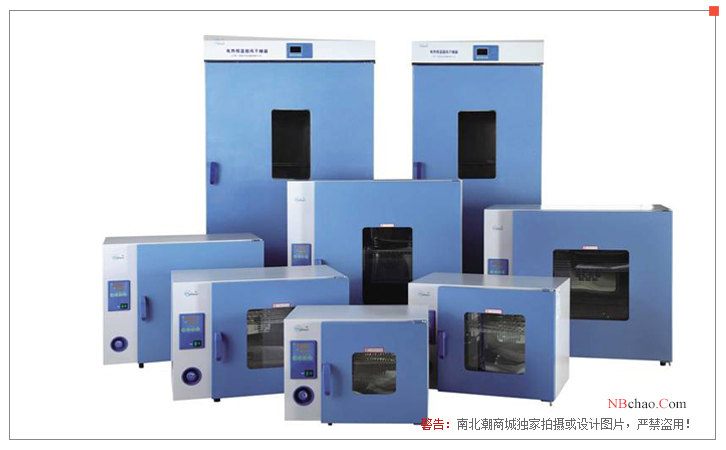

Product display
Options
1. Multi-segment programmable liquid crystal temperature controller
2. Independent temperature limiting controller
3. RS485 interface and communication software
4. Embedded printer
5. Diameter Ф25mm test hole
6. U disk data storage
7. Wireless alarm system (SMS alarm system)
