RK K101.10.0 coater special rod No. 0 WFT 4μm

SE
UK RK coater special wire rod K101.10.0 is a white handle 0 wire rod, dedicated to KPA101 coater, K101.10.0 Spreader wet film thickness of 4 microns, rod long tail 410mm.
$189.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT OI
Similar products

RK K101.10.0 Wire rodSPEC

RK K101.10.0 Wire rodDetails

RK K101.10.0 Wire rodPacking list

SKU
NB018131
Production process
Wire-wound
WFT
4μm
diameter
9.5mm
Total length
420mm
Wire diameter
0.05mm
Application width
220mm
material
stainless steel
K101.10.0
Wire rod

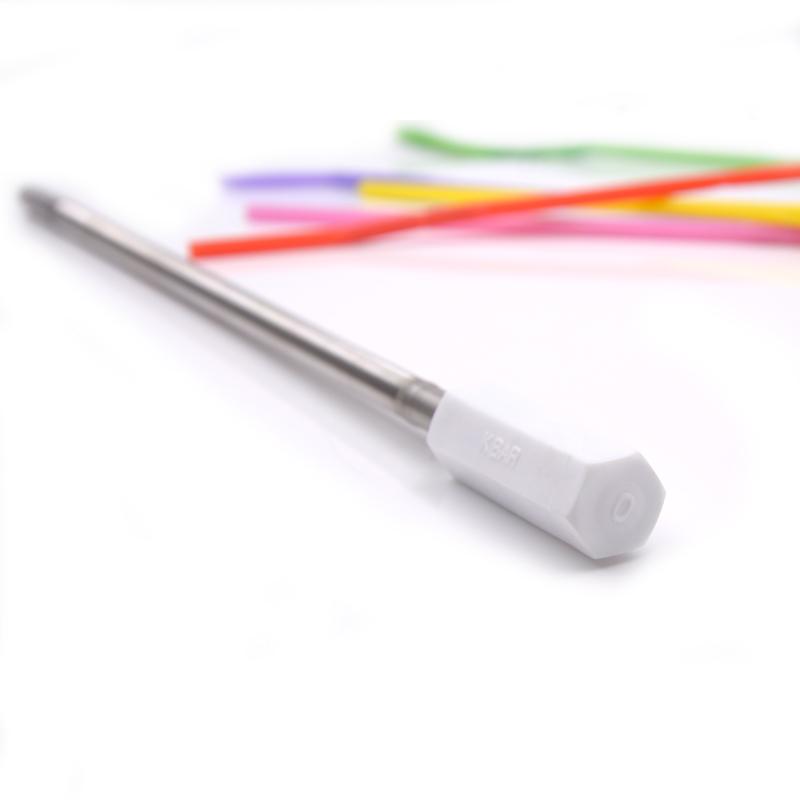

RK K101.10.0 coater special rod No. 0 WFT 4μm Picture

Introduction

RK wire rods are used to apply precise, repeatable surface coatings to most substrates. Rice bars are manufactured by winding precision drawn stainless steel wire onto a stainless steel rod, creating a pattern of identically shaped grooves, with the wet film thickness accurately controlled by the size of these grooves. The closed wound rod can apply coating thicknesses from 4 to 120 μm. Spiral wound wire rods can be applied with higher thickness coatings up to 500μm.

British RK coating machine special wire bar K101.10.0

Wire rod size chart

Dimensional drawing of K101.10 special wire rod for coating machine

plan

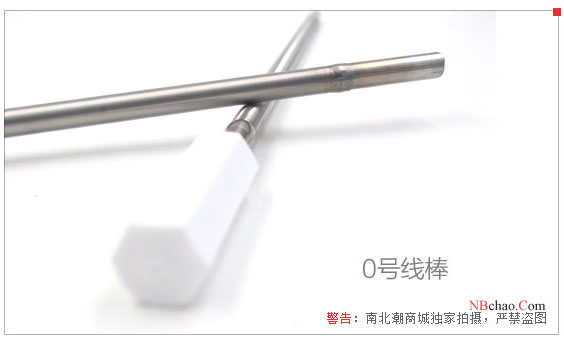

British RK coating machine special wire bar K101.10.0 display picture

Optional

Wire rod cleaning machine

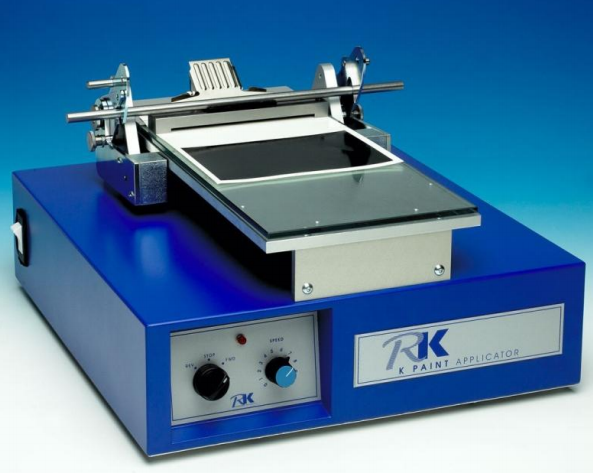

Laboratory automatic coating machine

Coating film test paperRK imprinting bed

Note: Click on the accessory image to view product details.

FAQ
QWhich model of Spreader is this coater rod used by UK RK?
A Hello, this is for KPA101 Spreader film.
QIs there a GB/T13217.1 standard wire rod?
A This RK cable stick is fine!
QCan this coating rod be prepative of multi-layer ultra-thin film?
A The wire rod can be prepared for 1.5 micron ultra-thin film. Everyone must know it, but another advantage of it is multi-layer film, which is much better than I-shaped film applicator. But multi-layer film tests the flatness of the previous layers of film drying. Generally, the film thickness (such as less than 10 microns/layer) is too thin to control. The wire rod with Film Applicator is a very good solution, eliminating the problem of uneven pressure and speed of hand scraping.
