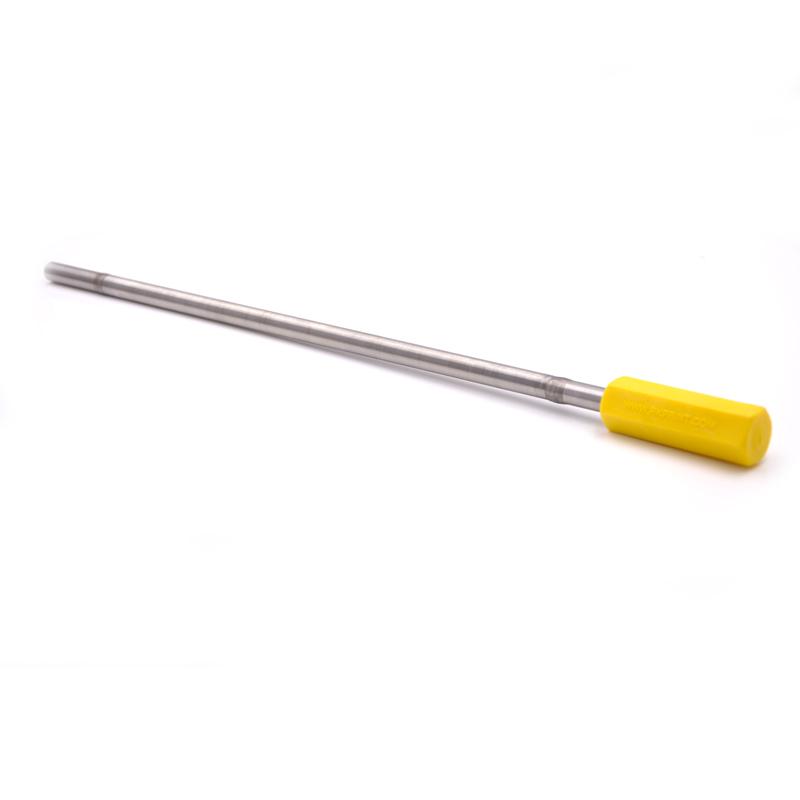

RK K202.10.1 No. 1 wire rod K202 coater special WFT 6μm

UK RK1 wire rod K202.10.1 is a special wire rod for K202 coater, the handle is yellow, K202.10.1 Spreader wet film thickness is 6 microns, Wire diameter is 0.08mm, Total length is 56cm.

$176.00/piece

PromotionLoading...

Coupon

Model：

K202.10.1

Certificate

Contact

Details SPEC Con CAT

RK K202.10.1 Wire rodSPEC

RK K202.10.1 Wire rodDetails

RK K202.10.1 Wire rodPacking list

SKU: NB018141

Production process: Wire-wound

WFT: 6μm

diameter: 9.5mm

Total length: 570mm

Wire diameter: 0.08mm

Application width: 365mm

material: stainless steel

K202.10.1

Wire rod

Introduction

RK wire rods are used to apply precise, repeatable surface coatings to most substrates. Rice bars are manufactured by winding precision drawn stainless steel wire onto a stainless steel rod, creating a pattern of identically shaped grooves, with the wet film thickness accurately controlled by the size of these grooves. The closed wound rod can apply coating thicknesses from 4 to 120 Î¼m. Spiral wound wire rods can be applied with higher thickness coatings up to 500Î¼m.

The British RK coater K202 has a coating area of ââ325x250mm. This coater wire bar is specially used for KPA coater.

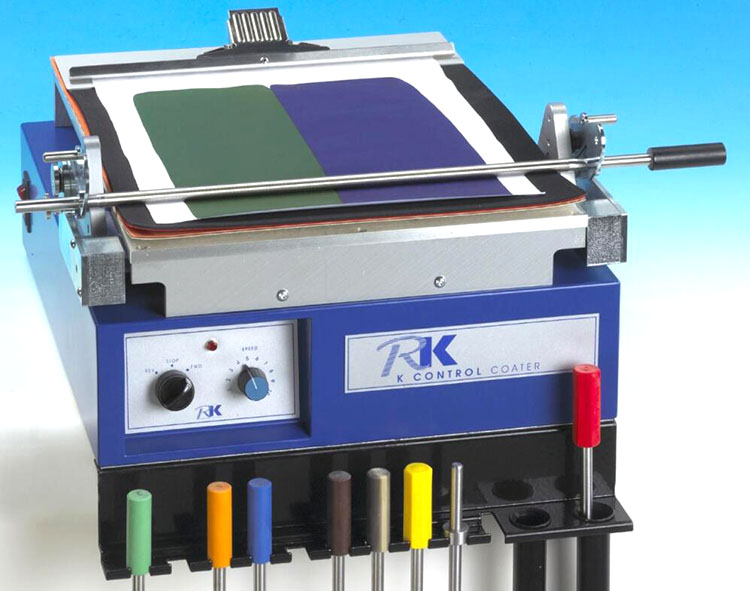

British RK1 wire rod K202.10.1 display picture

K202 coating machine wire bar dimensions

plan

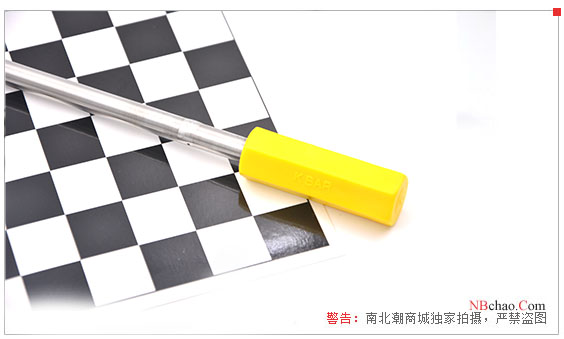

British RK1 wire rod K202.10.1 display picture

Optional

Note: Click on the accessory image to view product details.

FAQ

QFind a wire rod for GB/T13217.1

A This K202.10.1 cable stick is it.

QCan this coating rod be prepative of multi-layer ultra-thin film?

A The wire rod can be prepared for 1.5 micron ultra-thin film. Everyone must know it, but another advantage of it is multi-layer film, which is much better than I-shaped film applicator. But multi-layer film tests the flatness of the previous layers of film drying. Generally, the film thickness (such as less than 10 microns/layer) is too thin to control. The wire rod with Film Applicator is a very good solution, eliminating the problem of uneven pressure and speed of hand scraping.

QCan silicone coatings be applied to quartz Glass substrates?

A Yes, choose quartz Glass as the substrate, with Mayer Rods Coating prepared above coated on the surface of the treated quartz Glass substrate, at room temperature to evaporate the solvent into the oven, at a certain temperature curing film formation.
