RK K303.10.1 No. 1 coater wire rod K303 coater special film thickness 6μm

UK RK1 coater rod K303.10.1 is K303 coater special rod, yellow handle, film thickness is 6μm, K303.10.1 Wire diameter is 0.08mm, Total length is 58.5cm.

$192.00/piece

PromotionLoading...

Coupon

Model：

K303.10.1

Certificate

Contact

Details SPEC Con

RK K303.10.1 Wire rodSPEC

RK K303.10.1 Wire rodDetails

RK K303.10.1 Wire rodPacking list

SKU: NB018156

Production process: Wire-wound

WFT: 6μm

diameter: 12.7mm

Total length: 585mm

Wire diameter: 0.08mm

Application width: 420mm

material: stainless steel

K303.10.1

Wire rod

Introduction

RK wire rods are used to apply precise, repeatable surface coatings to most substrates. Rice bars are manufactured by winding precision drawn stainless steel wire onto a stainless steel rod, creating a pattern of identically shaped grooves, with the wet film thickness accurately controlled by the size of these grooves. The closed wound rod can apply coating thicknesses from 4 to 120 Î¼m. Spiral wound wire rods can be applied with higher thickness coatings up to 500Î¼m.

The British RK coater K303 has a coating area of ââ700x420mm. This coater wire bar is specially used for the K303 coater.

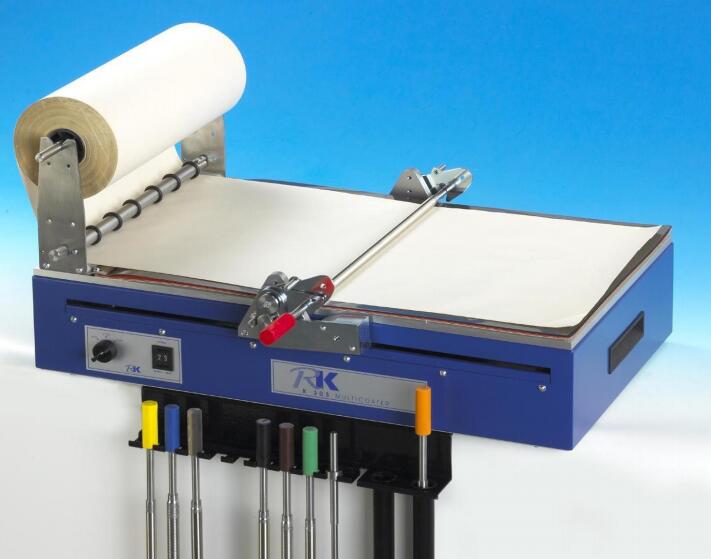

British RK1 coating machine wire bar K303.10.1 with coating machine display

K303 coating machine wire bar dimensions

plan

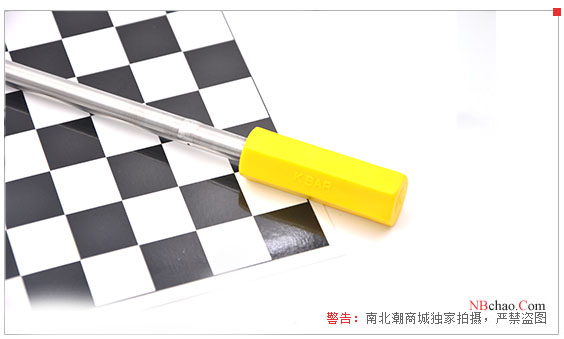

British RK1 coating machine wire rod K303.10.1 display picture

Optional

Note: Click on the accessory image to view product details.

FAQ

QCan the RKK303.10.1 cable stick meet the GB/T13217.1 standard?

A Applicable, you can consult the customer service of the mall for details about the GB/T13217.1 standard.

QCan this coating rod be prepative of multi-layer ultra-thin film?

A The wire rod can be prepared for 1.5 micron ultra-thin film. Everyone must know it, but another advantage of it is multi-layer film, which is much better than I-shaped film applicator. But multi-layer film tests the flatness of the previous layers of film drying. Generally, the film thickness (such as less than 10 microns/layer) is too thin to control. The wire rod with Film Applicator is a very good solution, eliminating the problem of uneven pressure and speed of hand scraping.

QCan silicone coatings be applied to quartz Glass substrates?

A Yes, choose quartz Glass as the substrate, with Mayer Rods Coating prepared above coated on the surface of the treated quartz Glass substrate, at room temperature to evaporate the solvent into the oven, at a certain temperature curing film formation.
