RK K303.10.0 coater rod K303 coater special film thickness 4μm

SE
UK RK0 coater rod K303.10.0 is K303 coater special rod, yellow handle, film thickness is 4μm, K303.10.0 Wire diameter is 0.05mm, Total length is 58.5cm.
$204.00/piece
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con
Similar products

RK K303.10.0 Wire rodSPEC

RK K303.10.0 Wire rodDetails

RK K303.10.0 Wire rodPacking list

SKU
NB018157
Production process
Wire-wound
WFT
4μm
diameter
12.7mm
Total length
585mm
Wire diameter
0.05mm
material
stainless steel
K303.10.0
Wire rod

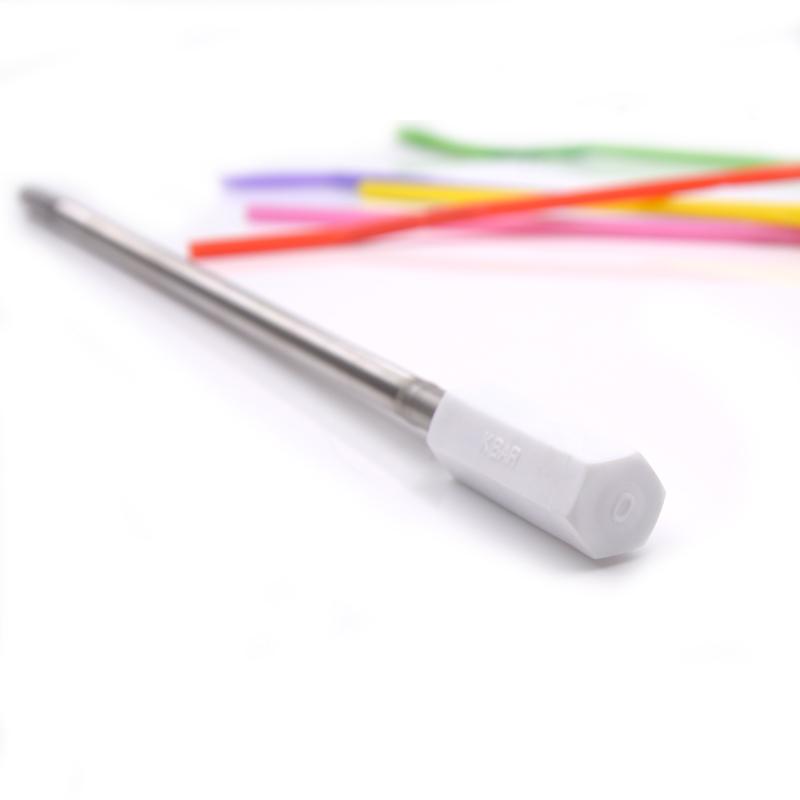

RK K303.10.0 coater rod K303 coater special film thickness 4μm Picture

Introduction

RK wire rods are used to apply precise, repeatable surface coatings to most substrates. Rice bars are manufactured by winding precision drawn stainless steel wire onto a stainless steel rod, creating a pattern of identically shaped grooves, with the wet film thickness accurately controlled by the size of these grooves. The closed wound rod can apply coating thicknesses from 4 to 120 μm. Spiral wound wire rods can be applied with higher thickness coatings up to 500μm.

The British RK coater K303 has a coating area of ​​700x420mm. This coater wire bar is specially used for the K303 coater.

British RK0 coating machine wire bar K303.10.0 with coating machine display

K303 coating machine wire bar dimensions

K303 coating machine wire bar dimensions

plan

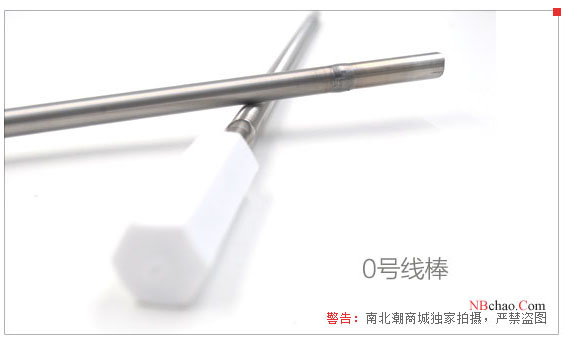

British RK0 coating machine wire bar K303.10.0 display picture

Optional

Wire rod cleaning machine

Laboratory automatic coating machine

Coating film test paperRK imprinting bed

Note: Click on the accessory image to view product details.

FAQ
QCan this rod be used to scrape glue with high viscosity?
A Hello, if you want to use it for gluing, there may be scratches on the wire rod. It is recommended to use Film Applicator.
QDoes this wire rod comply with GB/T13217.7 standard?
A This rod is suitable for GB/T13217.7. Please consult customer service for detailed application definition.
QCan this coating rod be prepative of multi-layer ultra-thin film?
A The wire rod can be prepared for 1.5 micron ultra-thin film. Everyone must know it, but another advantage of it is multi-layer film, which is much better than I-shaped film applicator. But multi-layer film tests the flatness of the previous layers of film drying. Generally, the film thickness (such as less than 10 microns/layer) is too thin to control. The wire rod with Film Applicator is a very good solution, eliminating the problem of uneven pressure and speed of hand scraping.
