YONGLIDA QCJ-120 Film Impact Device 120cm/1000g GB/T1732

SE
Impact height 120cm, sub-scale 1cm, drop weight mass 1000g, Striker Diameter φ 8mm, Impact depth 2mm, die base aperture φ 15mm, curvature radius R2.5~ 3mm, meet the standard GB/T 1732
$335.00/set
PromotionLoading...
Coupon
Model：
Certificate
Contact
Details SPEC Con CAT
Similar products

YongLiDa QCJ-120 Film Impact DeviceSPEC

YongLiDa QCJ-120 Film Impact DeviceDetails

YongLiDa QCJ-120 Film Impact DevicePacking list

SKU
NB018166
Impact height
120cm
Graduation
1cm
Drop Weight Mass
1000g
Striker Diameter
F8mm
Impact depth
2mm
die base aperture
F15mm
radius of curvature
R2.5~3mm
Standards
GB/T 1732-1993
QCJ-120
Film Impact Device
Impact height 120cm, sub-scale 1cm, drop weight mass 1000g, Striker Diameter φ 8mm, Impact depth 2mm, die base aperture φ 15mm, curvature radius R2.5~ 3mm, meet the standard GB/T 1732

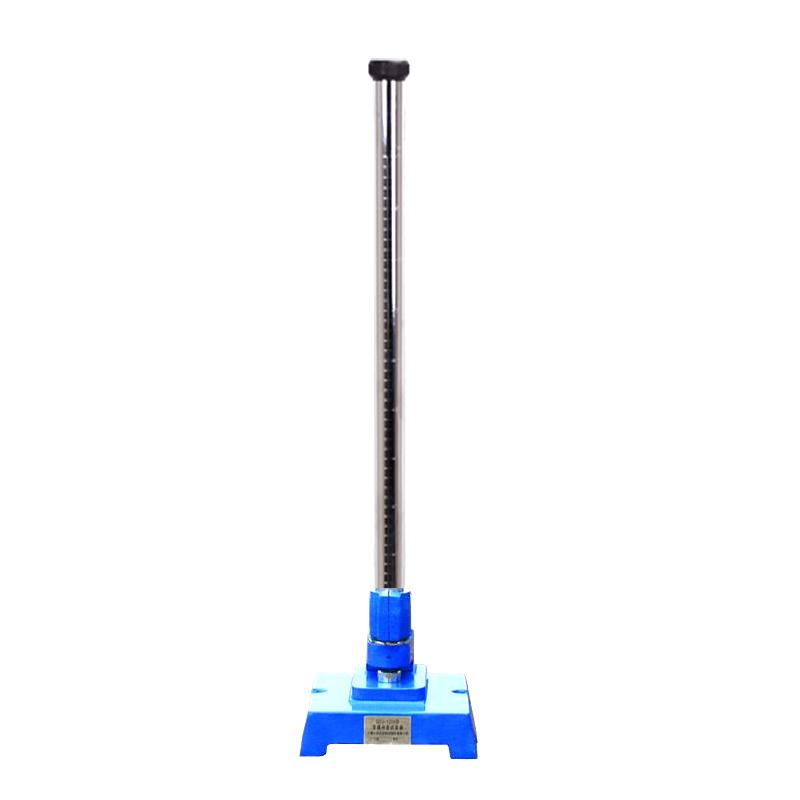

YONGLIDA QCJ-120 Film Impact Device 120cm/1000g GB/T1732 Picture

Introduction

The QCJ-120 (120A, 1208) series paint film impactor is used for the impact resistance test of the film coating, which is represented by the maximum height of 120 cm when the weight of a fixed mass falls on the test plate without causing damage to the paint film. After the impact head of this instrument impacts the type plate, there is no secondary rebound phenomenon.

Yonglida QCJ-120 paint film impactor display

application standard

Comply with GB/T1732-93 paint film impact resistance test method.

QCJ-120 series parameter comparison

modelQCJ-120QCJ-120AQCJ-120B
Instrument scale length120±0.2cm120±0.2cm120±0.2cm
graduation1cm1cm1cm
Hammer mass(1000±1) g(1000±1) g(2000±2) g
Impact head specificationsφ8mmsφ16mmsφ16mm
Pillow Block Hole Diameterφ15mmφ15mmφ16.3mm
radius of curvatureR2.5-3mmR2.5-3mmR2.5-3mm
Impact depth of impact head(2±0.1) mm(2.5±0.1)mm(2.5±0.1)mm
StandardsGB/T1732-93 Determination of impact resistance of paint filmGB/T5237.4-2000 Aluminum Alloy Architectural Profiles Part 4 Powder Coated ProfilesASTM D2794-92 Test Method for Resistance of Organic Coatings to Rapid Deformation (Impact) Effects


FAQ
QHow big is the impact head of this film impactor?
A Hello, the diameter of the impact head is 8mm.
QWhat are the impactors that meet the national standard GB/T 1732-2020?
A This one matches.
QDoes this film Impact comply with the SY/T0040 standard?
A This paint film Impact device is suitable for SY/T0040. Please consult customer service for detailed application definition.
